EzRun MAX4 HV 300A 6-12S Sensor WP Fartreglage 1/5

Hobbywing EzRun MAX4 HV 300A ESC 1/5 6-12S LiPo

• Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.

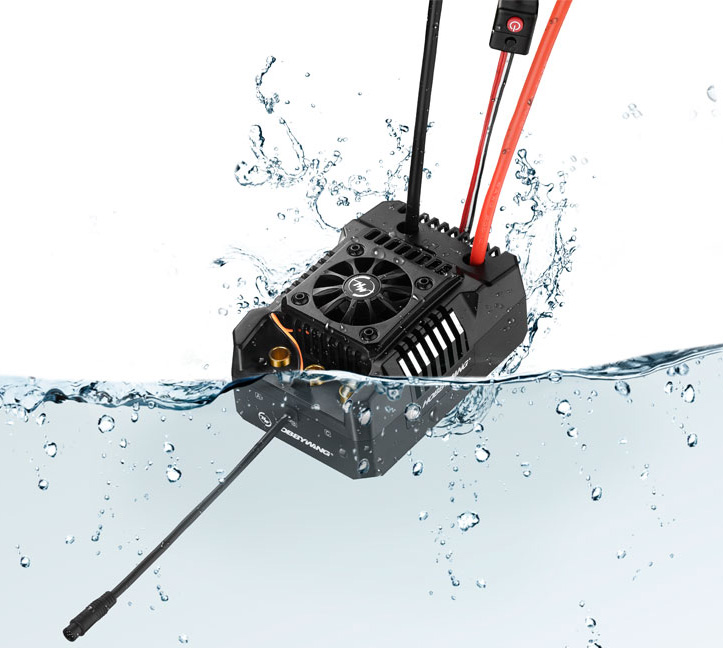

• Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevent dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
• Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
• Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
• Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.

• Type: 1/5, Brushless, Sensored & Waterproof Car ESC
• Cont./Peak Current: 300A/2000A
• Input Voltage: 6-12S Lipo
• BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
• Input Wires: 8AWG / 200mm
• Input Connectors: No
• Output Connectors: 8.0mm Gold (female)
• Fan Size: 50x50x15mm
• Fan Voltage Range: 6-8.4V
• Fan Powered by: BEC
• Size: 125x85x61.7mm
• Weight: 775.4g

• SET Button on ESC: Not Supported
• LED Program Box: Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: FAN/Program Port
• Firmware Upgrade: Supported

• Motors: Sensored brushless motors / Sensorless brushless motors
• Vehicles: 1/5 off-road, trucks (heavy loads)
• KV Rating/T Count: 12S LiPo: KV ≤ 600KV (70125 Size Motors)
