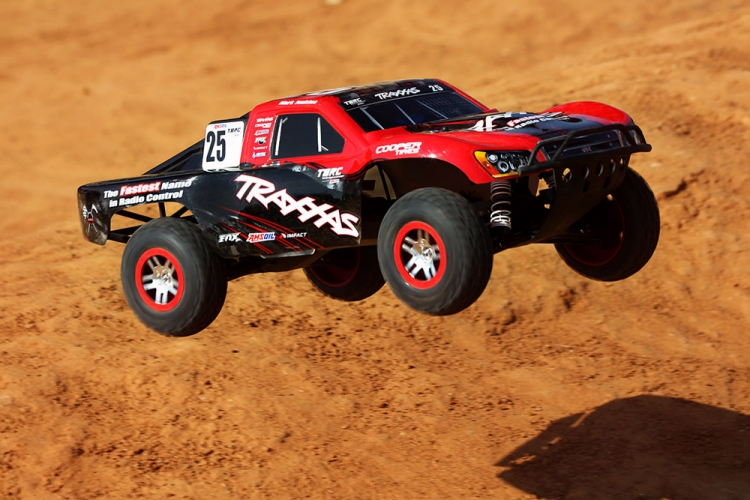

Slash 4x4 RTR TQi TSM* UTGÅTT

Short Course Performance on a Whole New Level with Traxxas Stability Management™!

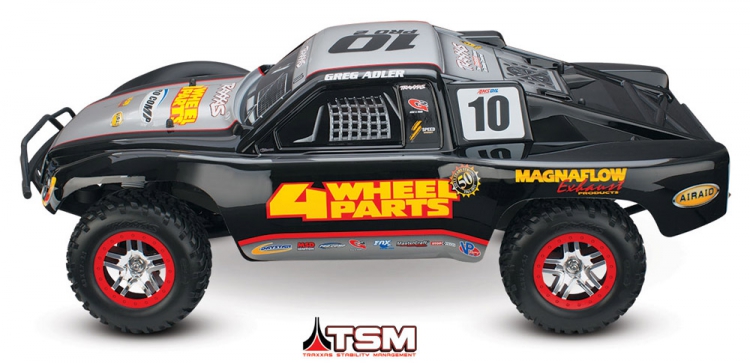

This Slash 4X4 is hard-loaded for ultimate performance with the new Traxxas Stability Management (TSM).

Traxxas Stability Management^TM (TSM) allows you to experience all the extreme power, speed, and acceleration that was engineered into the Slash 4X4 by making it much easier to control on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain your line, and then allowing you to hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep you arrow straight until you come to a complete stop. TSM acts as your on-board co-pilot in the vehicle that “feels” what the vehicle is doing and makes corrections for vehicle movements that you cannot even detect, well before the vehicle gets out of control.

Traxxas TSM gives you all the benefits modern electronic stabilization has to offer without intruding on your driving fun. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting your throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas link app. The result is that you are driving faster, with more ease, and having more fun,with that fully connected feeling at the controls that you expect. In fact, you may not even realize how much TSM is helping you until you turn it off and test your driving skills without it! (click here for more details)

Features	Traxxas Stability ManagementTM	Other Systems
Engineered to work seamlessly in the background
Unrestricted throttle control
Unrestricted turning radius
Arrow straight braking control to a complete stop
Allows user to adjust assistance or turn off during driving
Connected driver feel

TSM BENEFITS

• ­TSM makes Traxxas vehicles easier to drive, particularly on loose surfaces
• TSM makes driving more fun by allowing the driver to accelerate harder and drive faster with much greater control
• TSM works to stabilize vehicles over rough surfaces as the gyro effect of the spinning front tires continues to “steer” when the vehicle is in the air
• TSM dramatically improves braking performance, preventing the vehicle from spinning out
• TSM allows faster cornering speeds
• TSM never restricts throttle (or fun!)
• TSM allows the driver to accelerate harder when exiting a turn
• TSM works invisibly in the background
• The driver maintains their connected feel with the vehicle
• The amount of TSM assistance is fully adjustable
• TSM can be turned off or adjusted from the TQi Transmitter
• TSM is fully compatible with Traxxas Link
• TSM does not require any complicated set up or instructions

Class-Leading Brushless Power

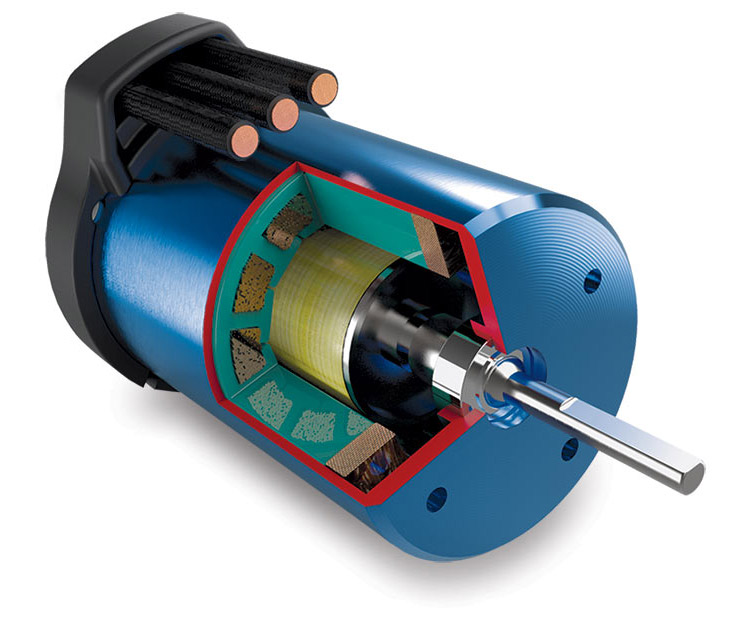

Slash 4X4's Traxxas Velineon Brushless Power system defines a whole new generation of outrageous electric power that doesn't know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the Slash 4X4's four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s Brushless Power System features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It's engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.

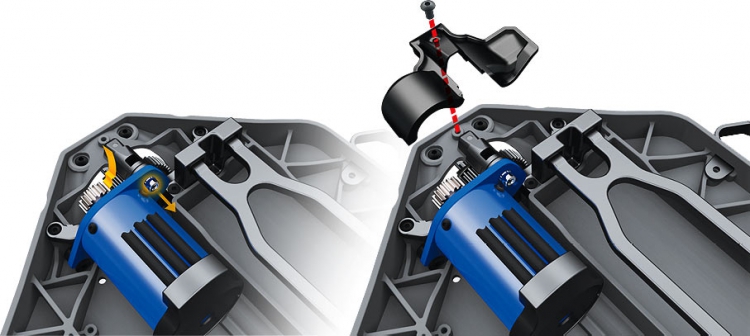

Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.

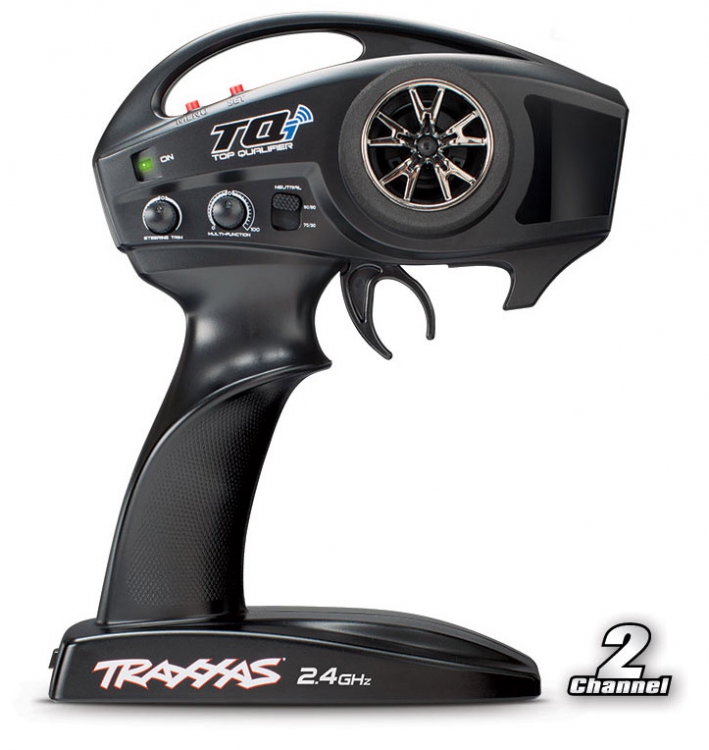

Precision 2.4GHz Control
Traxxas Slash 4X4 equipped with the world's most advanced Ready-To-Race® radio system. The all-new Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

SLASH 4X4 (#68086-3) SPECS

• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Center Ground Clearance: 72 mm
• Weight: 2.64 kg
• Height (overall): 7.60" (193 mm)
• Wheelbase: 12.75" (324 mm)

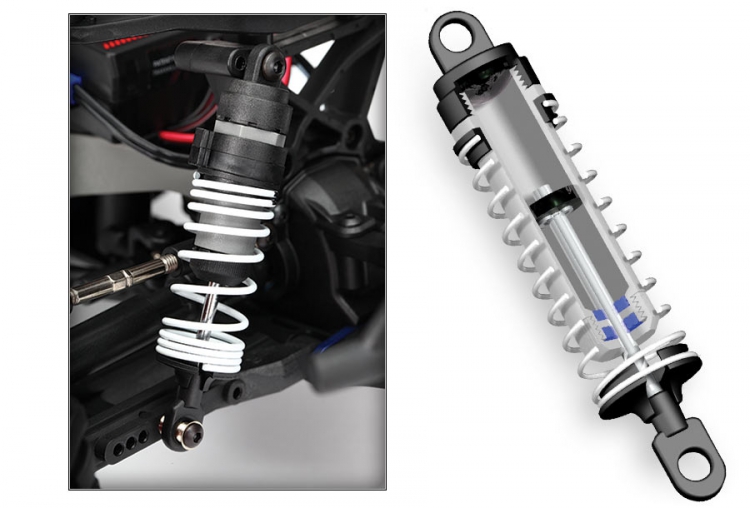

• Shock Length: Long (front), XXLong (rear)

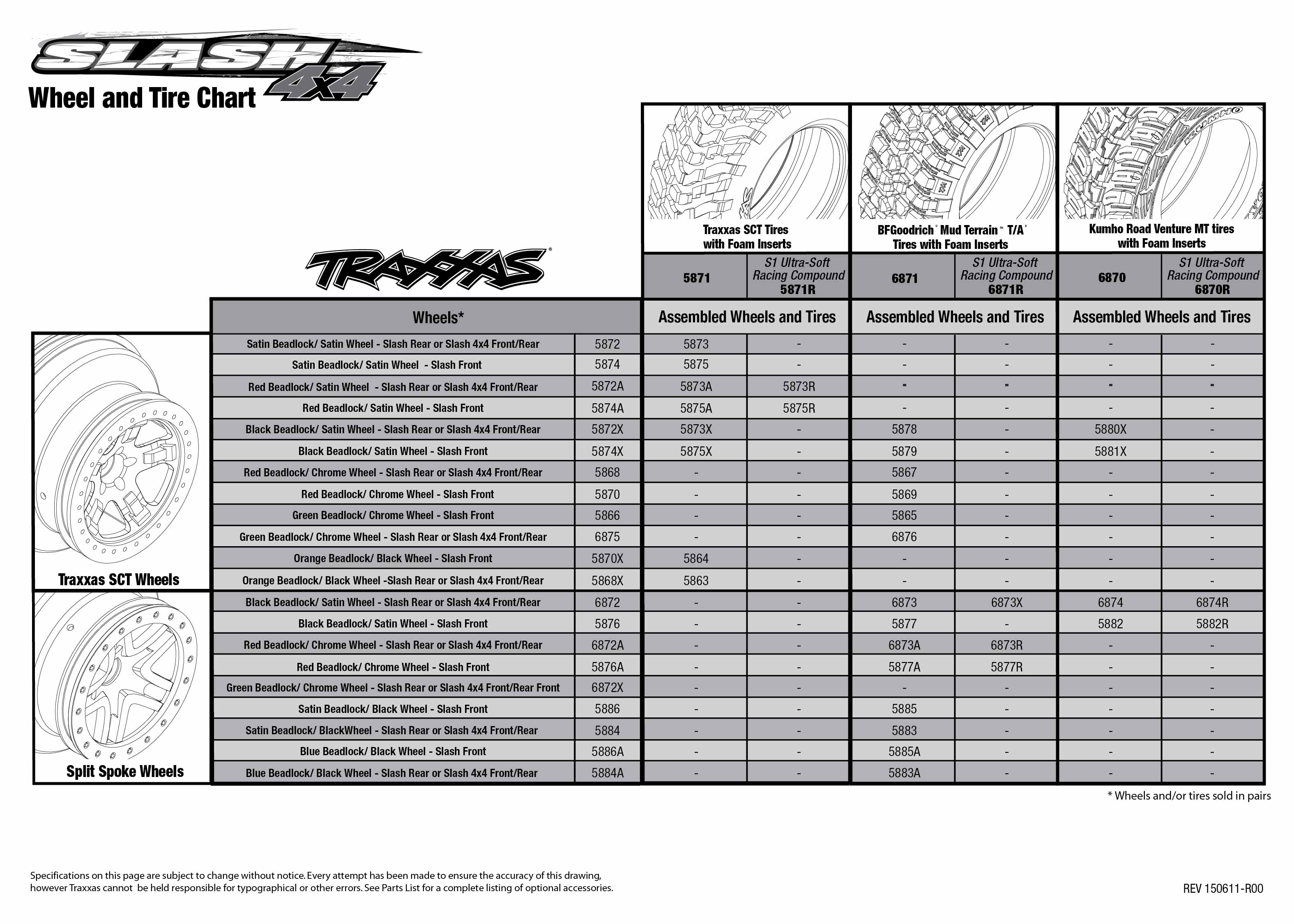

• Tires: Traxxas 2.2" Pre-Glued with Foam Inserts
• Tire Diameter: 4.31" (109.5 mm) (front and rear)

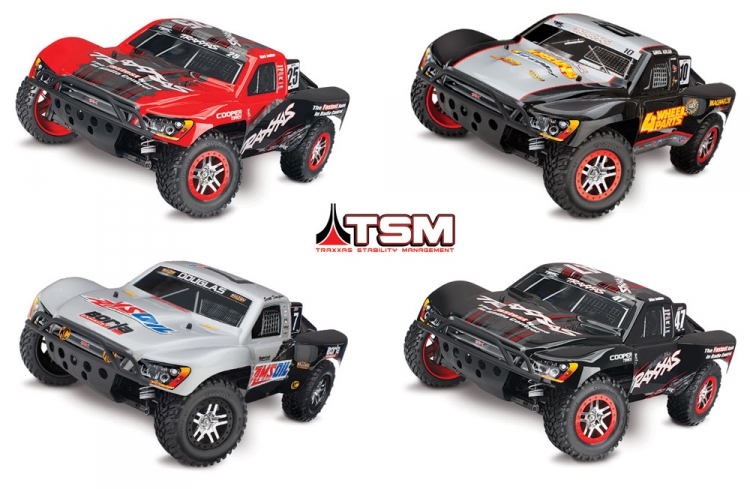

• Wheels (front/rear): 2.2" Split-Spoke, Black or Red Beadlock
• Wheel Diameter: 2.2" (56 mm) Outer / 3.0" (76 mm) Inner
• Speed Control Type: VXL-3s™
• Motor (electric): Velineon® 3500 Brushless
• Overall Drive Ratio: 11.82 (stock, out-of-box)

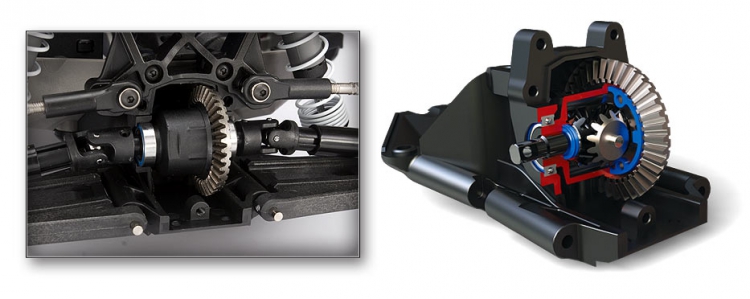

• Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
• Gear Pitch: 32P

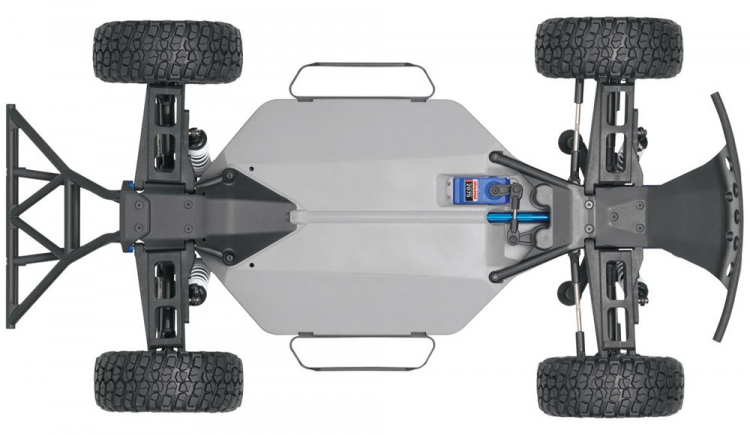

• Chassis Structure/Material: Molded Tub / Nylon Composite

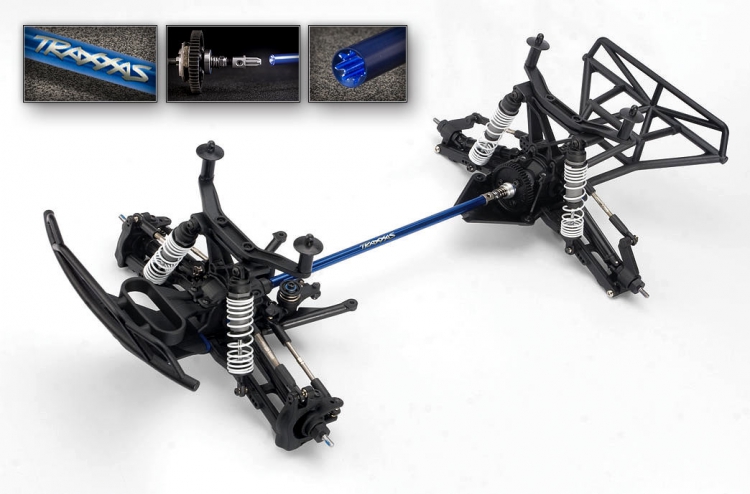

• Drive System: Shaft-Driven, Direct Drive 4WD

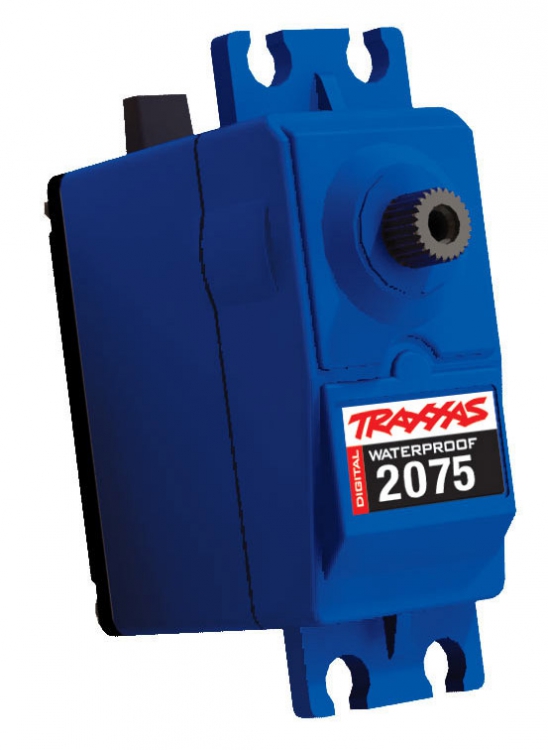

• Steering: Dual-Bellcrank with Integrated Servo Saver
• Radio System (transmitter): TQi™ 2.4GHz (2-channel)
• Radio System (receiver): Traxxas Stability Management™ (#6533)
• Top Speed: 112+kmh*
• Skill Level: 1

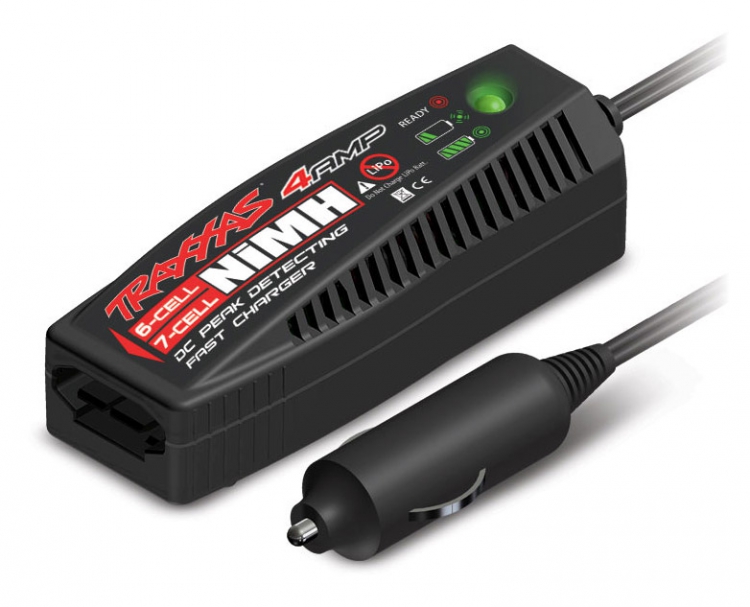

• Included Charger: Traxxas 4amp DC Peak Detecting Fast Charger

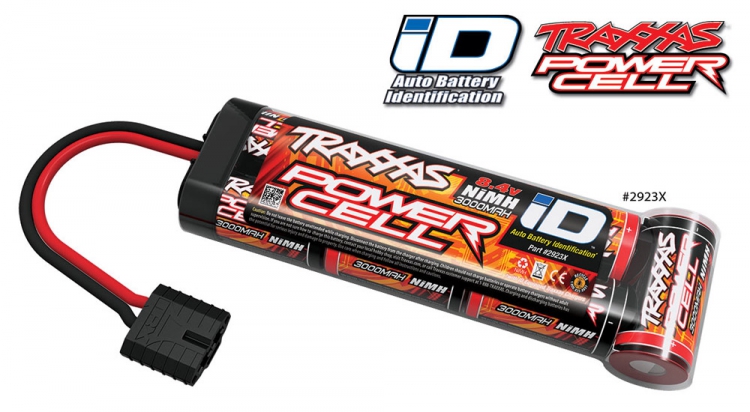

• Included Batteries: Traxxas 7-cell NiMH battery with iD™
• Included Accessories: Precision Tool Set
• Required Items: 4 "AA" Batteries (for transmitter)

*With optional gearing and 3S LiPo battery (items sold separately). 56+kmh stock.
