XeRun XR10 Pro Stock 1S V4 Fartreglage i gruppen Fabrikat / H / Hobbywing / Fartreglage Bil hos Minicars Hobby Distribution AB (HW30112751)
HOBBYWING
Ja

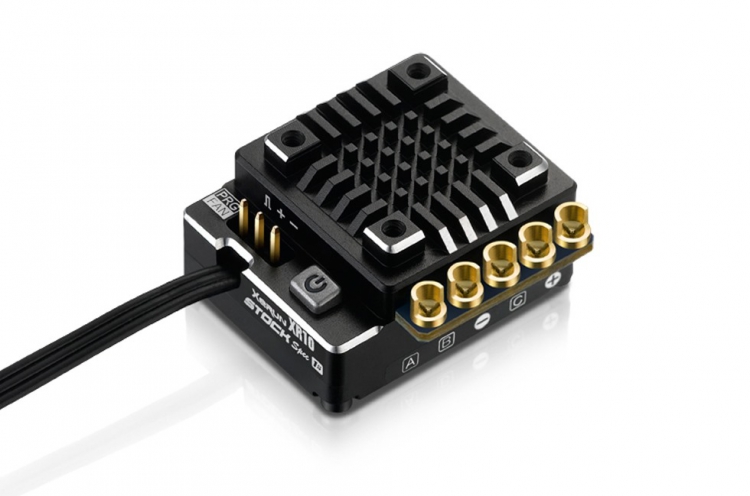

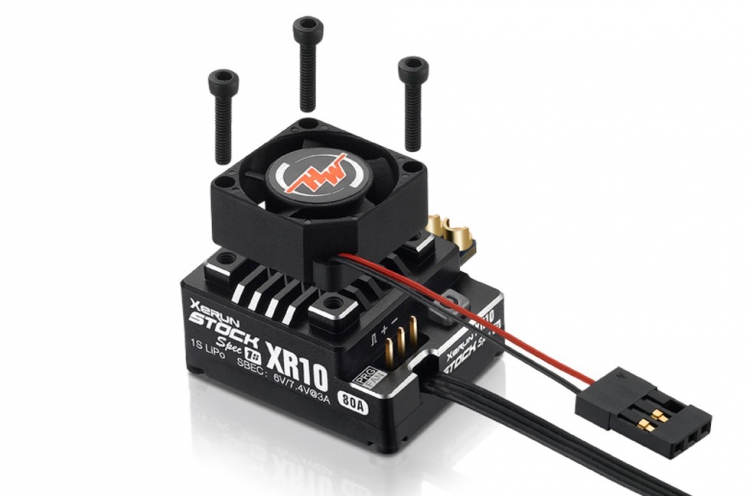

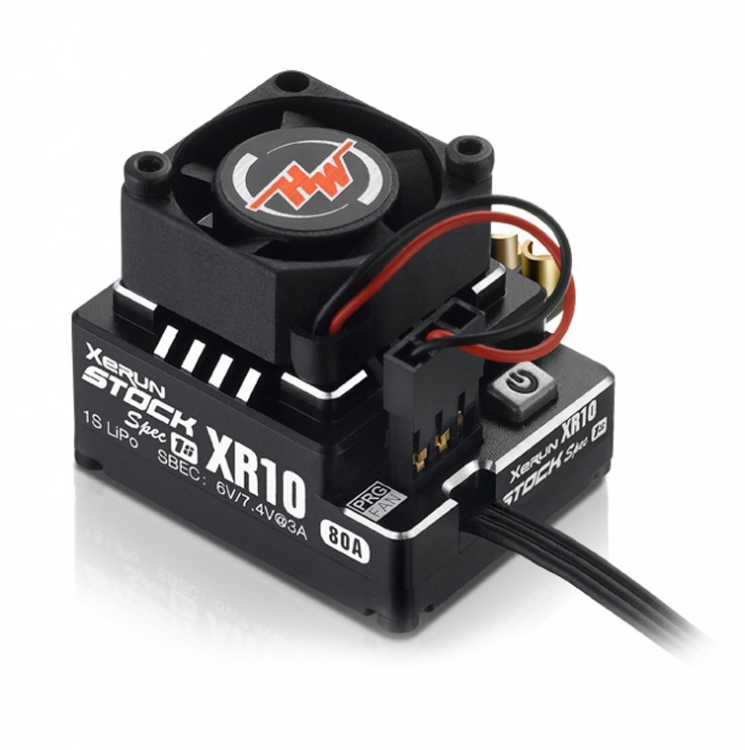

XeRun XR10 Pro Stock 1S V4 Fartreglage

Artnr:
HW30112751
Lev.artnr:
30112751(BLACK)
Lagersaldo:
7 st
Cirkapris: 1735 kr
  • Information

    • Small & Lightweight
      The small size (20% smaller than the standard version XeRun XR10 Pro 1S) saves space and the light weight (only 23.5g w/o wires) provides more weight margin when adjusting the balance of the chassis.

      Special Design for Stock 1S Class Racing
      The reliable hardware combined with powerful software (contains 5 common select-to-use profiles) provides an ideal power solution to the 1/10th , 1/12th Stock 1S class racing.

      Super Internal BEC
      The built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows users to use various, servos and receivers (without connecting any extra battery).

      Adjustable Throttle & Brake PWM Frequencies
      The independent and adjustable throttle & brake PWM frequencies guarantee users the precise and accurate throttle and brake control.

      Programming/Upgrading/Data Reading Wirelessly
      With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

      Built-in Electronic Switch
      The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.

      Data-logging Capability
      This ESC features the data-logging function which will record the maximum ESC& motor temperatures, the maximum motor RPM, and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.


      Specifications
      • Scale: 1/12th
      • Brushed/Brushless: BL
      • Sensored/Sensorless: SD
      • Waterproof: No
      • Cont./Peak Current: 80A/380A
      • Input Voltage: 1S Lipo/3-4 Cell NiMH
      • BEC Output: 6V/7.4V@3A


      Wires & Connectors

      • Input Wires: Black-14AWG-200mm*2
      • Output Wires: Black-14AWG-200mm*3
      • Input Connectors: No
      • Output Connectors: No

      (Note: All the wire length above is the original length not the length you see from the outside.)


      ESC Programing via

      • SET Button on ESC: Not Supported
      • LED Program Box: Not Supported
      • LCD Program Box: Supported
      • WiFi Module: Supported
      • Programming: Separate Programming


      Firmware

      • Firmware Upgrade: Supported


      Size & Weight

      • Size: 31.6x25.8x16.2mm
      • Weight: 23.5g (w/o Wires)


      Applications

      • Motors: SL BL Motors, SD BL Motors

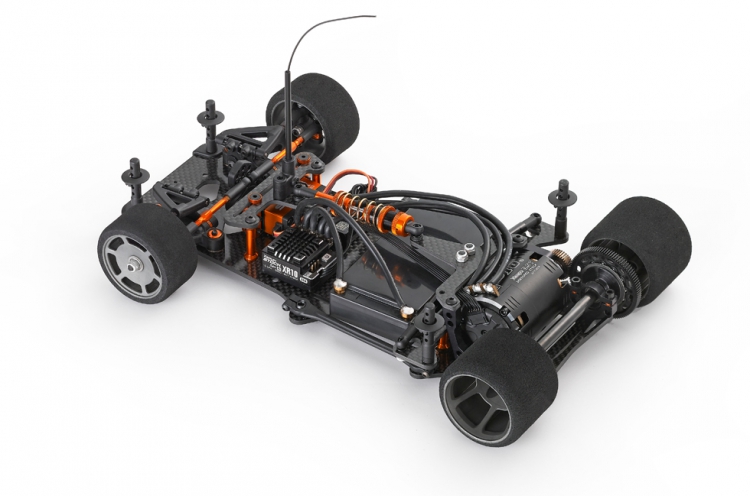

      • Vehicles: Stock 1S class of 1/10th & 1/12th on-road racing.
      • KV Rating/T Count: ≥10.5T, 3650-size Motor
      Click here to look at FAQ and Software Updates for XR10 Pro Stock 1S V4
