KingFisher 1440mm med flottörer & Skidor Reflex V2-Gyro PNP

FMS 103PF-REFV2 - 1400mm Kingfisher PNP Reflex V2 Gyro (including Oversized Wheels, Floats, Skis and Flaps)

Following the successful debut of Super EZ V2, FMS is thrilled to announce the release of a brand new multi-role trainer - The FMS 1400mm Kingfisher!



With simple assembly, ease of control and stability in performance, the Kingfisher is perfect for beginners. With the beginner pilot in mind, FMS’s Kingfisher is the ultimate user-friendly plane! Assembly is easy with a super convenient bolt-type structure used on the wings, stabilizers, battery cover, and supporting struts. Minimal usage of screws ensure that the beginner pilot completes assembly quickly and safely. Less assembly time = more flying time! With three sets of landing gears included, the Kingfisher can handle any landing environment! Oversize wheel set for grass fields and gravel roads, float set for water landings and skis for snow and ice landings. The Kingfisher is easily upgradable with optional electric towing hook for banners and gliders. FPV equipment bay ready! DO NOT miss this revolutionary multipurpose trainer. The Kingfish is ONE plane with endless potential! Enjoy the flight!

Key Features:

• Now with Reflex V2 Gyro Stabilization!
• High quality Predator 40A ESC, 3536-KV850 motor, recommended 11.1V 2200mAh 35C battery

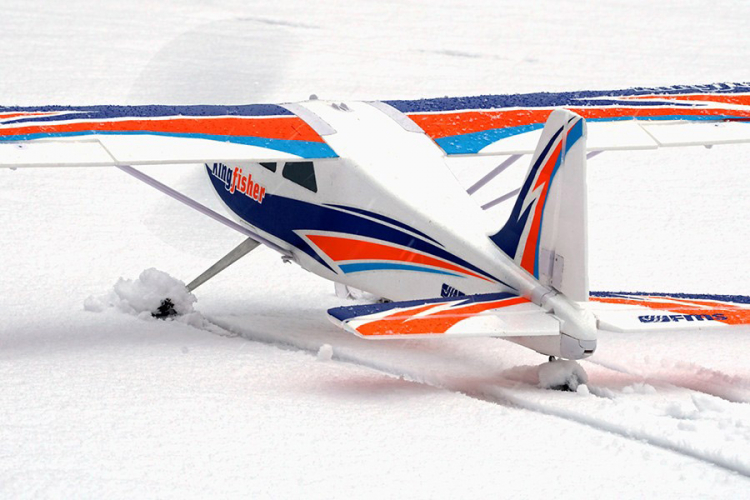

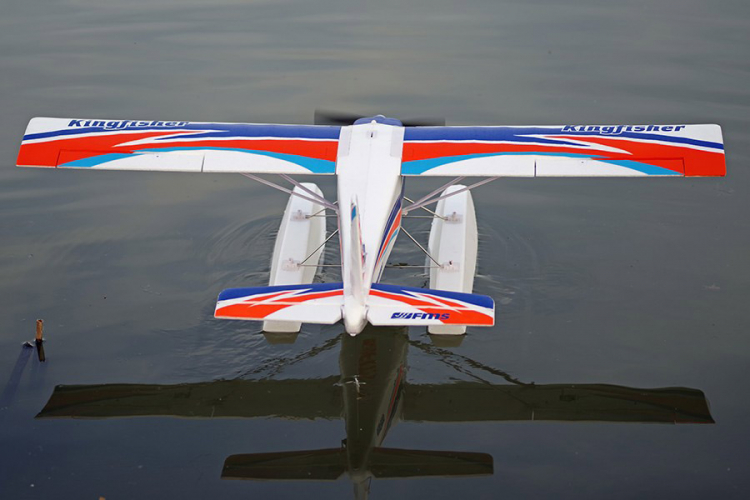

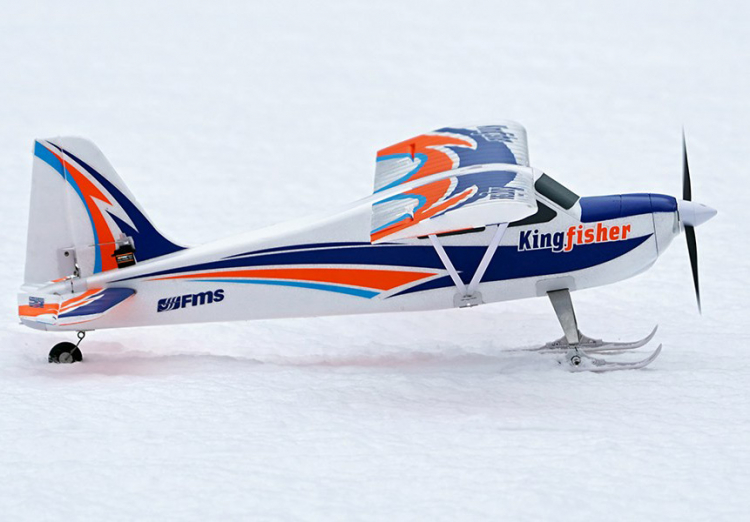

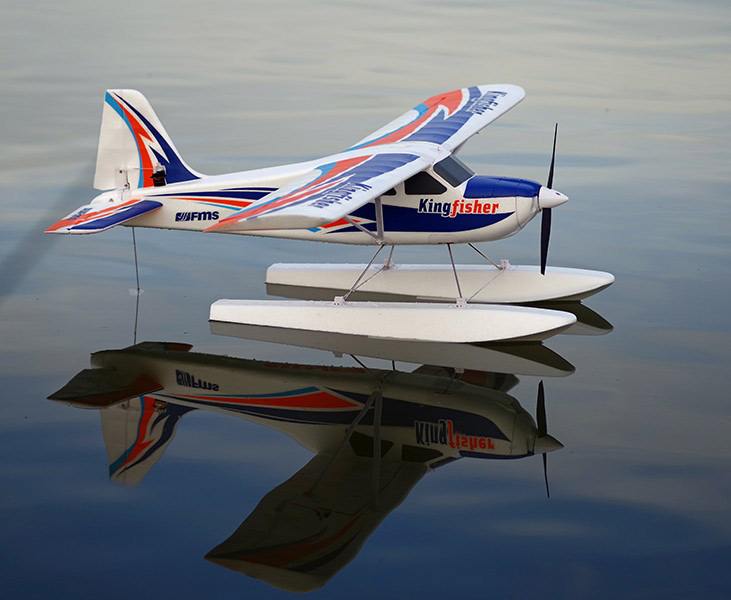

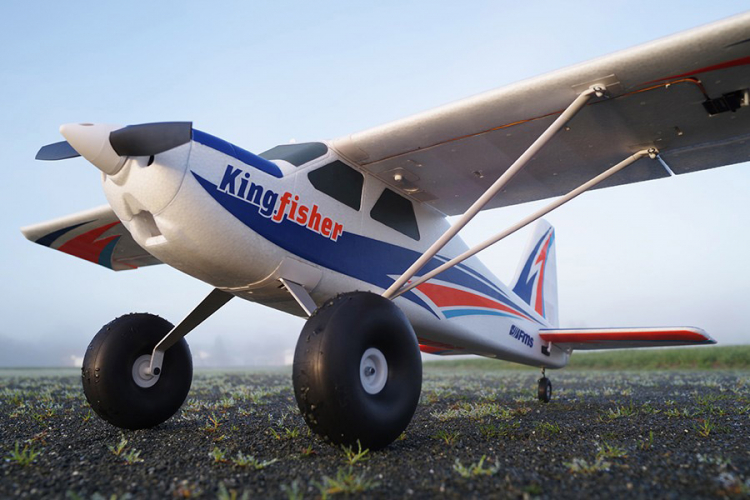

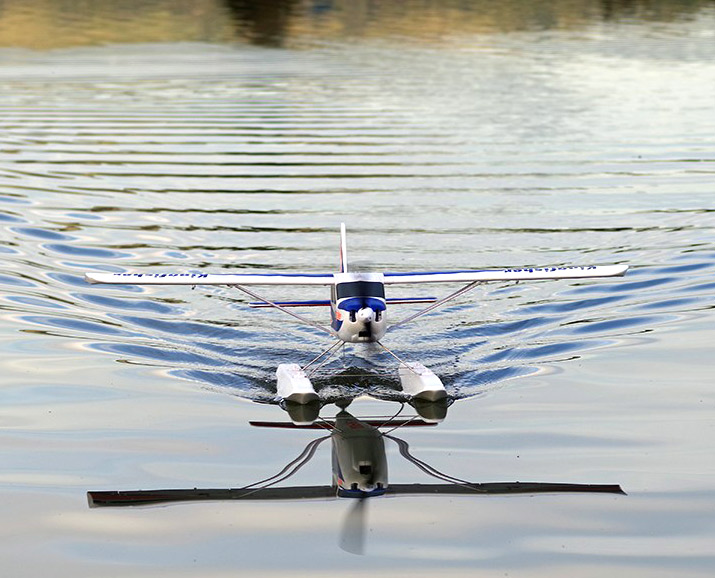

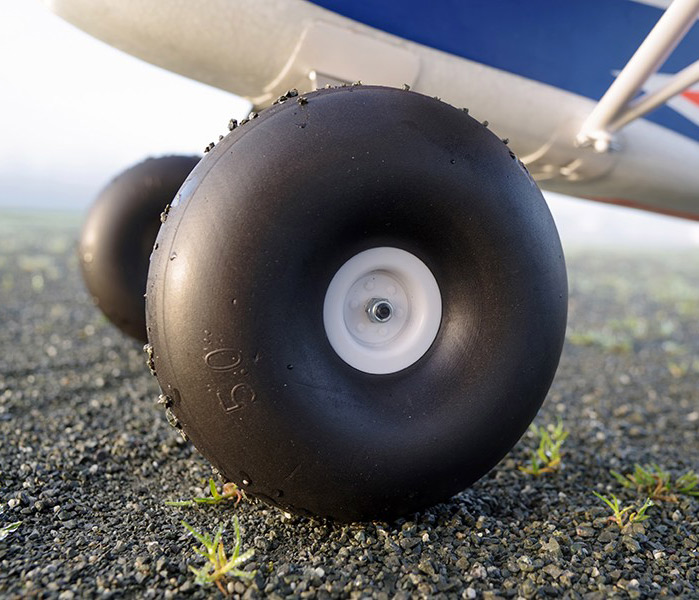

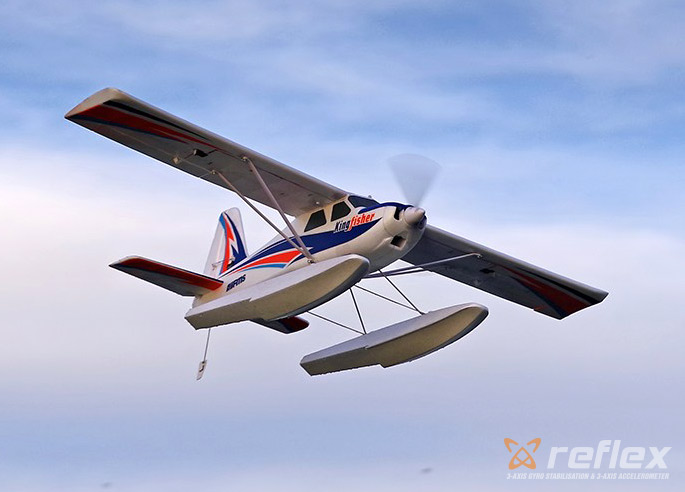

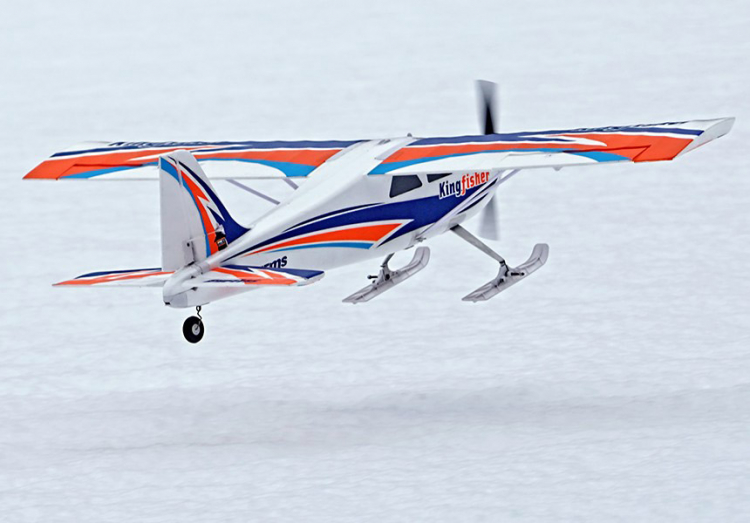

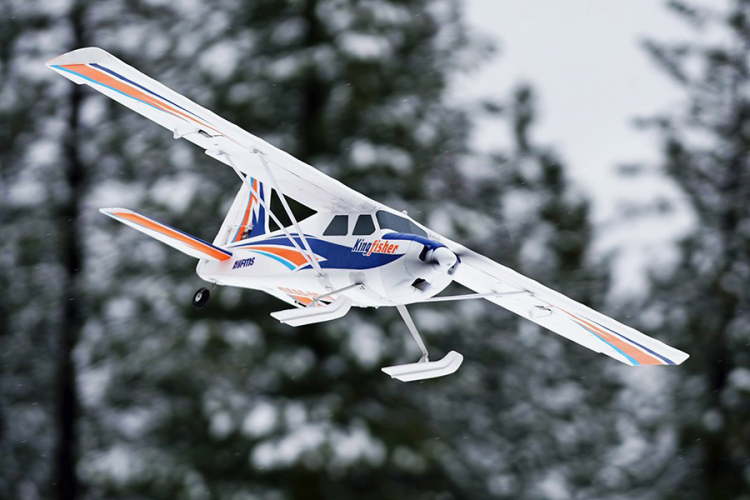

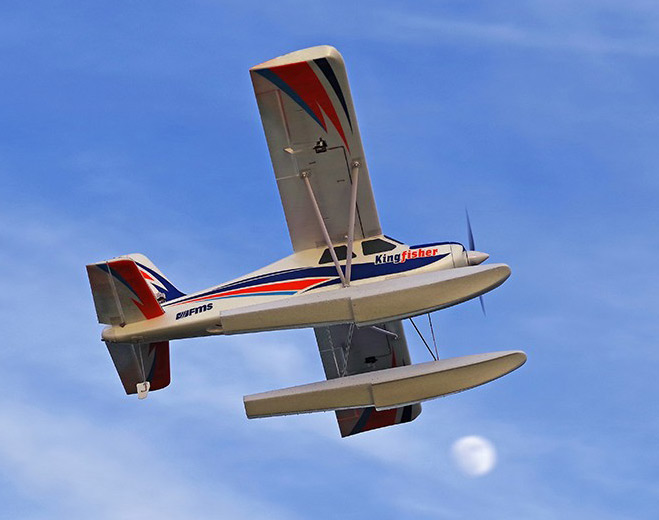

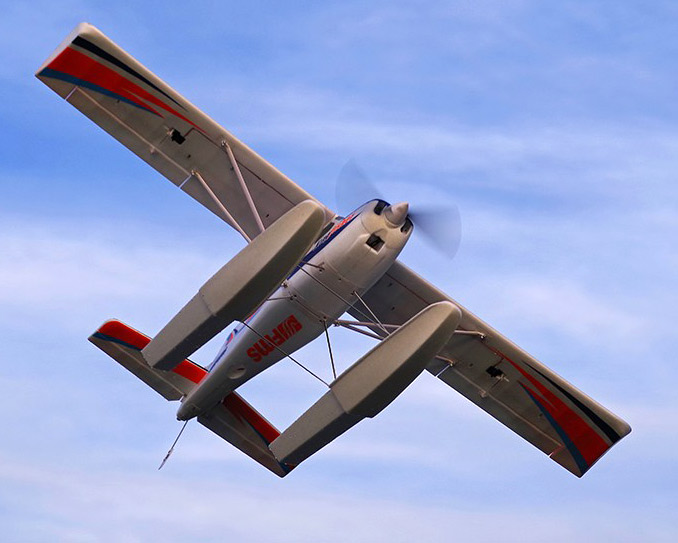

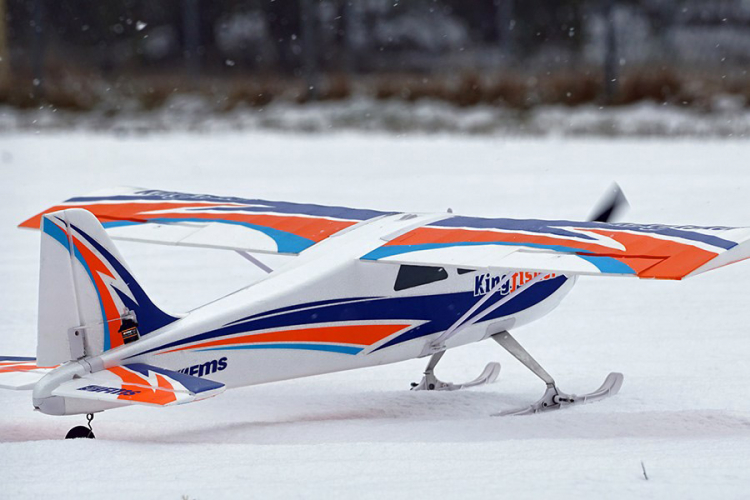

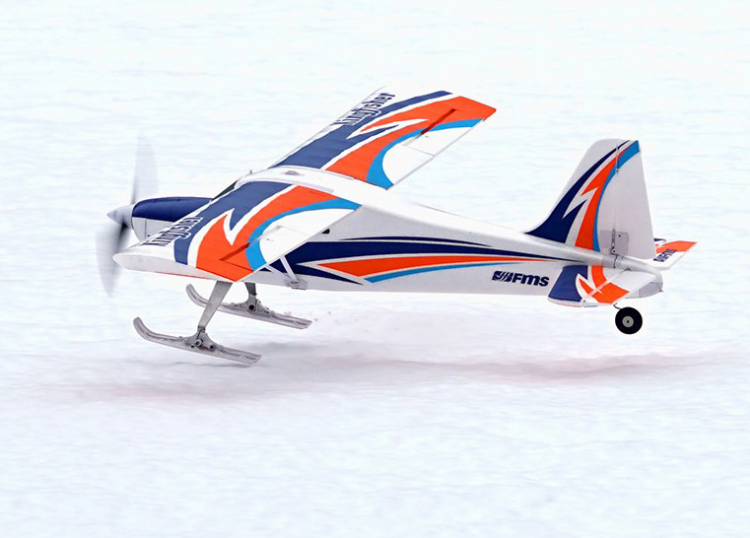

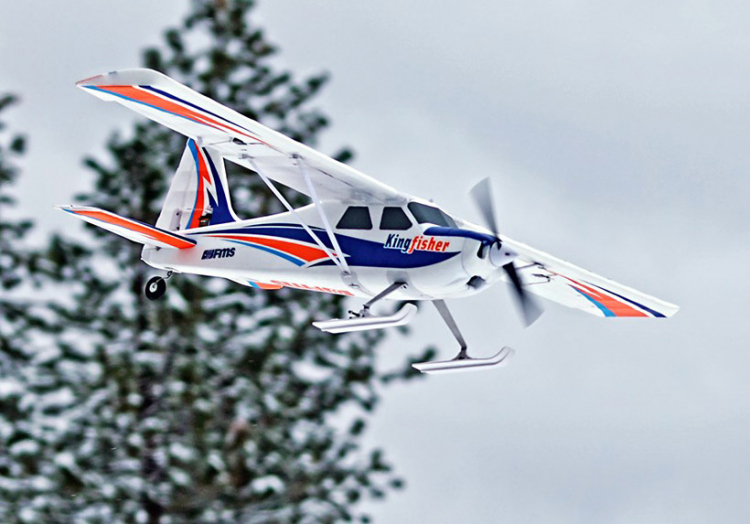

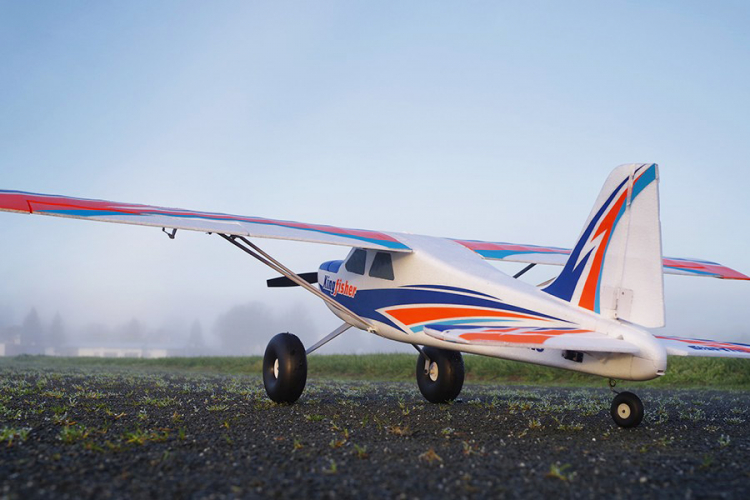

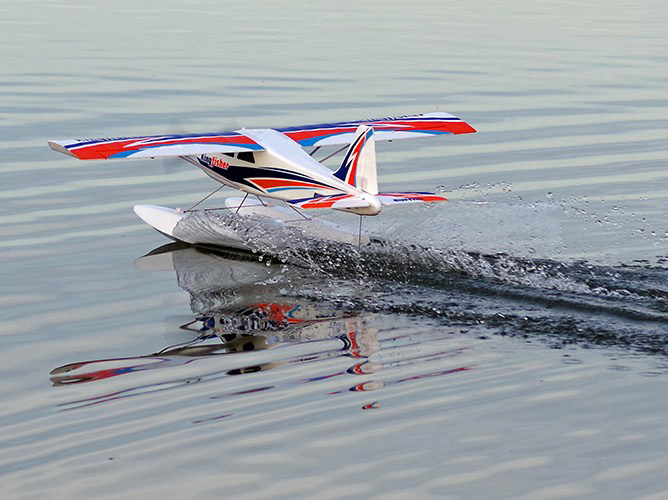

• Three sets of landing gear, with oversize wheels, floats, skis for any landing environment.
• FPV and Towing capable!

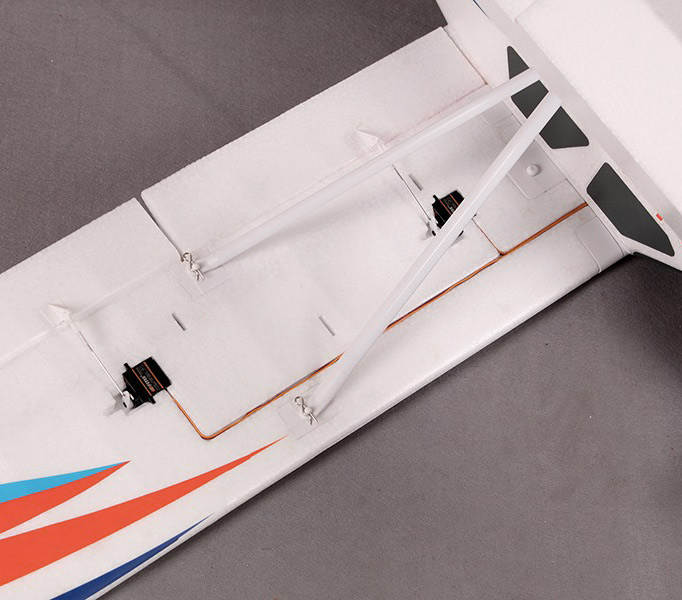

• Bolt-together construction!
• Easy to build!
• 10-15 mins fly time (based on a fully-charged recommended battery)
• Strong Durable EPO material
• The finest multi-role trainer in the market

Reflex V2 can be reprogrammed easily with different model files via a simple software-allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own "co-pilot"- the Reflex V2!

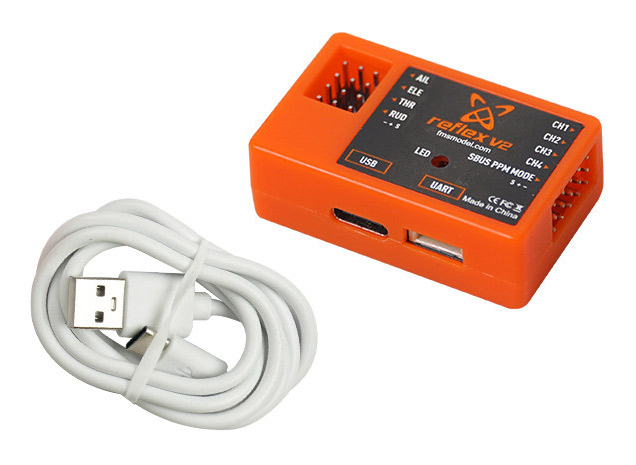

Reflex V2 System Overview:

• The V2 in now a user-upgradeable flight controller (download PC software here)
• Utilizes a high-speed 32-bit ARM processor onboard.
• Sensors: Solid-state 3 axis gyro and 3 axis accelerometer.
• Automatically recognizes SBUS/PPM/PWM systems, compatible with all radio systems with 4 channels or above.
• Easy operation: the Reflex system is programmed specifically for the aircraft it is connected to. No further programming is needed. The user only needs to connect their receiver to the gyro and setup the aircraft normally.

3 Reflex Flight Mode Functions:

• Stabilized (1), Optimized (2) or Off (3). This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes.
• If the transmitter does not have adequate auxiliary channels, the included jumper should be used to change the control mode of the Reflex system.

Reflex Stabilized mode:
Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released giving pilots absolute peace of mind.

Reflex OFF:
Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Reflex Optimized Mode:
Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Specs:

• Wingspan 1400mm
• Overall Length: 915 mm
• Flying Weight: Around 1400 g
• Motor Size: 3536-KV850 in-runner
• ESC: 40A
• Servos: 4x 9g
• Rec Radio: 4 Channel
• CG (center of gravity): 60mm (From Leading Edge)
• Prop Size: 11x7
• Recommended Battery: 3S 2200mAh 35C
• Aileron: Yes
• Elevator: Yes
• Rudder: Yes
• Flaps: Yes
• Retracts: No
• Approx. Flying Duration: 10-15 minutes
• Minimum Age Recommendation: 14+
• Experience Level: Beginner
• Recommended Environment: Outdoor
• Assembly Time: 30 minutes
• Is Assembly Required: Yes
• Material: Durable EPO
• Requires: Radio System, Battery and Charger
