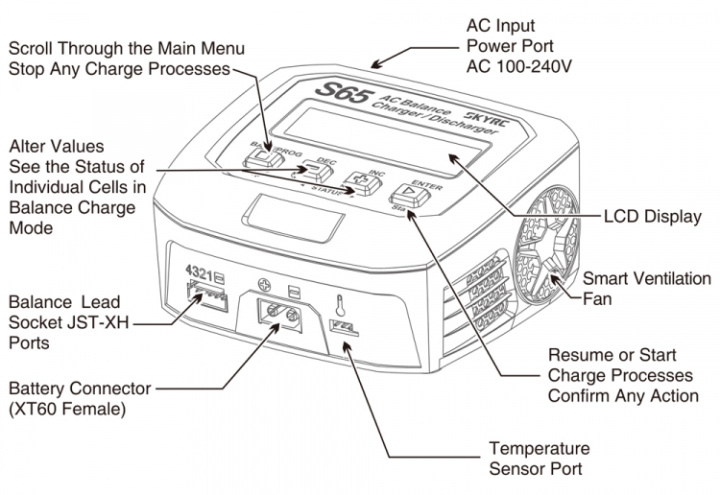

SkyRC S65 AC Charger/Discharger

This AC Professional Charger/Discharger stands out for its angular design and compact size by packing a big power of 65 watts into such a small case. Compatible with a full range of the most popular battery types, including the new generation LiHV, the S65 keeps your batteries powered up with 6-amps of charging power.

AGM & Cold Charge Modes for PB Battery
SkyRC S65 can charge AGM battery and also can be used for charging PB battery at very low temperatures.

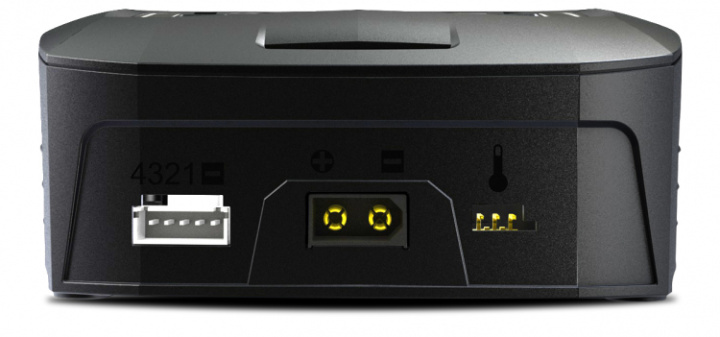

Embedded XT60 Battery Connector
By embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

Smart & Efficient Cooling System
Temperature controlled 7000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

Higher Accuracy with Three Decimals for Battery Voltage
The charger firmware is highly optimized by displaying the battery voltage with three decimals during the process of charging & battery voltage measuring.

This product is suitable for charging and discharging LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. For Pb battery, AGM Charge and Cold Charge mode are available.

Size and Weight:

Case Material: Plastic
Case Size: 118 x 115 x 45mm
Weight: 315g

Power:

Input Voltage: AC 100-240V
Charge Wattage: 65W
Discharge Wattage: 10W

Battery Types/Cells:

LiPo/LiFe/LiIon/LiHV: 2-4 cells
NiMH/NiCd: 6-8 cells
Pb: 3-6 cells

Battery Capacity Range:

NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Pb: 100-50000mAh

Charge and Discharge:

NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Charge Current: 0.1A-6.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 2-4 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes / off
Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCd

Discharge Cut-off Voltage:

NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Drivspänning:	100-240 V
Laddar (Batterityp):	Li-Fe , Li-Ion , Li-Po , LiHV , Multiladdare , NiMH , Pb
Laddar (Li-Fe):	2-4 Celler
Laddar (Li-Ion):	2-4 Celler
Laddar (Li-Po):	2-4 Celler
Laddar (NiMH):	6-8 Celler
Laddström:	0,1-6,0A
Uteffekt:	65W
