SkyRC B6 Nano - 320W DC Laddare

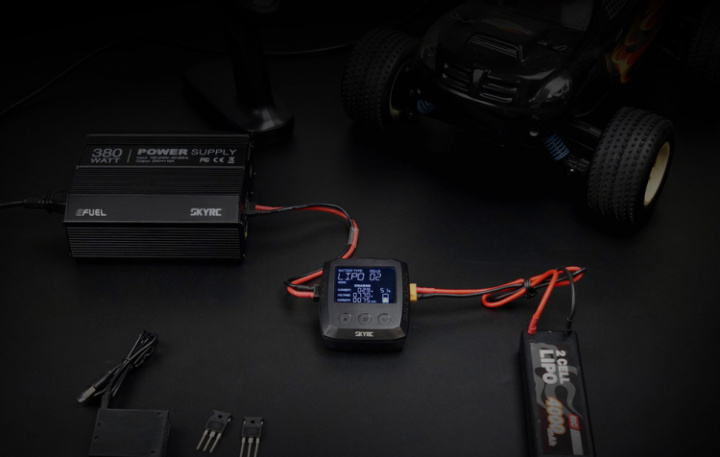

The B6 Nano is a DC charger with 320W power that supports charging and discharging of various types of batteries including LiPo/LiFe/LiIon/LiHV and NiMH/NiCd (XT60 connector). It has multiple types of protection like high/low voltage protection etc.To take advantage of B6 nano’s full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose the SKYRC 380W Power Supply.

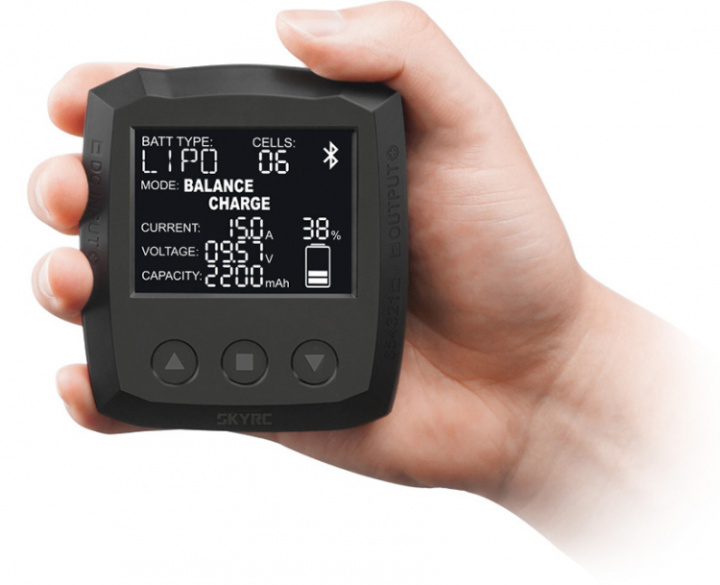

- TINY - Half height of iPhone X
- MIGHTY - 15A/320W
- APP - Smartphone Control
- Built-in Bluetooth
Specifications:
- B6 nano: This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries with an XT60 connector. It has protection functions such as input high and low voltage.
Size & weight:
- Case Material: Plastic

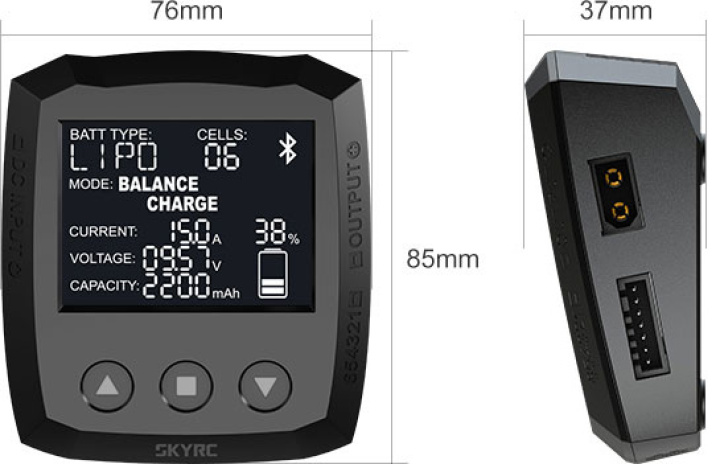

- Case Size: 76 x 85 x 37 mm
- Weight: 130g
Display:
- Display type: LCD
- Reading Voltage Range: 0.1-26.1V/cell

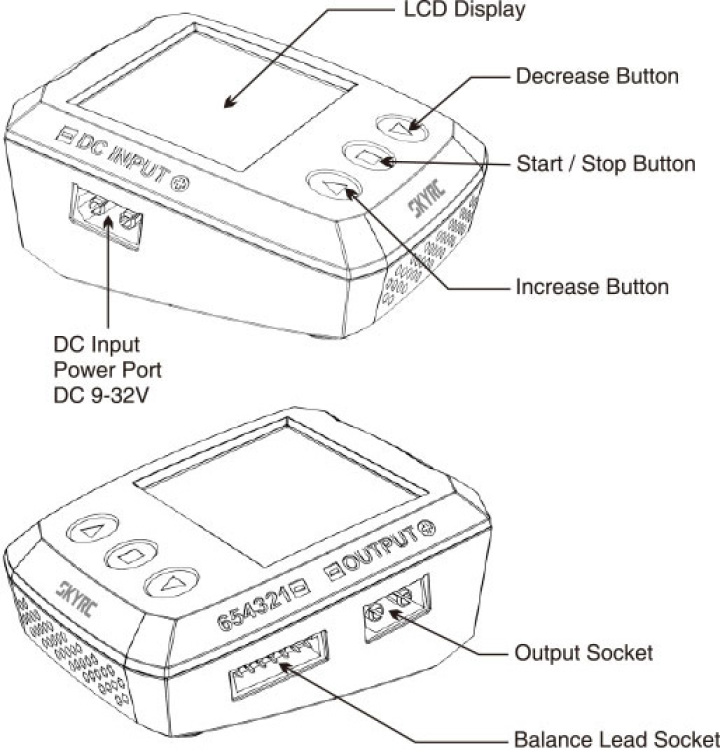

Buttons & Ports:
- External Port: 2-6S Balance Socket-XH, XT60 Battery Socket, DC Input
- Controls:Three buttons
Power:
- DC Input Voltage : 9-32V
- Charge Wattage: 320W
- Discharge Wattage: 5W
Battery:
- LiPo/LiIon/LiFe/LiHV: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 2-20V
Battery Capacity Range:
- NiMH/NiCd: 100-50000mAh
- LiPo/LiIon/LiFe/LiHV:100-50000mAh
- Pb: 100-50000mAh
Charge Voltage:
- NiMH/NiCd: Delta-Peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage:
- NiMH/NiCd: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiFe: 2.6-2.9V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
Free App:
Scan with your Smartphone to download

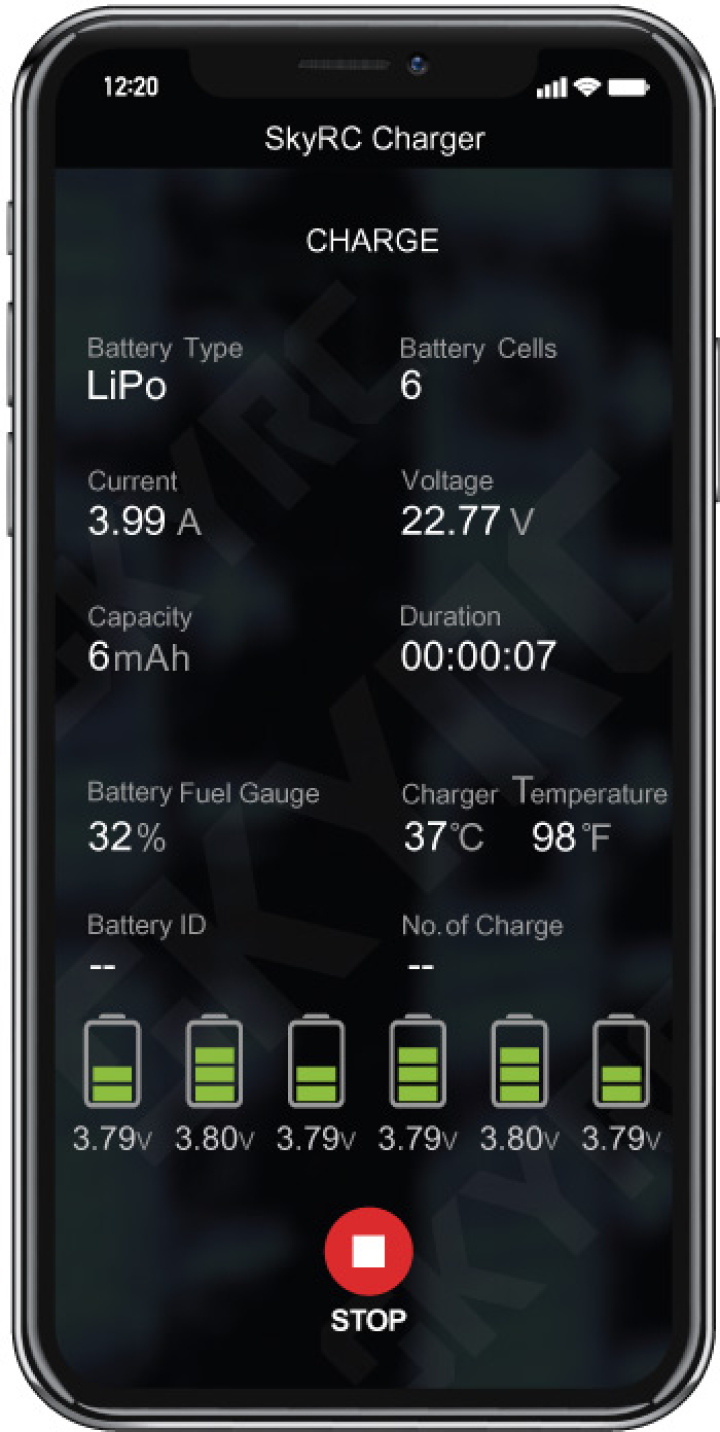

Smart Phone Control (both iOS and Android) The free SkyCharger App unleashes tons of features and advanced settings, which tremendously expands the user experience of B6 nano.
Supports 11 languages
Simplified Chinese, Traditional Chinese, English, Japanese, Spanish, Swedish, Polish, French, Czech, Italian, German & Bokmal Norwegian
Bluetooth connection
Bluetooth 4.0, APP support operation, charge and discharge complete push notification, upgrade
Working & Storage:
- Operating temperature: 0-40°C
- Working humidity: 0-75%
- Storage temperature: -10-70°C
- Storage humidity: 0-75%
