Brushless Motor Analyzer
Artnr:
SK500020
Lev.artnr:
SK-500020-1
Lagersaldo:
46 st
Cirkapris:
1373 kr
- Information
- Net Weight: 282 gr (Without Cabel)
- Input Voltage: 7.4-8.4V (Suggested 7.4V 2S 1P LiPo)
- LCD: Blue Backlight Background, White Text, 16 Characters X 2 Lines
- KV Value Accuracy: +/- 3%
- Motor Timing Accuracy: +/- 4%
- Motor Timing Range: 0-70°
- Noise Level Measurement Range: 60dB - 120dB
- Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)

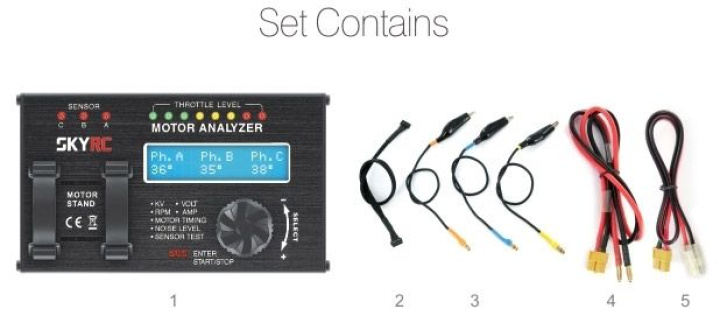

- SkyRC Blushless Motor Analyzer
- Motor Sensor Cable
- Motors cables with 3.5mm banana connector and Crocodile Clip
- DC Input Power Cable with XT60 connector and 4.0mm banana connectors
- DC Input Power Cable with XT60 connector and Tamiya connector

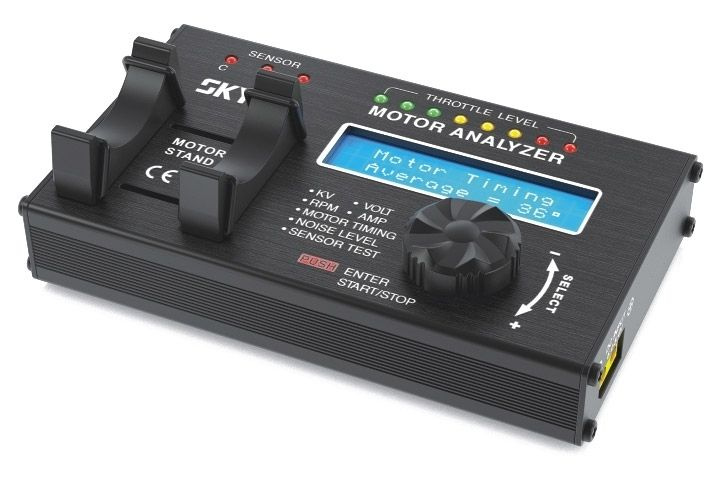

SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.
Specs:
Includes:
