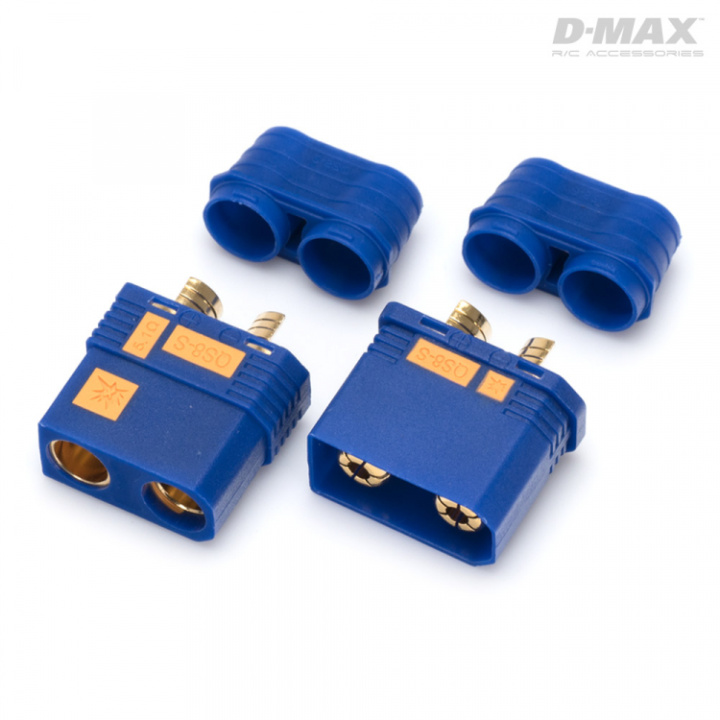

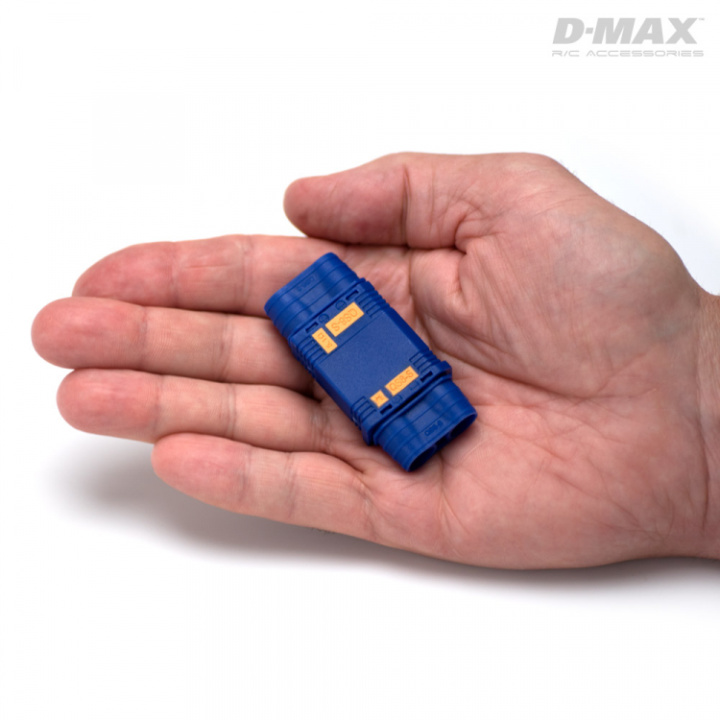

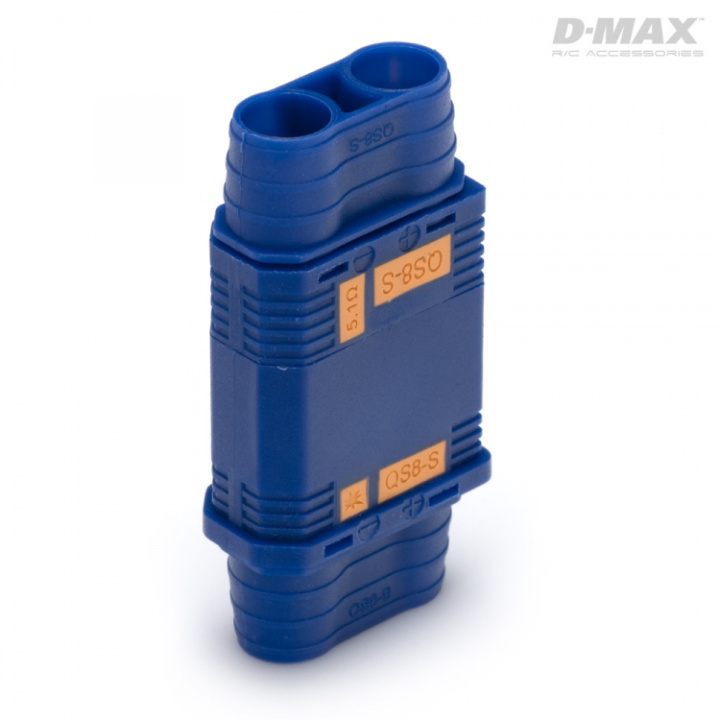

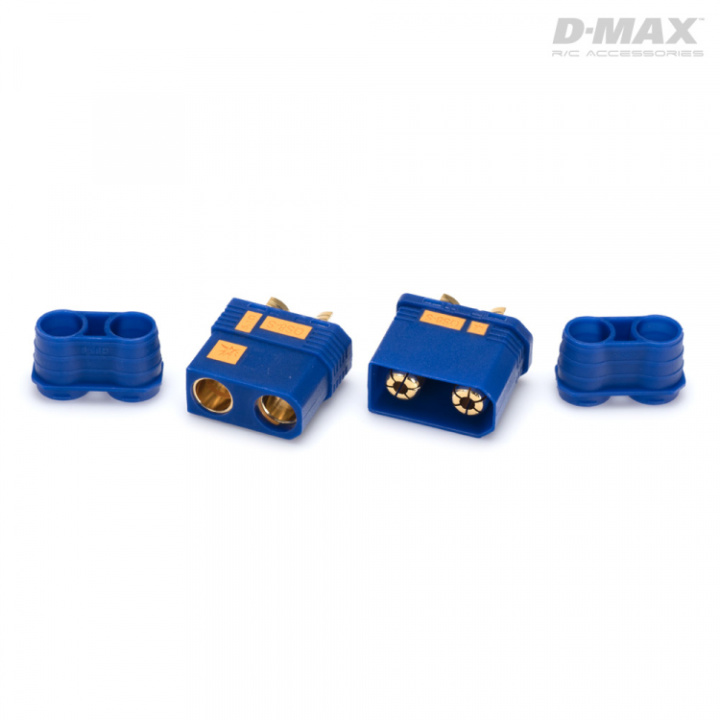

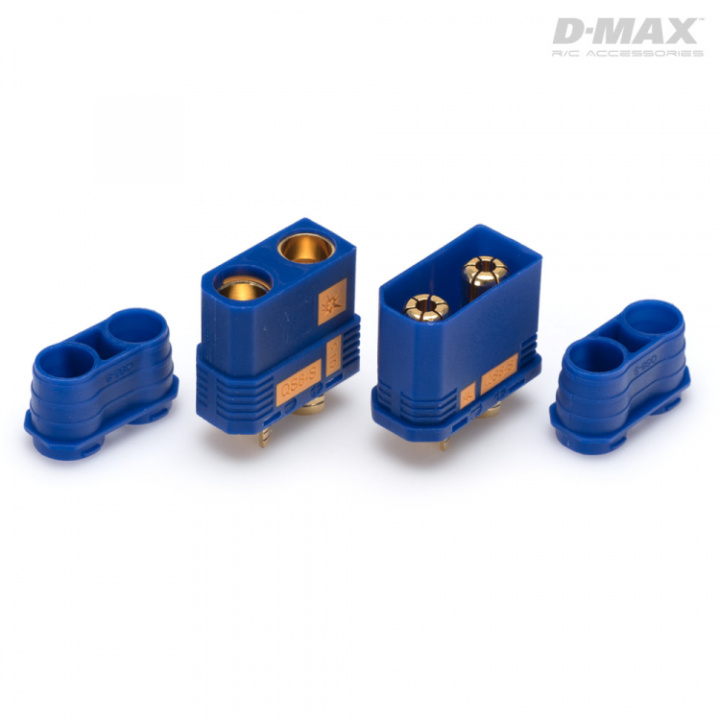

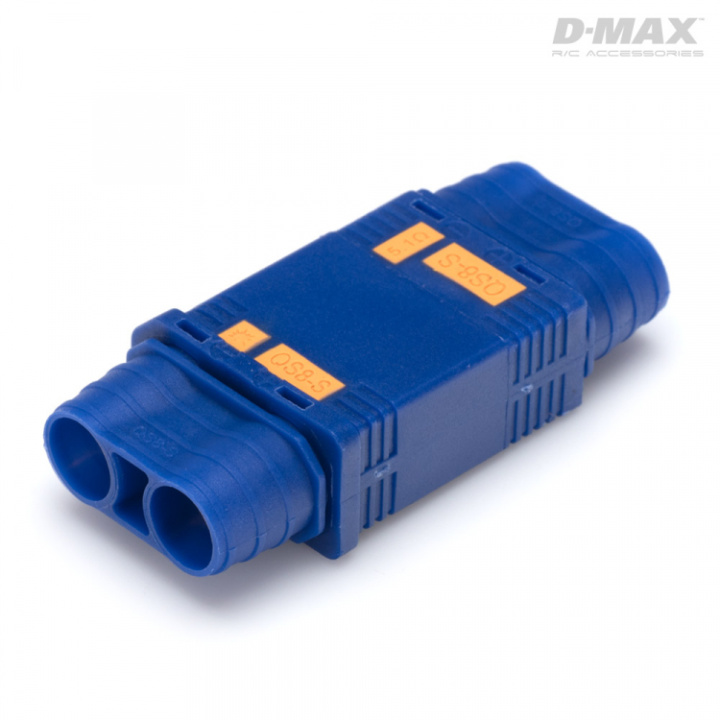

D-MAX QS8-S Anti-Spark Heavy Duty 8mm Connector
This is a heavy duty gold plated connector with built-in antispark resistors that are great for high powered electric models.The QS8-S connector gives you a constant charging of the capacitors on the ESC and allows the battery to be connected without sparks on your ESC when you first plug in.
Features:
- HEAVY DUTY
- Built in Anti-Spark Function (5.1 ohm resistor)
- Not compatible with our EC8 connector
Specs:
- Continuous Current: 110A
- Max Peak Current: 500A
- Max Wire Size: 6AWG (aprox 6-7mm dia of the exposed wire)
- Max outer dia of the wire insulation: 8.8mm
- Connectors: 8mm Gold Plated Brass
- Case Material: Fiber Reinforced Nylon
- Length (total assembled): 60.9mm
- Width: 29.7mm
- Height: 15.4mm
- Weight: 41.7g
