Castle Creations Blower Fan Shroud for 17XX Motors

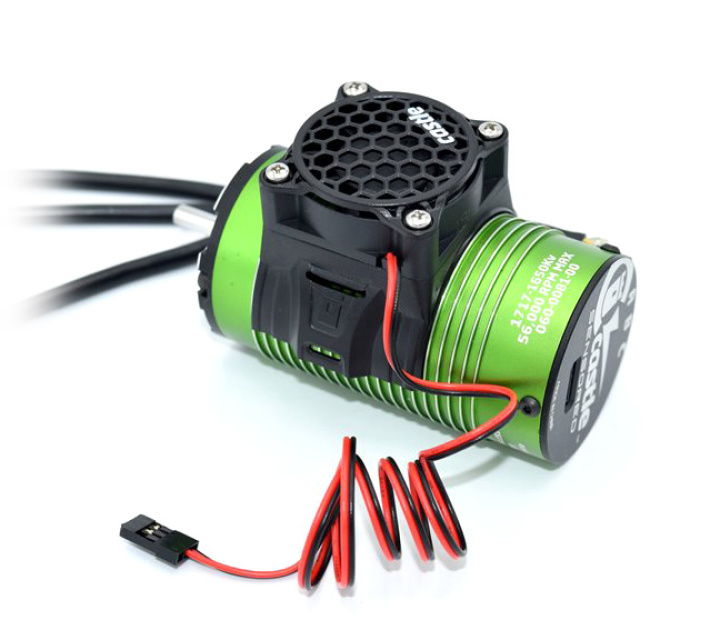

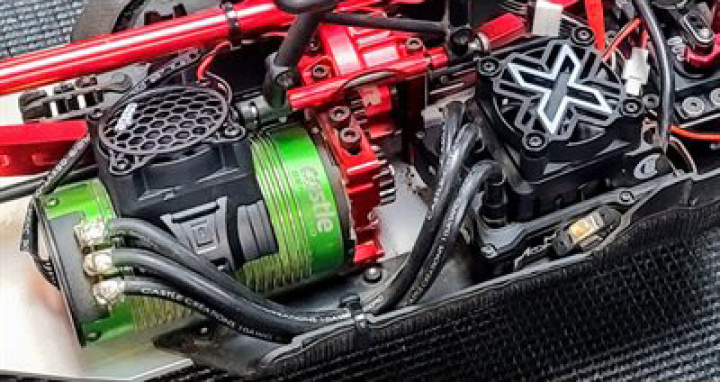

Run Cooler*!CC Blower plugs directly into your receiver for power and helps maintain motor temperature! Our newly redesign Motor Blower Fans make it easy to mount a cooling fan directly to any Castle 17xx series (or 46mm diameter) motor. Installation is simple using just zip ties.
The new design also allows taller, optional 40mm fans to be attached with longer mounting screws.
Fits on motors with outside diameters of 46mm.
Designed for use with:
- CC060-0082-00 - 1717-1260Kv Brushless Sensored Motor
- CC060-0081-00 - 1717-1650Kv Brushless Sensored Motor
- CC060-0091-00 - 1721-2400Kv Brushless Sensored Motor Able to fit two Shrouds

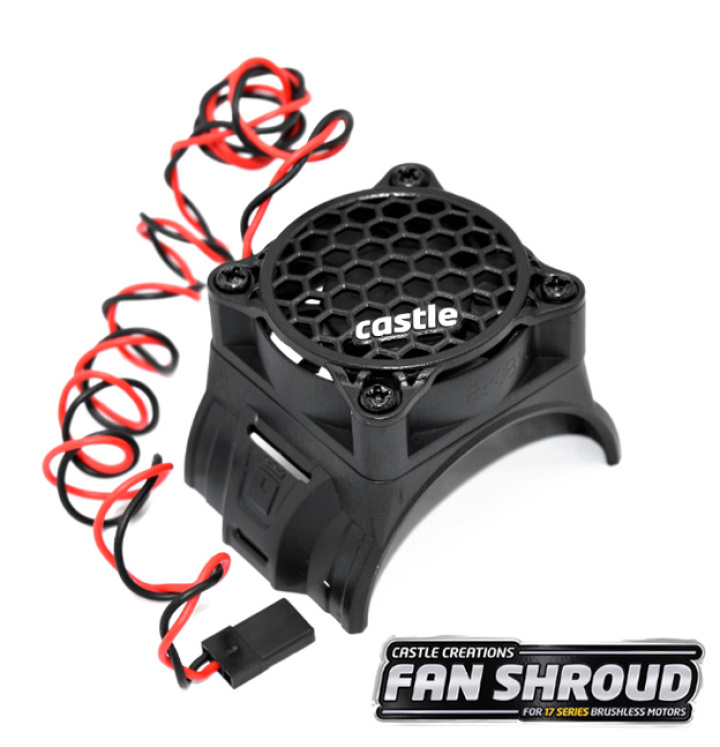

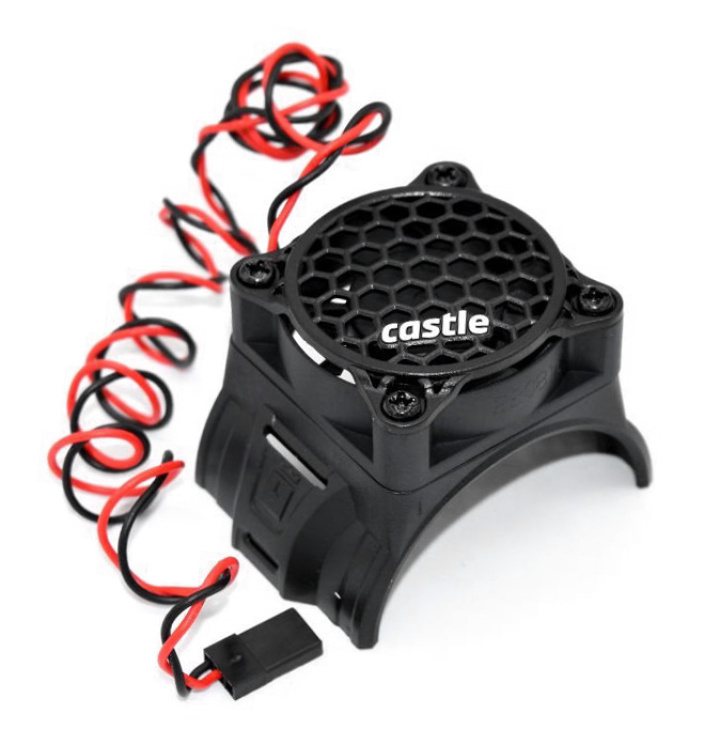

Includes fan, shroud, and two (2) black zip ties.
Technical Specs:
- Input Max Voltage: 8.4v
- Maximum RPM: 10,000
- Fan Size 40mm x 40mm x 7mm
- Waterproof: No, remove before exposing fans to moisture.
