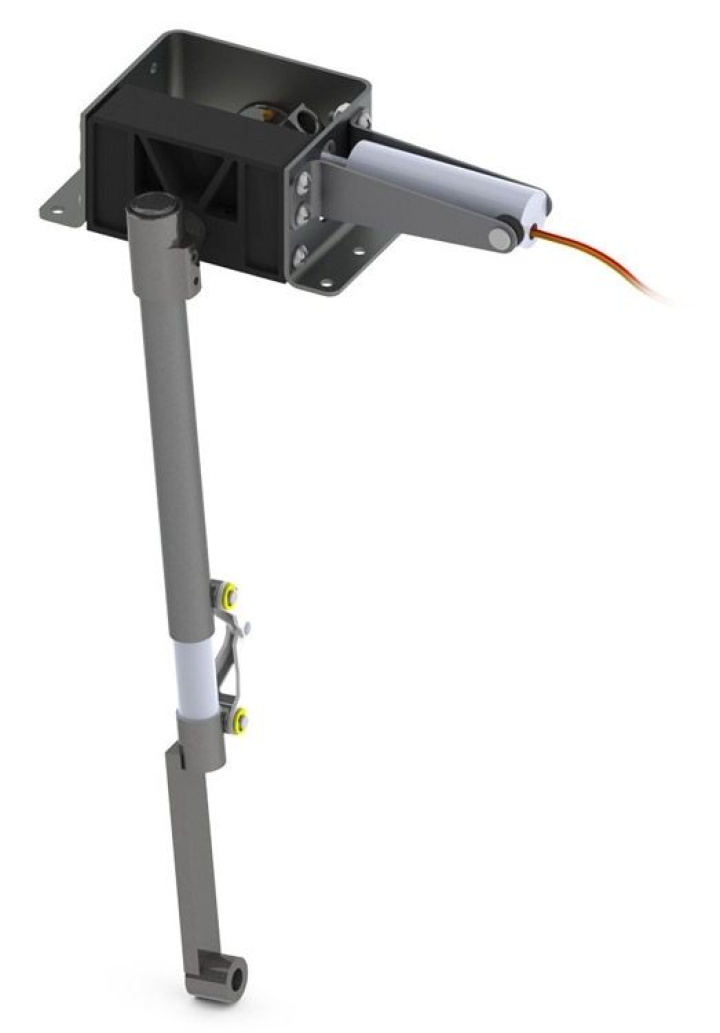

These are the Robart 622P47E Electric Main Retracts for the 1/5th scale Top Flite Giant P-47 Thunderbolt.
FEATURES
- Constructed from aircraft grade aluminum and steel components
- Positive up and down locks
- Adjustable for height and toe in
- Designed for use with 5" (127 mm) diameter wheels

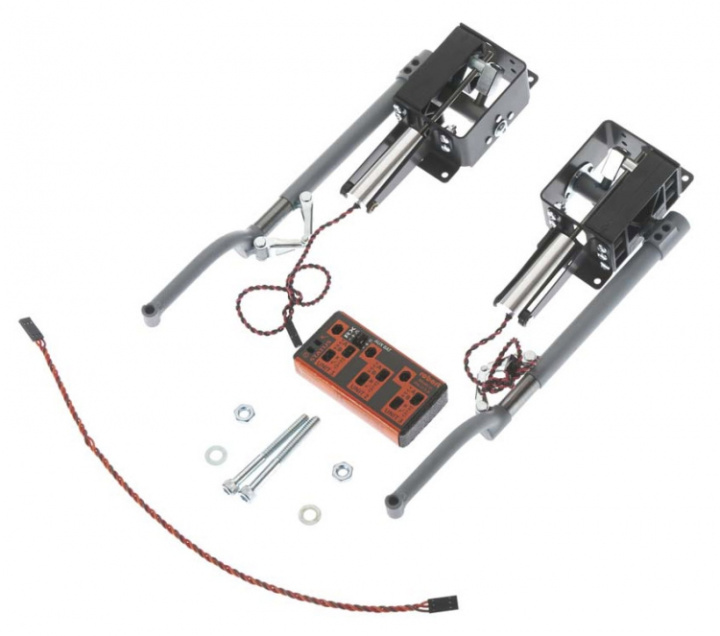

INCLUDES
- Left and right assembled Electric Retracts with Instructions
- Electric Retract Control Unit with Cable
SPECIFICATIONS
- Distance between Mounting Hole Centers Same Side: 3/4" (19 mm)
- Distance between Mounting Hole Centers Opposite Side: 3-1/4" (83.5 mm)
- Width of Actuator Frame: 1-3/8" (35 mm)
- Distance/Wheel Center to Bottom Mounting Hole: 8-5/8" (219 mm)
- Distance/Wheel Center to Mounting Tab: 8-3/8" (211 mm)
