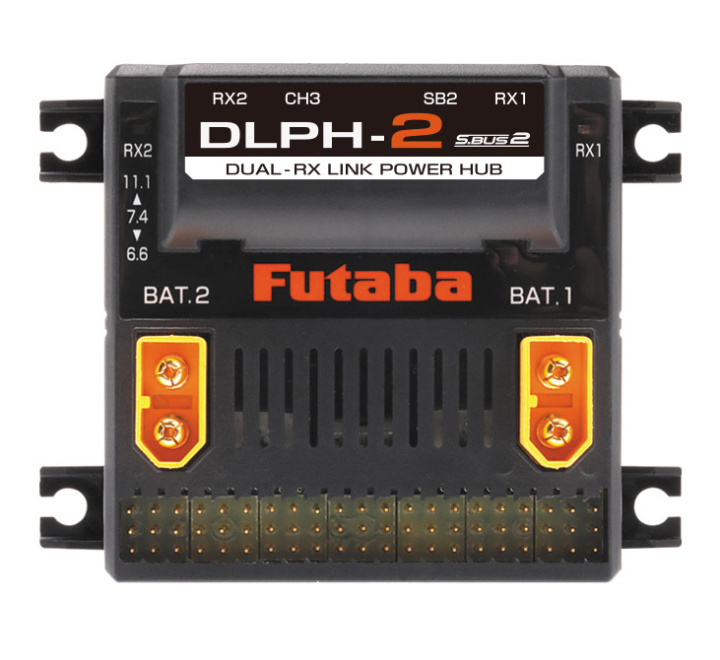

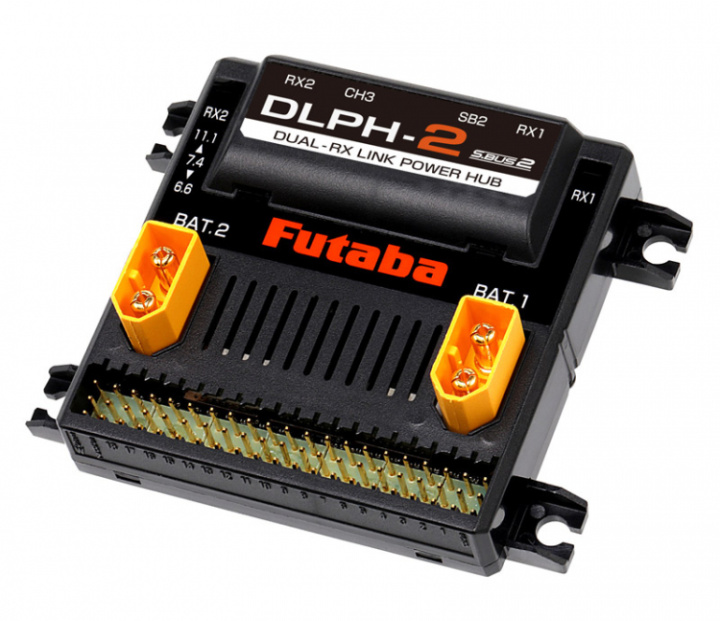

Futaba DLPH-2 - Dual RX Link Power Hub
Equipped with 2 MAX60A systems! Dual RX link power hub. Ideal for aircraft that use many servos, such as large machines! Introducing support for single receiver mode, gyro mode, and FASSTest 26ch!Features:

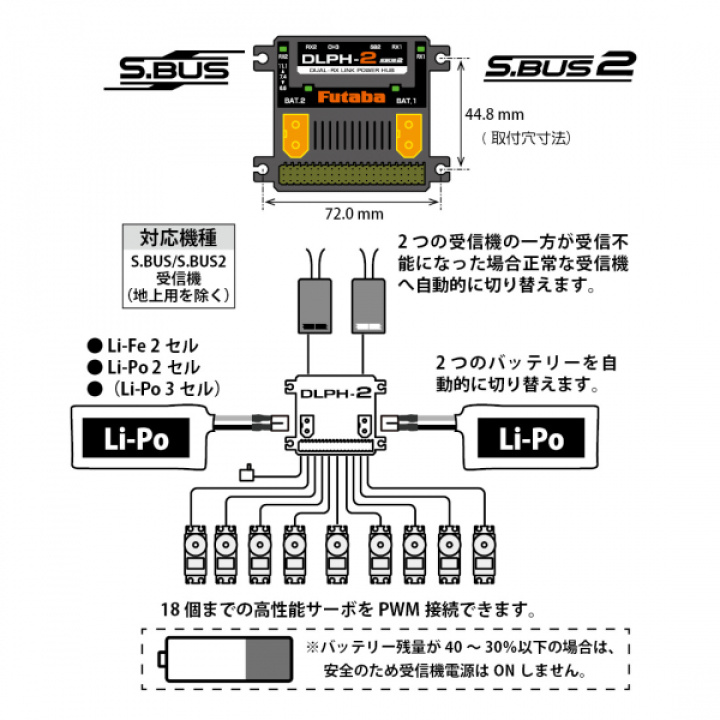

- Two receivers and batteries can be connected.
- Electronic switch (current is controlled by FET circuit)
- The telemetry function allows you to display the voltage of 2 power supplies.
- Compatible with 3 types of batteries and equipped with a protection function when connecting different types of batteries
- Equipped with a protection function when the battery level is low.
The following functions have been added from DLPH-1:
- Single receiver mode
- Airplane gyro GYA553 connection mode
- FASSTest 26ch compatible
- Various settings can be made visually by using a transmitter (32MZ WC, etc.)
DLPH-2 specifications:
- Application: 2 receiver switching equipment (dual Rx link system)
- FET (rating): 60A at all times x 2 pieces
- Size: 62.8x62.4x18.1mm
- Weight: 50g
- Operating voltage: 6.4 to 13.0 V (2 batteries (XT60 connector))
- Accessories: Switch/receiver, gyro connection cord x 3/mini driver/flange damper/grommets/wood screws
