Castle Mamba Micro X2, 16.8V, WP Sensored ESC W / 0808-4100KV MOTOR
The Mamba Micro X2 is a refresh of our popular 1/18 scale Mamba Micro X esc. This new ESC increases the maximum input voltage to 4s (max 3S with the included motor). We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC, waterproof* and has SENSORED MOTOR SUPPORT (included 0808 is sensorless).This is the perfect upgrade for 1/18 scale RC vehicles, up to 3S LiPo and weighing in at up to 1kg. Vehicles include: Traxxas Slash 4x4 1/16th, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton & Axial Yeti Jr.
The Mamba Micro X also works well in some 1/10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.
ESC FEATURES:
- Input Voltage range 2S-3S (with included 0808-4100Kv motor)
- Adjustable BEC: 5.5V or 7.5V (2A Peak), default 5.5V
- Waterproof design
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas, USA

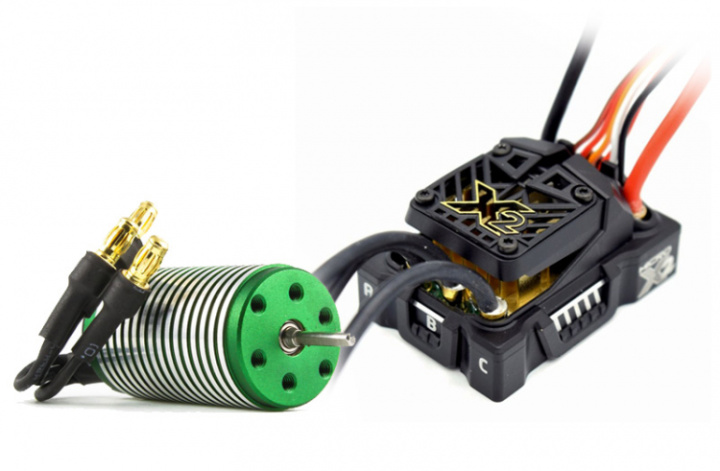

Mamba Micro X2 w/0808-4100Kv Motor Combo Includes:
- Mamba Micro X2 ESC
- 0808-4100Kv Brushless Sensorless Motor
- Quick Start Guide
- Castle Decals
Application Guidelines:
- Up to 3S LiPo and weighing in at up to 1kg
- Not intended for 1/16th scale or 1/14th scale vehicles (In example Losi Mini-8ight/T & Traxxas Mini E-Revo)
