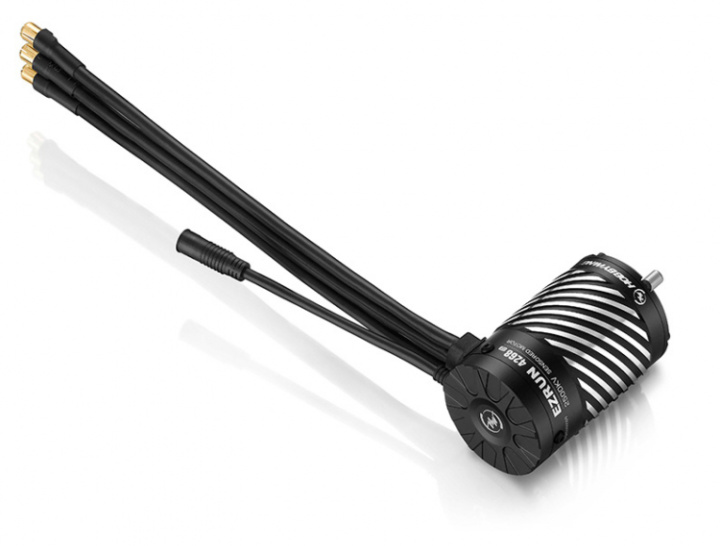

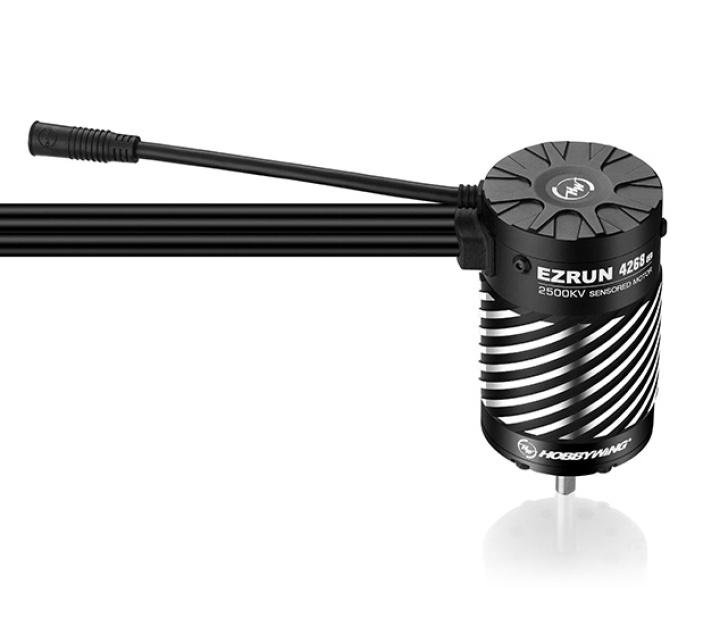

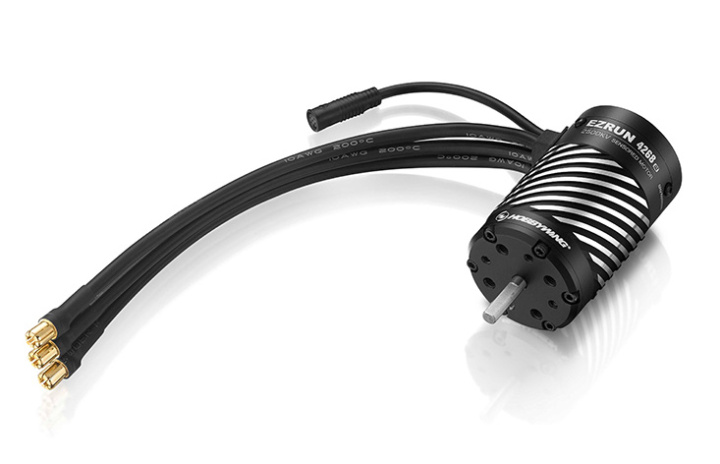

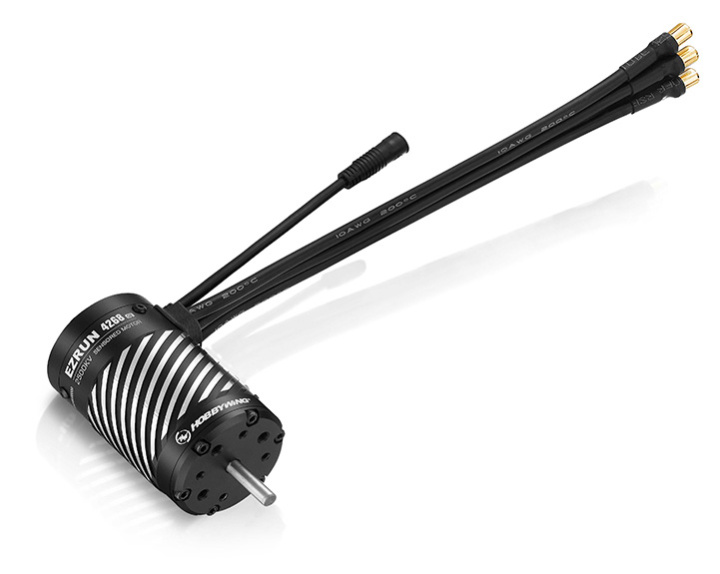

Hobbywing EzRun 4268-2500Kv 3-4S - Sensored Sport Brushless Motor
The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.EzRun 4268SD G2 Features:
- Chip built in the motor, when matched with Hobbywing EZRUN MAX8 G2 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.

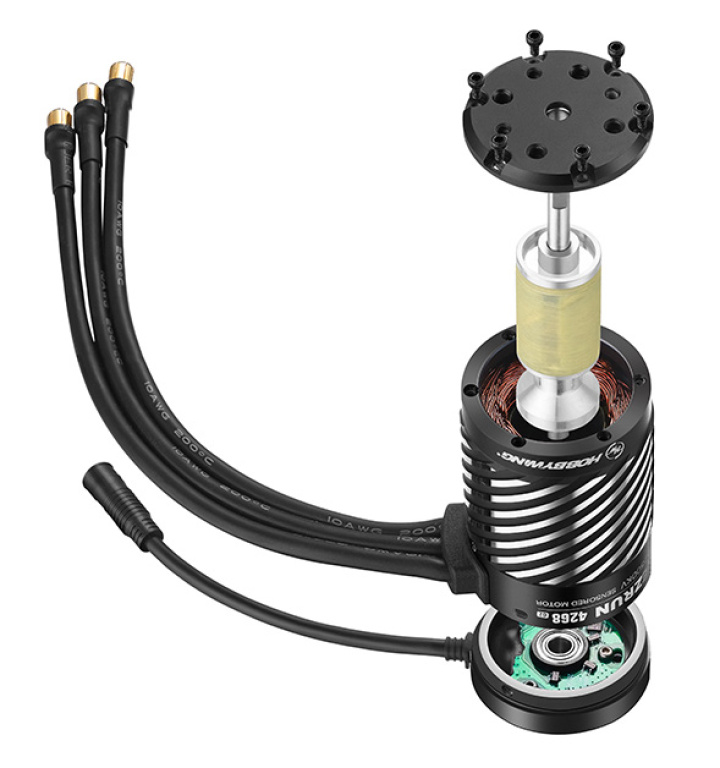

- The rotor adopts four strong magnetic and high temperature resistant sintered Nd-Fe-B magnets, widens the magnetic tile, provides super torque, and makes the motor have strong explosive force and stable output power.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- High output efficiency, effectively reduce the motor temperature and output more power under the same load.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor.
EzRun 4268SD G2 Specs:
- Type: 1/8, sensored, brushless
- Pole Count: 4
- KV Rating: 2500KV
- LiPo Cells: 3-4S
- No-load Current: 4.8A
- Diameter: 42mm
- Length: 68mm
- Shaft Diameter: 5mm
- Weight: 355g
- Front Bearing: D16xD5xT5mm
- Rear Bearing: D11xD5xT5mm
Applications:
- Vehicles: 1/8 Buggy, Trucks & Monster Trucks (Sport) & Heavy Duty 1/10 Trucks & Monster Trucks (Sport)
