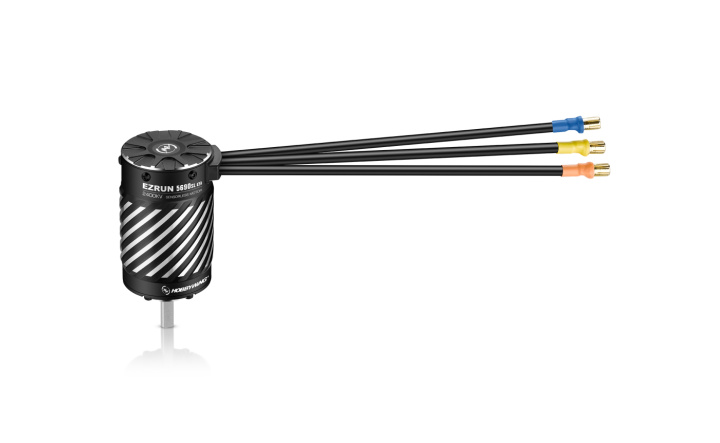

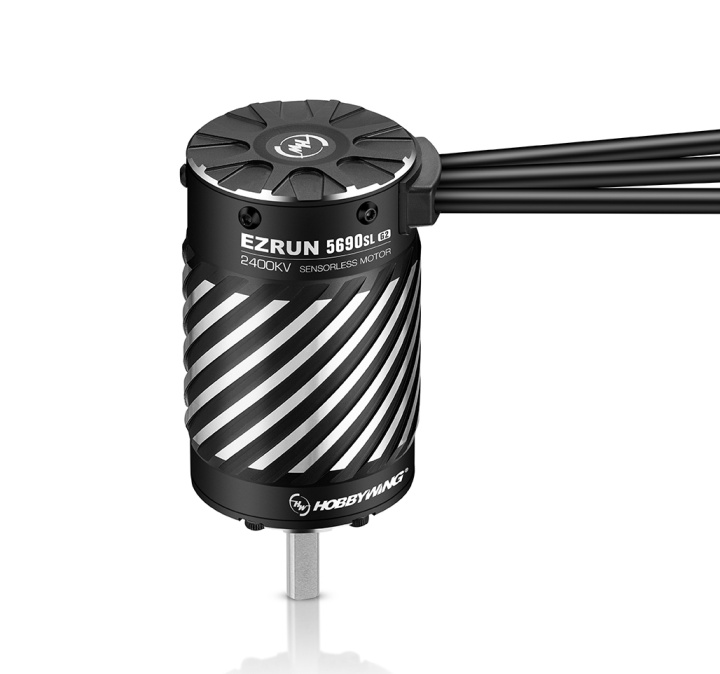

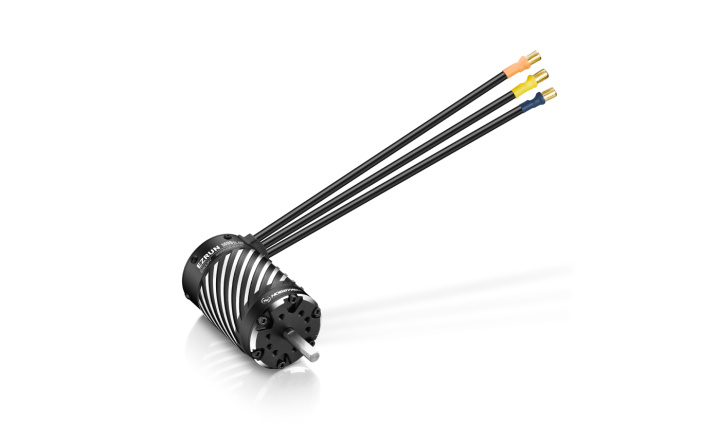

Hobbywing 30402904 - EZRUN 5690SL G2 2400kV Black G2
Exceptional Power and Speed: The motor delivers high power output and supports high RPM, making it an ideal choice for high-speed applications.Optimized ESC Compatibility: Designed for seamless integration with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and increased power output when paired.
Effective Heat Dissipation: The motor features a grooved design for effective heat dissipation, reducing temperature increases and prolonging high-power, high-torque output.
Durable Construction: Built with premium materials, including CNC-machined aluminum housing, top-tier bearings, ultra-thin silicon steel laminations, high-temperature-resistant oxygen-free copper wires, carbon fibre-wrapped explosion-resistant rotor, and high-strength alloy output shaft. These features ensure sustained high performance over time.
Specification
- Scale: 1/7th, 1/8th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Pole: 4
- KV Rating: 2400KV
- LiPo Cells: 6-8S
- No-load Current (A): 16A
- O.D.(mm): 56mm
- Length(mm): 90,5mm
- Shaft Diameter(mm): 8
- Weight(g): 885g
- Front Bearing: D22xD8xT7
- Rear Bearing: D19xD8xT6
- ESC: EZRUN MAX5 HV PLUS G2
- Vehicles: 1/8th, 1/7th and other model cars for extreme speed applications
