Hobbywing XeRun V10 G4 Brushless Stock 21.5T
Features:
- Excellent performance, specially designed for racing; Compared with V10 G3R motor, the KV value of G4 motor is increased by 9.8%, the maximum output power is increased by 5%, and the internal resistance is reduced by 4%.
- The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and increases the direct heat dissipation area by 25.6% compared with G3R. In addition, the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
- Dual sensor interface design to meet various wiring/layout requirements.
- The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
- The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

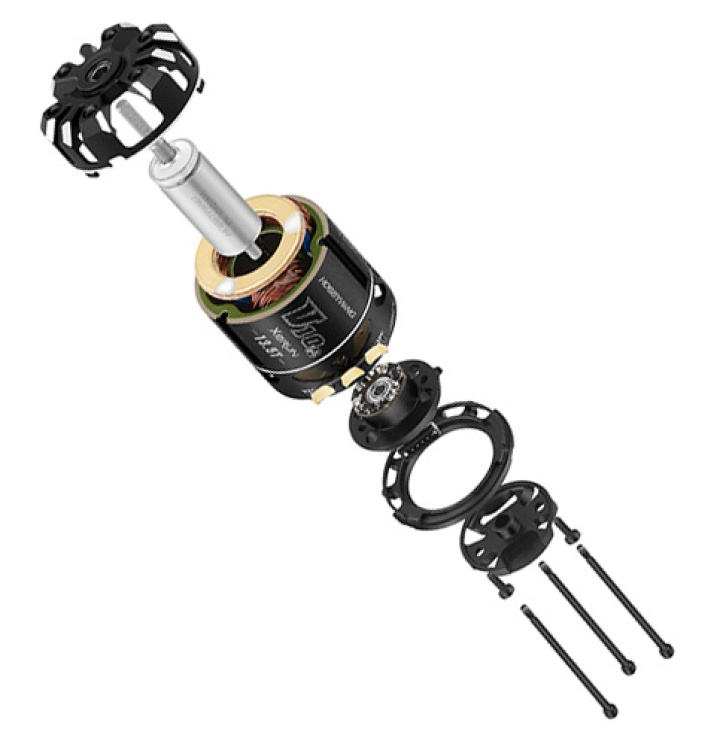

- The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
- The use of high-performance stator core, heat(200°C )-resistant wire, heat(180°C)-resistant rotor with strong structure, world-class high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
- It’s compliant with IFMAR, ROAR, EFRA, BRCA, JMRCA rules, and certificated by RoHS, CE, FCC and etc
Specs:
- Type: 1/10, Sensored, Bruhsless, Stock
- Pole Count: 2
- KV Rating: 2500KV
- LiPo Cells: 2-3S
- No-load Current: 3.0A
- O.D.: 35.8mm
- Length: 51.4mm
- Shaft Diameter: 3.175mm
- Weight: 148g
- Front Bearing: D9xD4xT4mm
- Rear Bearing: D8xD3xT4mm
- Timing: 30-60 Degrees (Adjustable)
- Application: 1/10th STOCK Class Racing
