SkyRC SK600155-01 - MPS010 Magnet-Activated Receiver On-Off Switch
Effortly activate your RC model with a simple swipe of a magnet. This new SkyRC magnetic switch eliminates the traditional mechanical receiver switches.Swipe and Go: Power-Up/Down with a magical Swipe!
Specs:
- Input voltage: 3-13V
- Continous Output: 7A
- Peak Output: 10A
- Magnet Sensing Range: 1-1.5cm above the LED indicator
- LED: Green/On
- Power-On State Memory: Retains the previous state if powered back within 10 seconds; resets if over 10 seconds.
- Connectors: Futaba/Universal
- Weight: 4g
- Size: 17.5x5x8mm
- Length (including wires): 193mm
- Output OFF: ≤5uA
- Output ON: ≤3.5mA

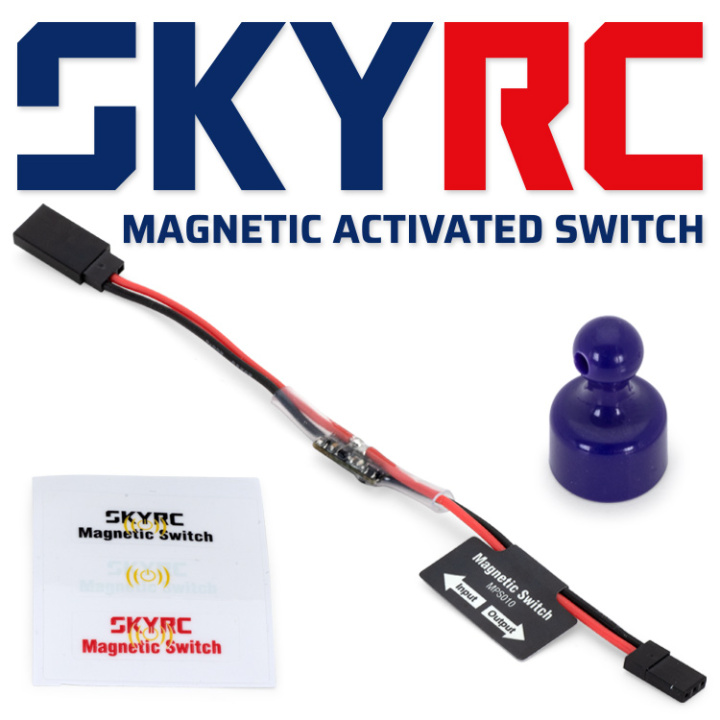

Included:

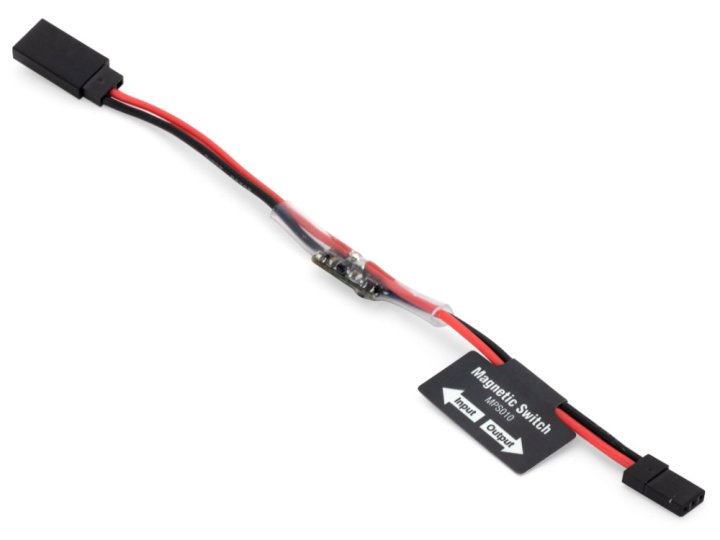

- MPS010 Magnetic Switch

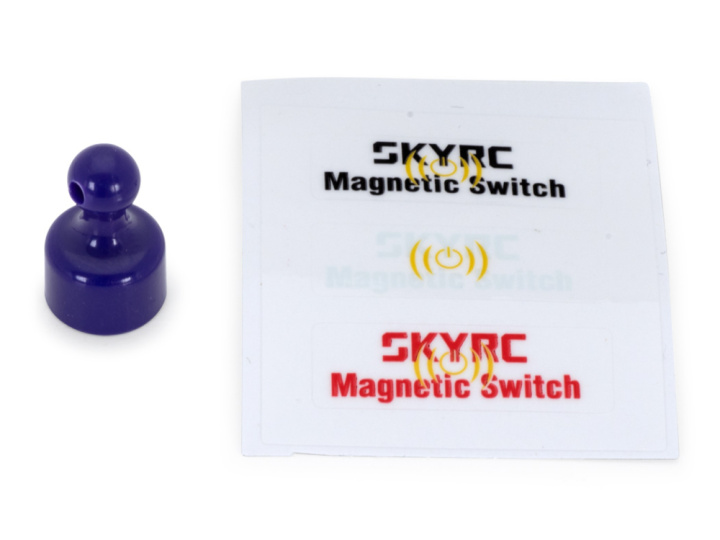

- Magnet
- Switch position decals
