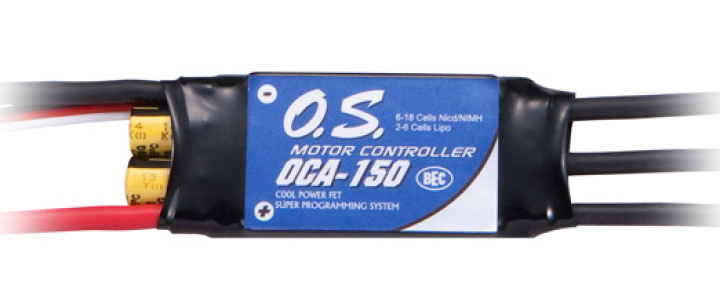

O.S.Engine OS52010050 - OCA-150 ESC
For airplanes (10-25 class) & for helicopters (ideal for 450 class helicopters):- Load current: 50A (60A 5 seconds)
- Compatible battery: 6-18 cells (NiCd/NiMH), 2-6sLipo
- BEC output: 5.5V, 3A (peak 5A)
- Dimensions: 50x25x10mm
- Weight: 52g (including wiring)
Items that can be set on ESC alone:
- Battery type selection (Lipo) or (NiCd/NiMH)
- Application selection: HELI, AIR, BOAT, or CAR
- Rotation direction
- Governor ON/OFF (for HELI)
- Air brake ON/OFF (for AIR)
- Reverse function ON/OFF (for CAR, BOAT)
- Other detailed settings (advance angle, start power, etc.) require OCP-1 (sold separately).
Recommended O.S. motors:
- OMA-3820-1200
- OMA-3825-750
- OMA-3815-1000
- OMA-3810-1050
