FIELD LINK FOR FLYING

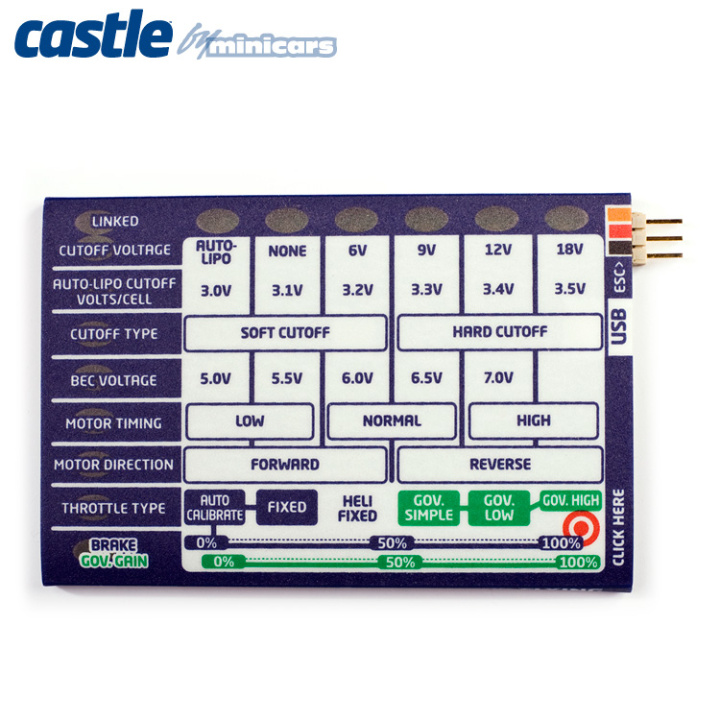

| SETTING | Talon | Phoenix Edge | Phoenix Edge HV | TBird | Phoenix Ice | Phoenix Ice HV | Phoenix and Phoenix HV | CC BEC and CC BEC Pro |
|---|---|---|---|---|---|---|---|---|
| Cutoff voltage | X | X | X | X | X | X | X | |
| Auto LiPo volts/cell | X | X | X | X | X | X | ||
| Low voltage cutoff type | X | X | X | X | X | |||
| BEC Voltage | X | X | X | |||||
| Motor timing | X | X | X | X | X | X | ||
| Motor direction | X | X | X | X | X | X | X | |
| Throttle type | X | X | X | X | X | X | ||
| Brake | X | X | X | on/off | X | X | X | |
| Governor gain | X | X | X | X | X | X |
Works with all Castle Link compatible air controllers including:
Phoenix Edge, Phoenix Edge Lite, Phoenix Edge HV, Phoenix Edge Lite HV, Talon, Phoenix, Phoenix HV, Phoenix Ice, Phoenix Ice HV, Thunderbird (limited to select Thunderbird features). See more compatibilty info here.
Requires USB 2.0 on a Windows PC running Castle Link software.
Specific Usage Notes
Thunderbird Controllers
Thunderbird controllers have fewer settings than may be represented on the Field Link. The Field Link will simply skip over these unsupported option rows.
CC BEC and CC BEC Pro
CC BEC and CC BEC Pro have adjustable output voltages only. Use the BEC VOLTAGE row on the Field Link to change their output value.

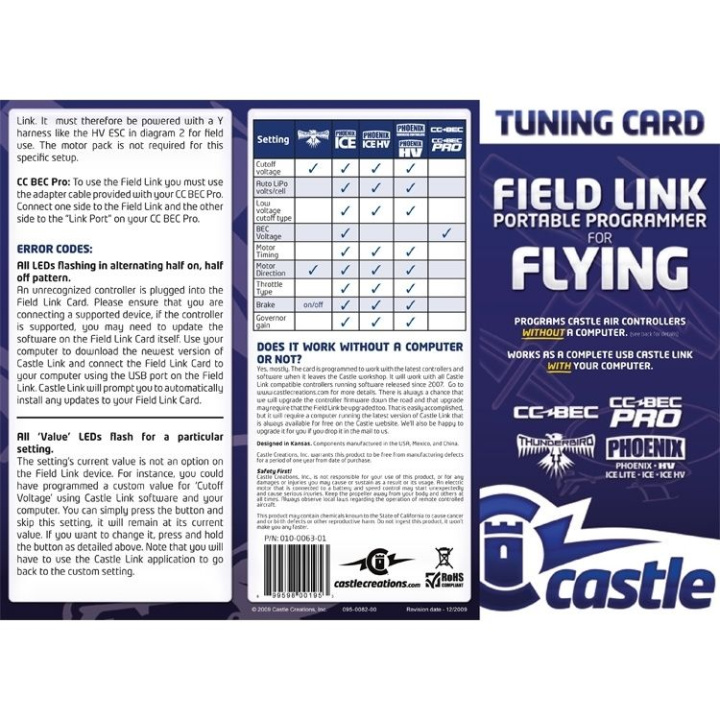

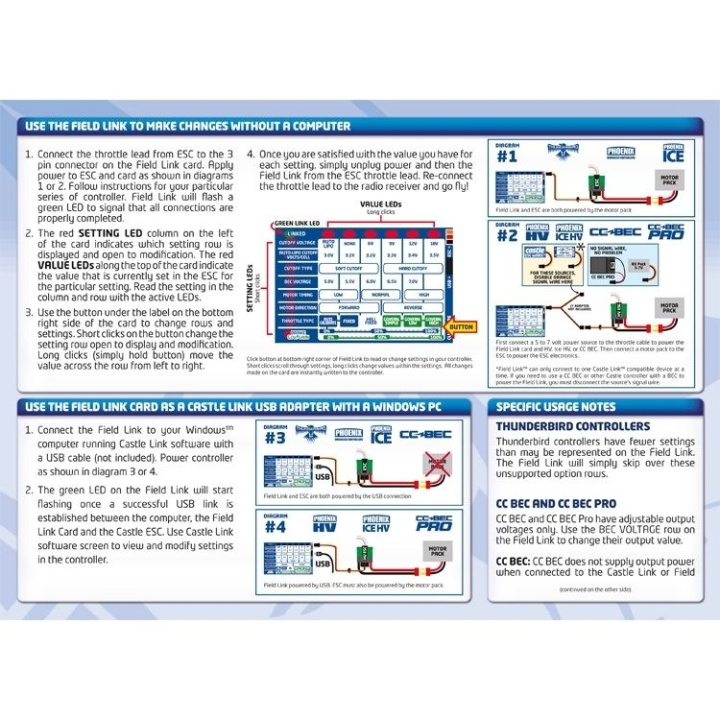

CC BEC: CC BEC does not supply output power when connected to the Castle Link or Field Link. It must therefore be powered with a Y harness like the HV ESC in diagram 2 for field use. The motor pack is not required for this specific setup.
CC BEC Pro: To use the Field Link you must use the adapter cable provided with your CC BEC Pro. Connect one side to the Field Link and the other side to the “Link Port” on your CC BEC Pro.
System Requirements:
Field Link is compatible with Windows 2000, XP and Vista (Windows Vista requires a specific installation process. See our Castle Link FAQ page for more information).
