QuicRun WP 10BL60 Sensorlöst Fartreglage 2-3S Bil 1/10* (Ersätts av 10BL60 G2)

Medelbetyg 0 av 5 Antal betyg 0
Artnr: HW30107100
Information

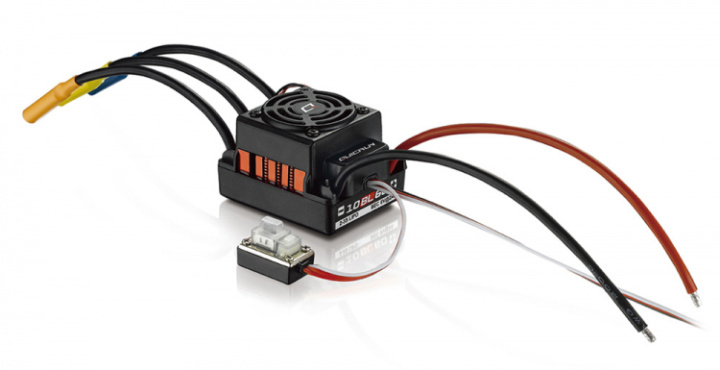

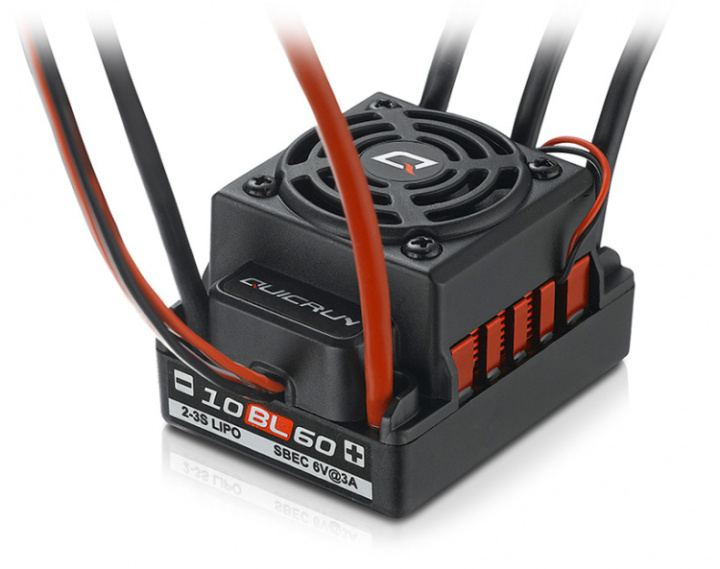

Hobbywing WP 10BL60 - 2-3S Sensorless Brushless 1/10 ESC

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

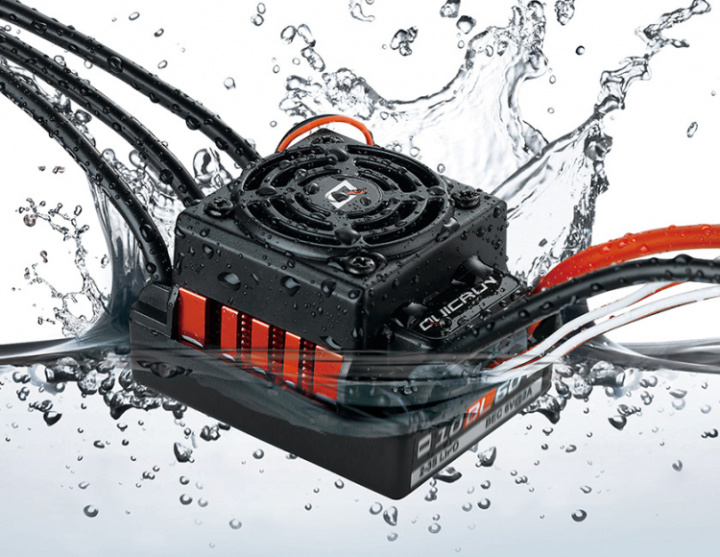

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-10BL60 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN 10BL60 to not only provide high power output but also overload protection of the ESC circuit.

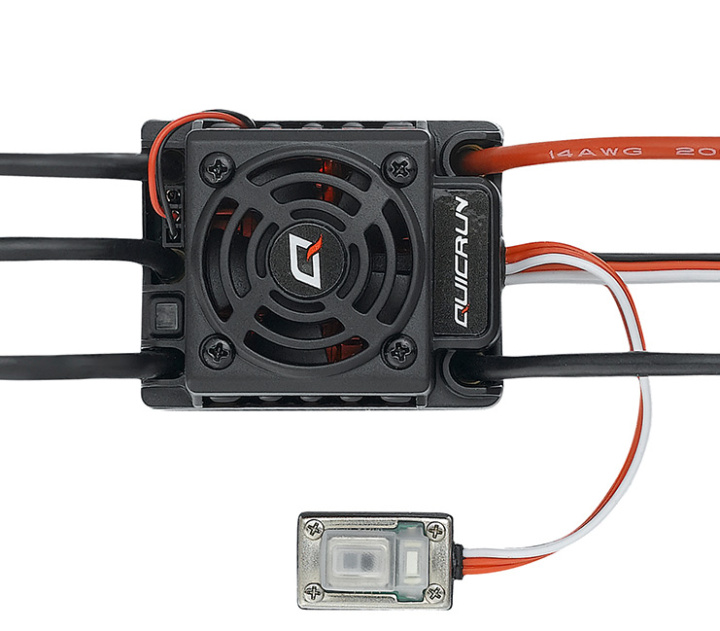

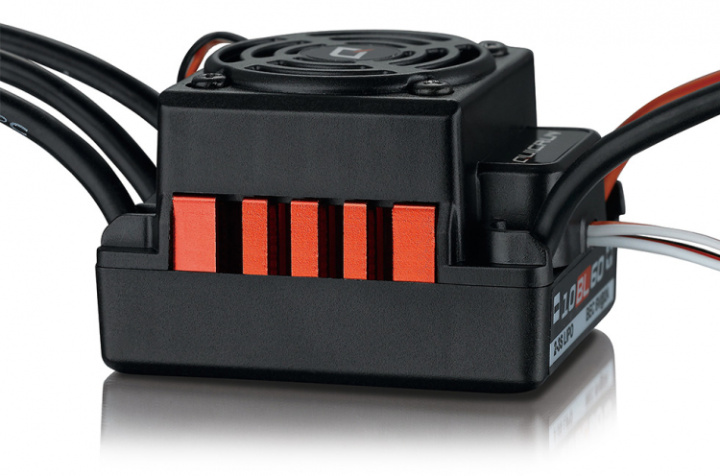

Efficient Cooling System
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.

Built-in BEC
The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this ESC compatible with various servos.

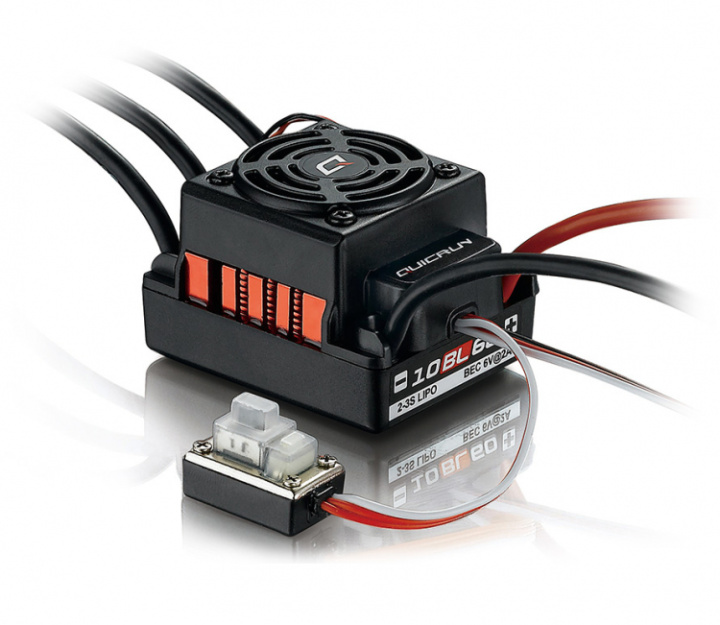

Single-button Programming & Factory Reset
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.


QuicRun WP 10BL60:
  • Scale: 1/10
  • Type: Brushless/Sensorless
  • Waterproof: Yes

Specifications:

  • Continous/Peak Current: 60A/360A
  • Input: 2-3S LiPo/6-9 Cells NiMH
  • BEC Output: Switch Mode:6V/3A

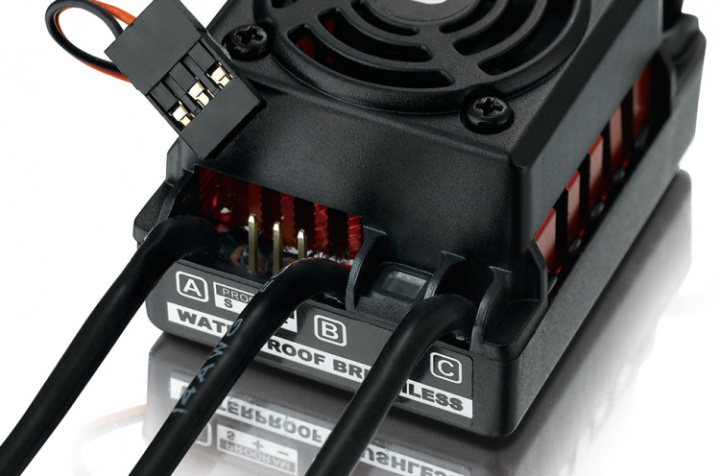

Wires & Connectors:
  • Input Wires: 14AWG/150mm
  • Output Wires: 14AWG/100mm
  • Input Connectors: No
  • Output Connectors: 4mm Gold Connector (Female)

Cooling Fan:
  • Size: 30 x 30 x 10 mm
  • Voltage Range: 5-7.4V
  • Powered by: BEC

ESC Programing via:
  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: FAN/Program Port
  • Firmware Upgrade: Not Supported

Size & Weight:
  • Size: 48.5 x 38 x 32 mm
  • Weight: 90g

Applications:
  • Motors: Sensorless Brushless Motors & Sensored Brushless Motors (only in Sensorless mode)

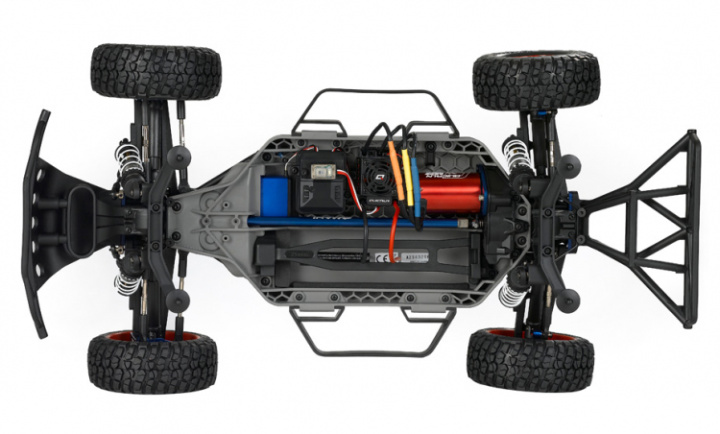

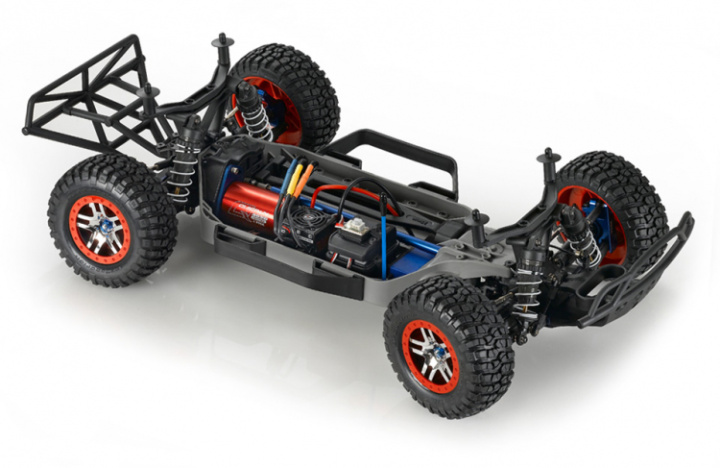

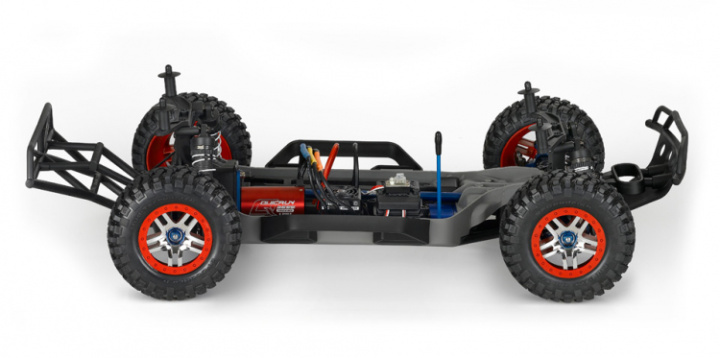

  • Vehicles: 1/10th Touring Cars/Buggies/Trucks/Monster Trucks

KV Rating/T Count:
  • 2S LiPo: 1/10th Touring Cars KV≤6000, 1/10th Buggies KV≤4000
  • 3S LiPo: 1/10th Touring Cars KV≤4000, 1/10th Buggies KV≤3000
    (36XX Series of Motors)

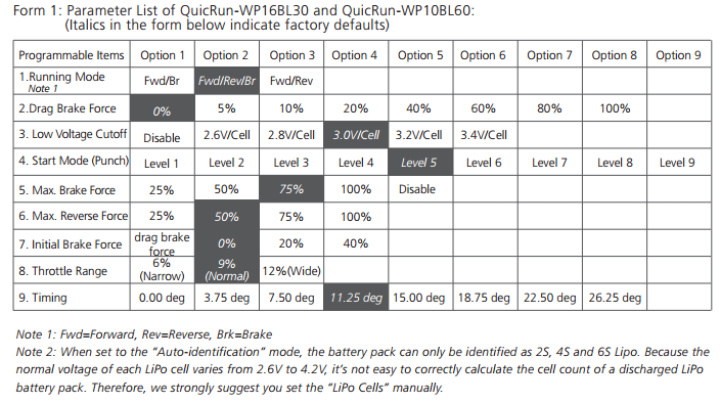

Programmable Items:

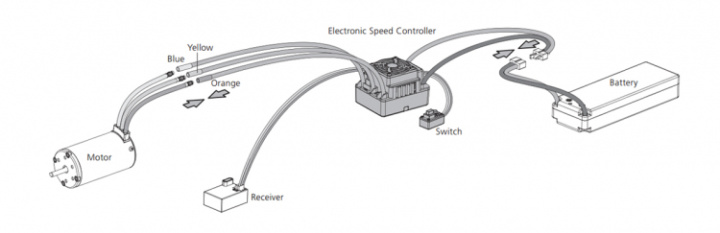

Installation & Connection:
Egenskaper
Datum produkten utgick ur sortimentet: 2024-07-24
Ursprungsland: CN
