Features:
- Fully waterproof design for all conditions
- Built-in switch-mode BEC with cont. current of 4A
- Tunable drag brake and drag brake rate for different vehicles, tracks and control feel
- Adjustable PWM frequency combined with advanced freewheeling technology guarantees great throttle linearity and driving feel
- 9 levels of acceleration/punch from soft to aggressive for different vehicles, tires and tracks
- Proportional brake with 9 levels of initial brake force, maximum brake force and drag brake force
- Multiple protection: low-voltage cut-off, thermal and throttle signa loss
- Separate programming port to easily connect LED program card to the ESC
- ESC programming via Hobbywing LED programming card
- Current: 80A (cont) & 400A (peak)
- Motor Type: Brushed 540/550/775 size

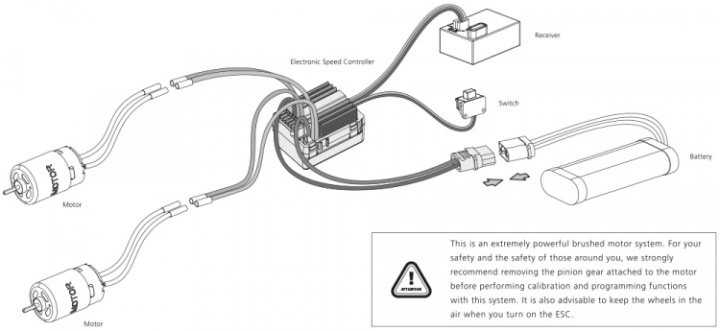

- Application: Various 1/10 & 1/8 vehicles with dual motors
- LiPo/NiMH: 2-4S LiPo or 5-12S NiMH
- BEC: 6V @ 4A (switch mode)
- Connectors: Input: no / Output: 4mm female bullet
- Size: 45.9 x 34.7 x 26.5 mm
- Weight: 75g
Motor Limits:
- 2S LiPo: >12T (540/550)
- 3S LiPo: >18T (540/550)
- 4S LiPo: >24T (540/550)
