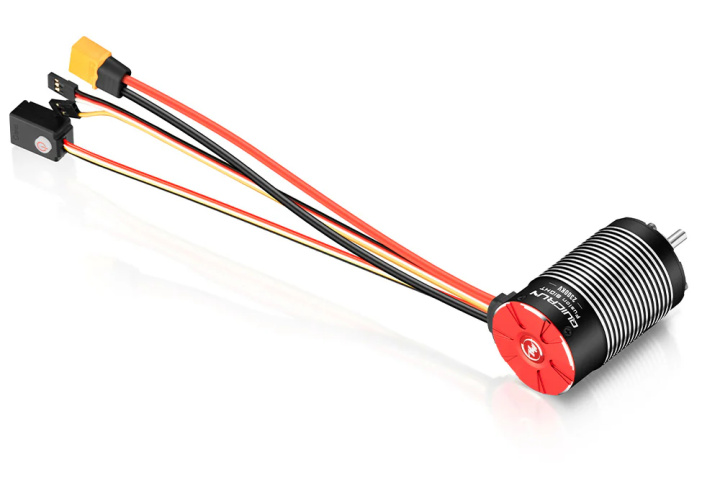

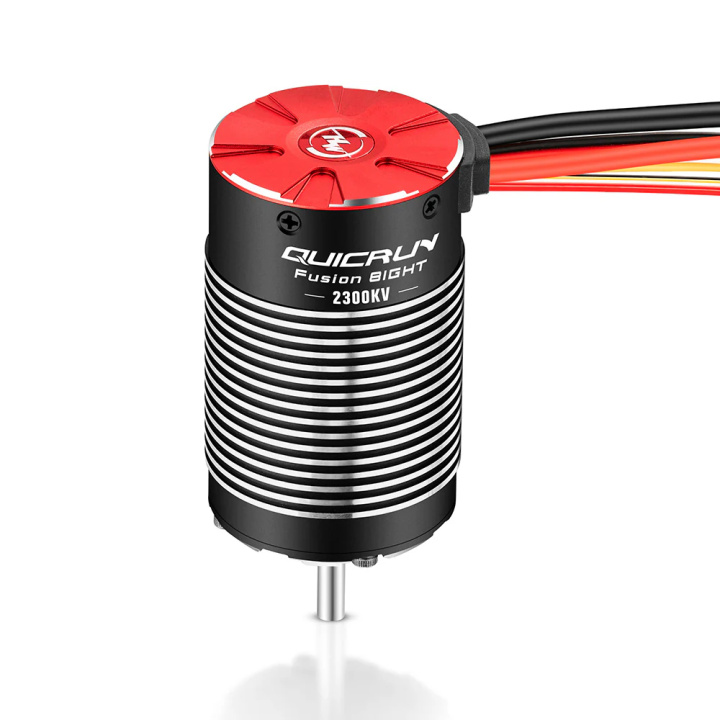

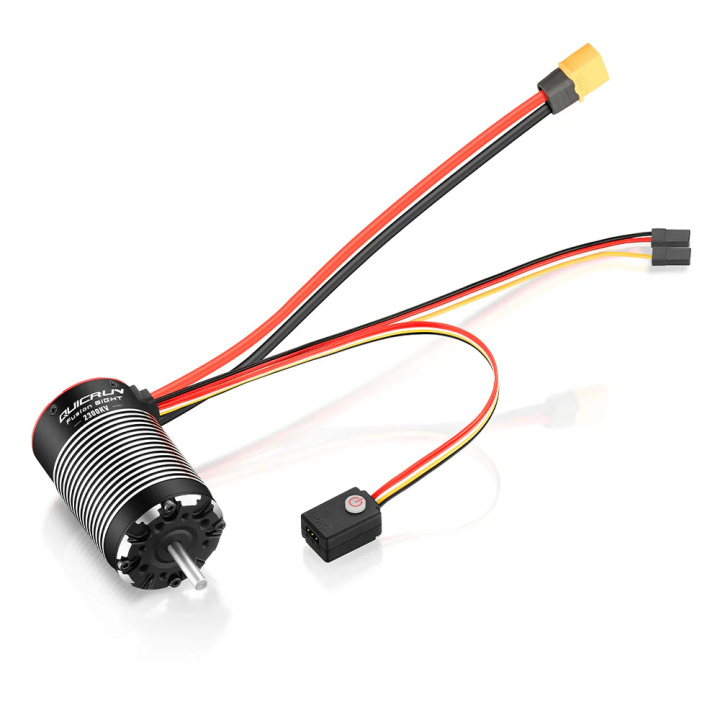

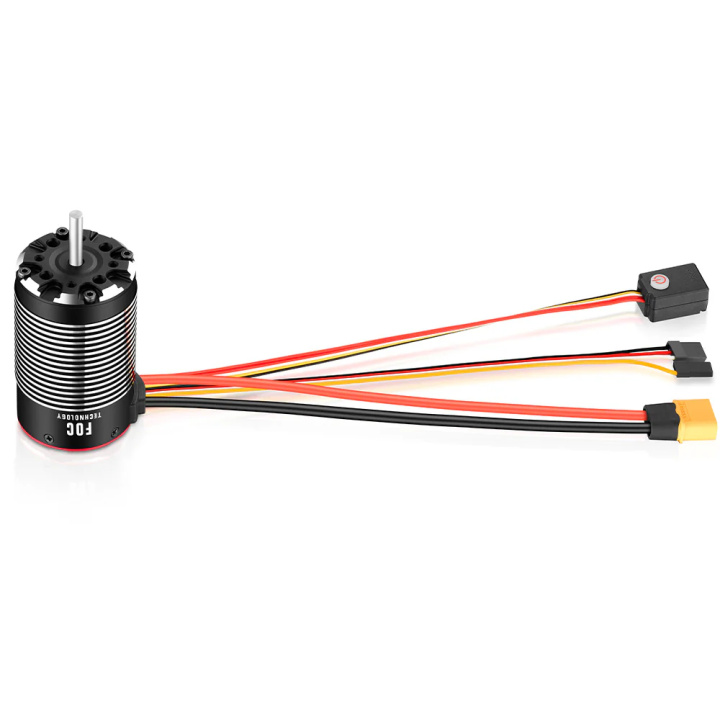

Hobbywing HW30120404 - QuicRun Fusion 8IGHT 2300kV Intergrated ESC 80A
- Enhanced Low-Speed Torque: The FOC driving mode optimizes torque for rock crawling, providing smoother, more controlled performance on challenging terrain.
- High Efficiency & Reduced Heat: High-efficiency operation reduces heat buildup, leading to longer runtimes and quieter motor performancecompared to traditional systems.
- IP67 Waterproof Protection: With an IP67 protection rating, this system ensures reliable, all-weather performance, even in wet and muddy conditions.
- Intelligent Torque and Speed Control: Active torque output adjustment and speed closed-loop control enable precise handling for better vehicle responsiveness on inclines and uneven surfaces-
- Superior Holding Power: The active drag brake force adjustment provides enhanced holding power on inclines, offering consistent and controlled braking.
- Built-In Switch Mode BEC: The system features a strong built-in BEC, delivering 6A continuous and 13A peak current, with adjustable voltages (6V, 7.4V, 8.4V) to power high-torque servos and accessories.
- Real-Time Drag Brake Adjustment: Real-time adjustment of the drag brake force is possible via your transmitter’s AUX channel, allowing on-the-fly tuning for varied driving conditions.
- Multiple Protection Features: Equipped with low battery, overheat, throttle loss, and lock-up protections, ensuring safe operation in demanding environments.
- Compatible with Program Boxes: Easily adjust ESC parameters using the LED or LCD Program Box Pro/G2, streamlining configuration and setup.
Specs:
- Scale: 1/8
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: Yes
- Cont./Peak Current: 80A/240A
- Input Voltage: 2-4S LiPo,6-12 Cells NiMH
- BEC BEC Output: 6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
- KV: 2300KV
- Motor Poles: 4
- Input Wires: Black-13AWG-250mmx1 Red13AWG-250mmx1
- Input Connectors: XT60
- ESC Programing via SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD G2 Program Box/LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Independent programming port(switch position)
- Firmware Upgrade: Not Supported
- Diameter / Length of motor: 42mm/69mm
- Shaft diameter / exposed shaft length: 5mm/18.5mm
- Weight: 338 grams（including wires&connectors）
- Vehicles: 1/8 Rock Crawlers
