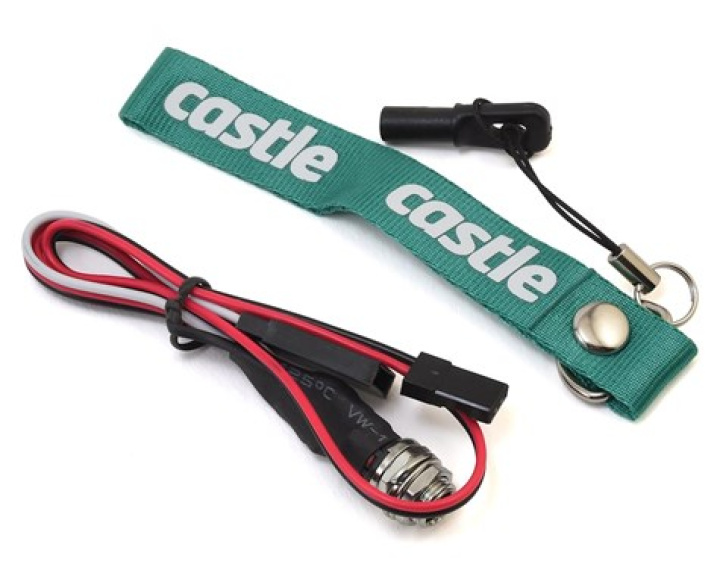

Features:
- Mounting: The socket may be installed through a panel or secured inside a fuselage.
- Wiring Diagram: Connect the white wire to the Aux Line (white wire) on an Edge ESC.Connect the red “+” wire to any servo wire with a Y harness or to any empty channel on the Receiver.
- Operation: Key in socket OR disconnected wire in socket harness = ARM LOCKED. A properly programmed and wired Edge will be incapable of arming when the key is in the socket. If the key is placed in the socket or the arm lock socket loses power, the ESC will go into a locked state - even if it is running. Key removed and power to socket = ARM UNLOCKED. ESC must receive low throttle signal to arm and run.
