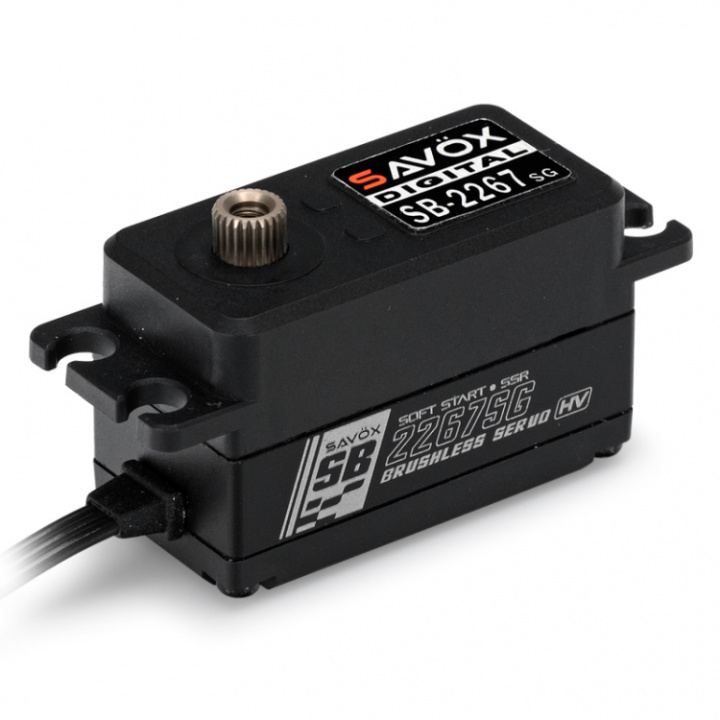

Savöx SB-2267SG - Monster Torque, High Voltage, Low Profile, Brushless, Steel Gear Servo
This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.Tech Specifications:
- Servo Technology: Digital High Voltage
- Input Voltage: 6-8.4V
- Motor Type: Brushless
- Gear Material: Steel
- Output Gear Spline: 25 Tooth
- Bearings: 2 Ball Bearings
- Connector type: JR
- Case: Composite plastic top & bottom, aluminium middle
- Torque @ 6.0V: 18kg/cm
- Speed @ 6.0V: 0.10s/60deg
- Torque @ 7.4V: 25kg/cm
- Speed @ 7.4V: 0.08s/60deg
- Torque @ 8.4V: 32kg/cm
- Speed @ 8.4V 0.065s/60deg
- Dimensions (LxWxH): 40.8x20.2x26.05mm
- Weight: 57g
- Operating Temperature: -10°to +50°C)
- Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
- Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
- Wire Length: 300 +/- 5mm
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
