SC-0253MG Plus Servo 6Kg 0,15s Metalldrev
Artnr:
SAV-SC0253MGPLUS
Lev.artnr:
SC-0253MGPLUS
Lagersaldo:
25 st
Cirkapris:
389 kr
- Information
- Soft Start
- SSR compatible
- DC motor
- Strong metal gear train for added durability
- Ideal for 1/10 cars and planes
- Great replacement for standard servos with plastic gearing
- Torque @ 4.8V: 4kg/cm
- Torque @ 6V: 6kg/cm
- Speed @ 4.8V: 0.17sec/60°
- Speed @ 6V: 0.15sec/60°
- Dimensions L x W x H: 40.7x20x37mm
- Weight: 59g
- Operating Temperature: -10° to 50°C
- Running Current (no load): 220mA @4.8V, 240mA @6.0V
- Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 120° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 164° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed

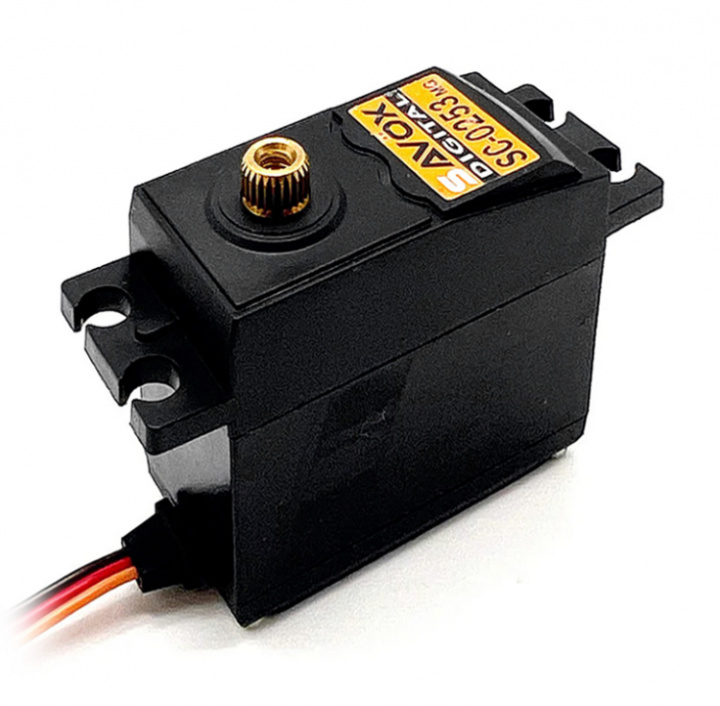

SAVÖX SC-0253MGPLUS - Metal-Geared Digital Standard Servo
The SC-0253MG Plus is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.
Features:
Specifications:
Technical Details:- Egenskaper
-
Längd: 40,7 mm Bredd: 20,0 mm Höjd: 37,0 mm Vikt: 59 g Max Drivspänning: 6,0 V Hastighet vid 4,8V: 0,17 sek/60° Hastighet vid 6,0V: 0,15 sek/60° Styrka vid 4,8V: 4,0 kg/cm Styrka vid 6,0V: 6,0 kg/cm Egenskaper: Digitalt , Dubbla Kullager , Metalldrev - Delar
-
