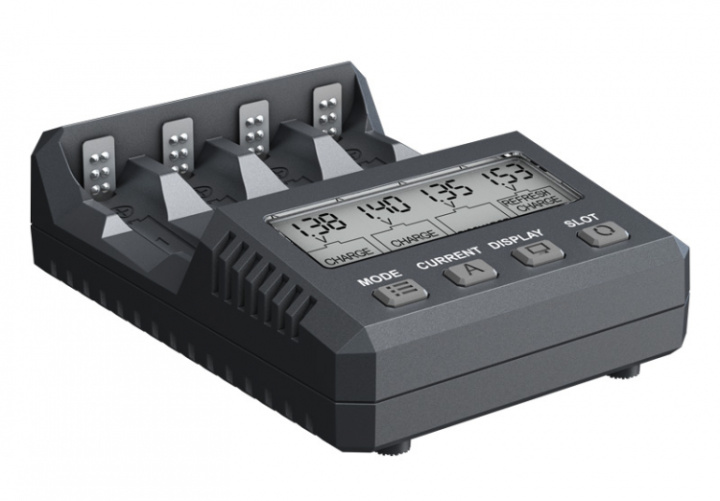

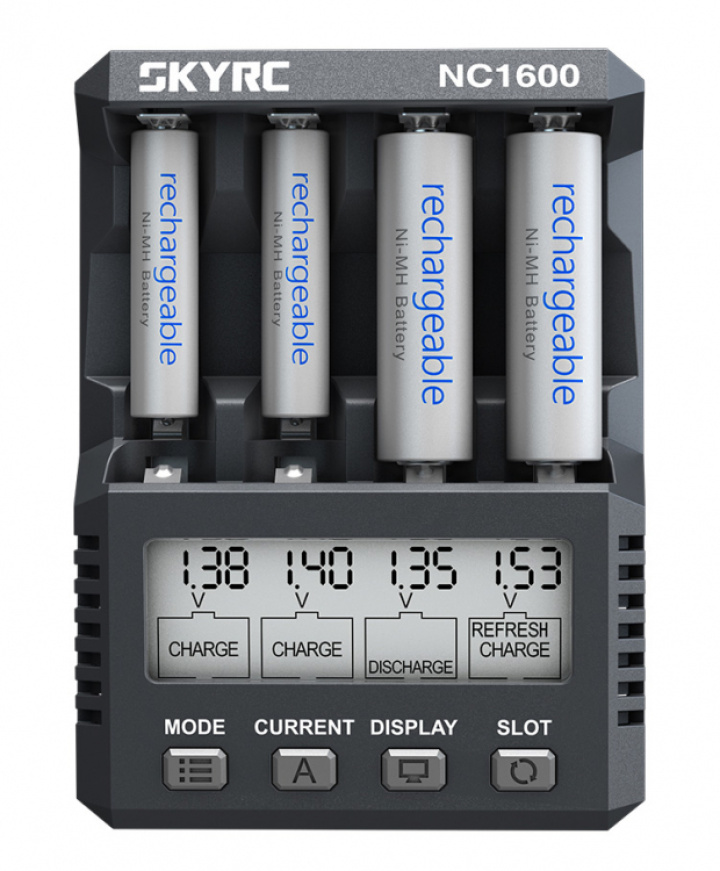

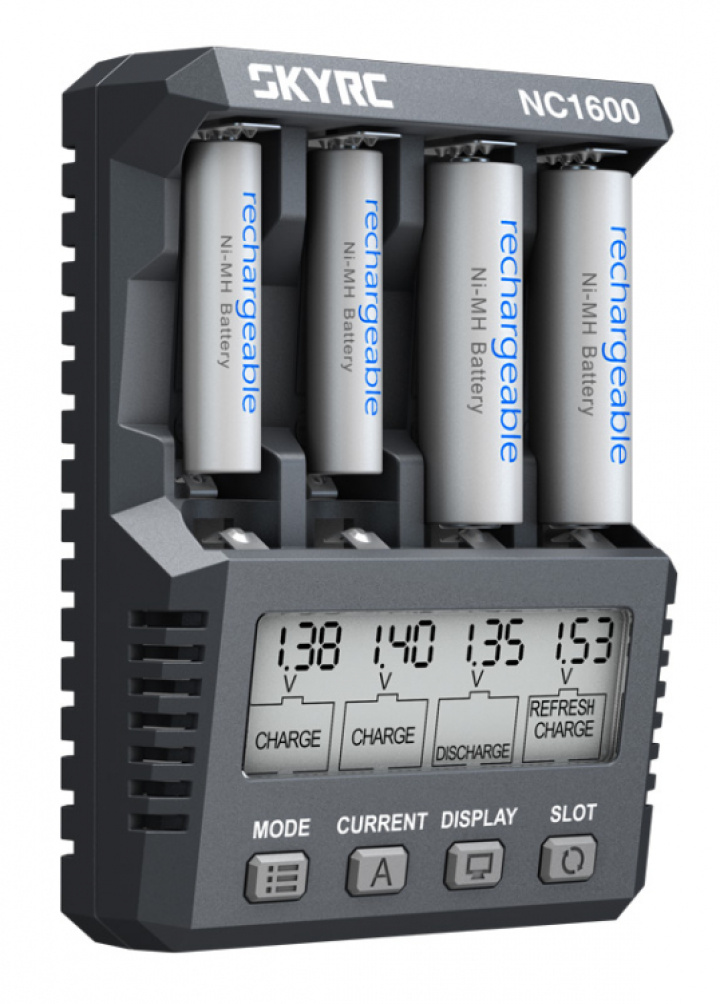

SkyRC NC1600 Laddare NiMH AA/AAA

SkyRC SK100191 - NC1600 AA/AAA NiMH/NiCD Charger

SkyRC NC1600 charger is capable of charging, discharging and refreshing AA/AAA NiMH/NiCD batteries at a faster speed with the smart and high-accuracy chip. It's safe, reliable and energy-saving. The charger has three working modes: charge, discharge and refresh. Equipped with a LCD screen, various battery parameters and real-time datas are all at a glance!

4 Independent Battery Slots
1-4 pcs of NiMH AA, or AAA can be charged at the same time in any combinations.

Compact Display
Equipped with the LCD screen, various battery parameters and real-time datas like battery voltage, current, capacity, elapsed time, and internal resistance are all at a glance!

Auto-charge
The charger will start charging automatically with the charge rate of 800mA as default if no operation within eight seconds after the battery is inserted.

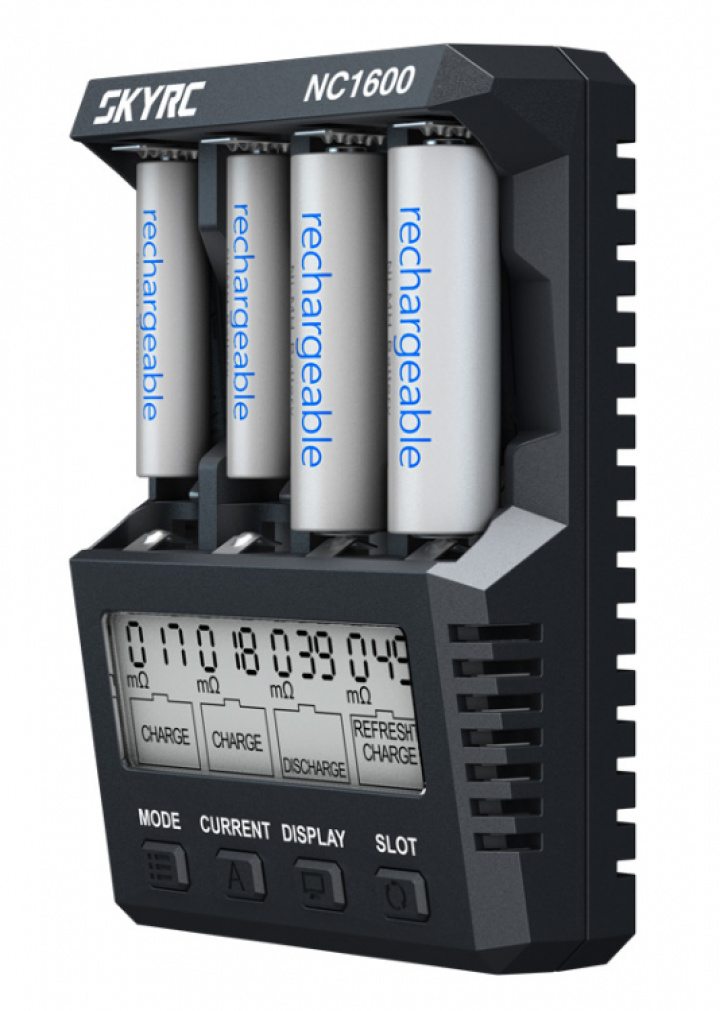

Battery IR Measurement for Recognizing Battery Health
The charger is capable of measuring the battery internal resistance of each slot accordingly, which helps the user recognize the battery's performance and health!
*The internal resistance is estimated and may vary depending on the battery's state of health and operation environment.

Trickle Charge
The charger will automatically turn to trickle charge once the battery is fully charged. This is used to replenish capacity lost due to self-discharge of the battery and ensure the battery is truly fully charged. With a quite low pulse charge rate of 30-70mA, the batteries' life can be extended easily!

Type-C Port: Charge Anywhere, Anytime!
Equipped with commonly-used Type-C power port, the charger can be powered by the popular smart phone chargers in the market. Get charge anywhere and anytime without buying extra adaptors!

Specs:

• Size: 108x79x32.9mm
• Weight: 114g
• Input Power: 15W QC3.0, PD 5V/3.0A or 5V/2.1A
• Battery Type: NiMH/NiCD
• Battery Size: AA/AAA

Charge Rate when powered by 15W QC3.0, PD 5V/3.0A adaptor:

• 1600mA/slot for 3 batteries
• 1500mA/slot for 4 batteries

Charge Rate when powered by 5V/2.1A adaptor:

• 1600mA/slot for 2 batteries
• 1000mA/slot for 4 batteries

• Discharge Rate: 100-700mA
• Trickle Charge Rate: 30-70mA
• Working Modes: Charge, Discharge and Refresh mode -△V: 7mV
• Discharge Cut-off Voltage: 0.9V
• Capacity Protection: 3000mAh
• Working Temperature: 0-40℃
• Working Humidity: 10-90%RH
• Storage Temperature: -10-70℃
• Storage Humidity: 20-70%RH
