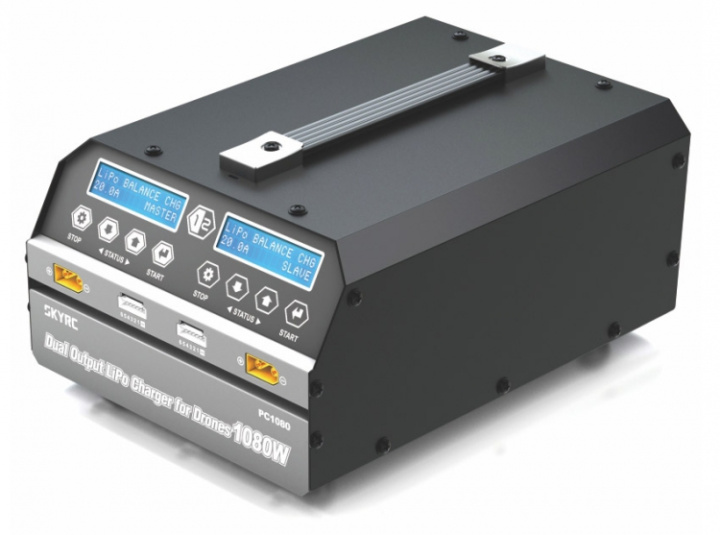

PC1080 Dual Channel Lithium Battery Charger - 1080W 20A
Skyrc PC1080 is a dual channel charger, which can charge 2 pack of 6s LiPo batteries at the same time. What's more, the charger is equipped with master-slave control mode, which allows you to synchronize more than one charger when charging same batteries.Features:
- Support charging 2 packs of 6s LiPo batteries simultaneously
- Support high voltage LiPo (LiHV) battery
- Memorizing last charging current
- Three working modes: balance charge, storage & charge
- Master & Slave mode available
- Synchronize 2 or more chargers via data cable.
- Maximum safety: short circuit protection, reverse polarity protection & over heat protection
- Adjustable charging current
- 2x16 LCD screen
- Real time charging/ discharging status display
- Battery voltage meter
- Battery internal resistance meter
- Firmware upgrade via USB port
LiPo Balance Charge

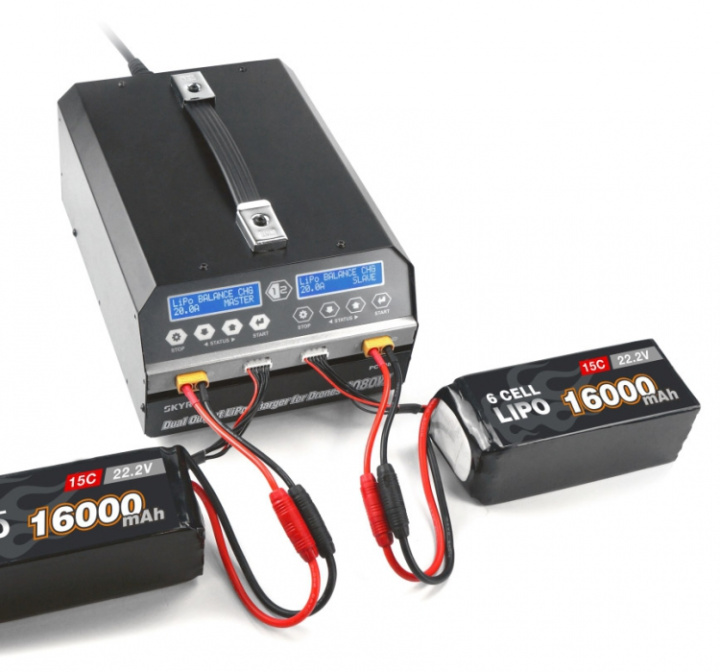

Charging 2 pack of 6S LiPo battery simultaneously

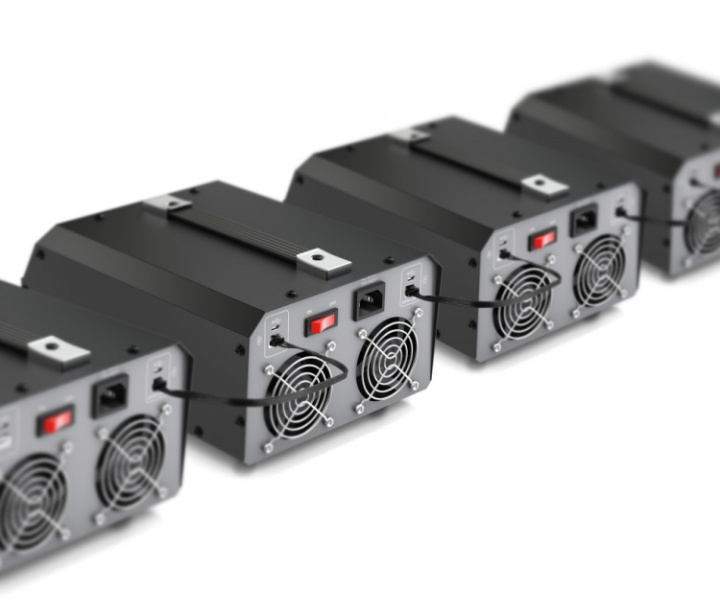

Multi-Charger Synchronization
Connect the chargers with data cable, all the other channels can be set by the master channel. It is useful and saves much time.
Specs:
- Dimension: 272 x 202 x 118.6 mm
- Weight: 4.88 kg
- Input Voltage: 100-240V
- Output Power: 1080W (2x 540W)
- Discharge Power: 100W (2x 50W)
- Charge Current: 2x 1.0-20.0A
- Balance Current: 1.2A
- Battery Type: LiPo & LiHV
- Battery Cell Count: 2x 6S
- Power Connectors: XT90
Working Modes:
- Balance Charge Mode
- Storage Mode
- Charge Mode
