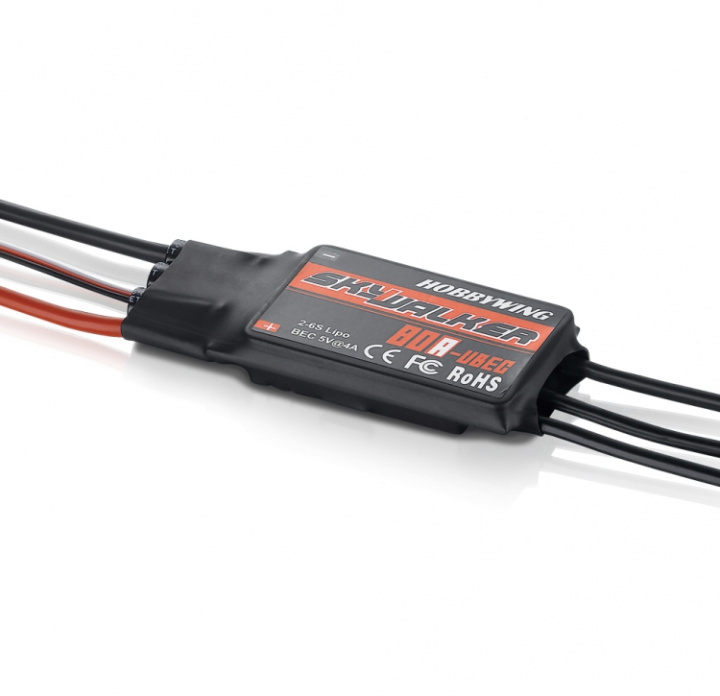

High Quality & Reliability
Good quality comoponents guarantees the high quality and reliability of SkyWalker series of aircraft ESCs.
Programmable Parameters
With a LED program card, then you can program relevant parameters on your Skywalker to your personal preference.
Multiple Protections
Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.
Specifications
- Brushed/Brushless: BL
- High Voltage/Regular: Regular
- Cont./Peak Current: 80A/100A
- Input: 2-6S LiPo
- BEC Output: Linear mode:5V,5A
- Input Wires:
Red-12AWG-150mm*1
Black-12AWG-150mm*1 - Output Wires: Black-14AWG-100mm*3
- Input Connectors: No
- Output Connectors: No
- Transmitter: Supported
- LED Program Card: Supported
- LED Program Box: Not Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- Program Port: Program/Throttle Wire
- Firmware Upgrade: Not Supported
Size & Weight
- Size: 86.0x38.0x12.0mm
- Weight: 82g
