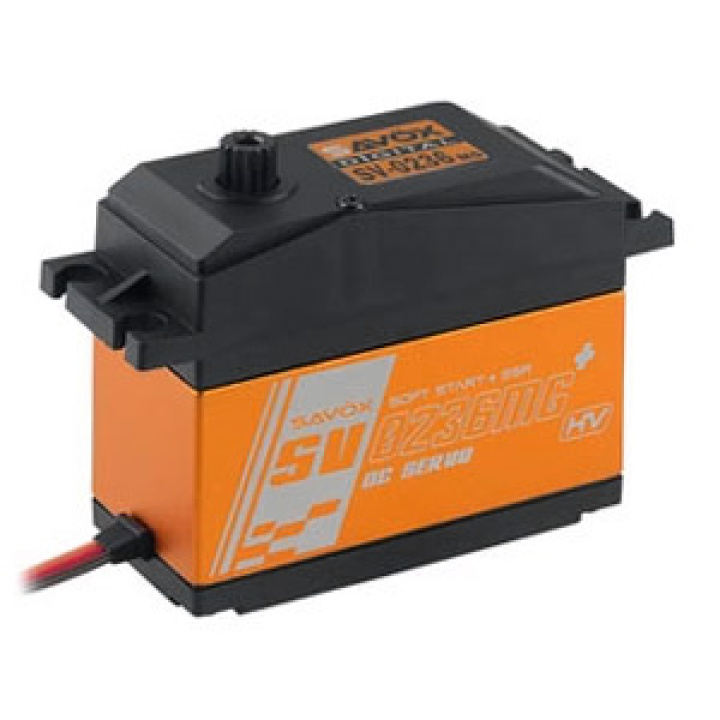

SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo
The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.Features:
- Soft Start
- SSR compatible
- High Voltage
- Ideal for 1/5 scale off road and large scale aircraft applications
- Strong metal gear train for added durability
- Extremely high torque output
- Capable of operating on high voltage
Specifications:
- Torque @6v: 30kg
- Torque @7.4v: 40kg
- Speed @6v: 0.21sec/60deg
- Speed @7.4v: 0.17sec/60deg
- Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
- Weight: 200g
Tech Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 150mA @6.0V, 180mA @7.4V
- Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 15 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
