Velineon VXL-4s BL Fartreglage & 540XL 2400kV Motor

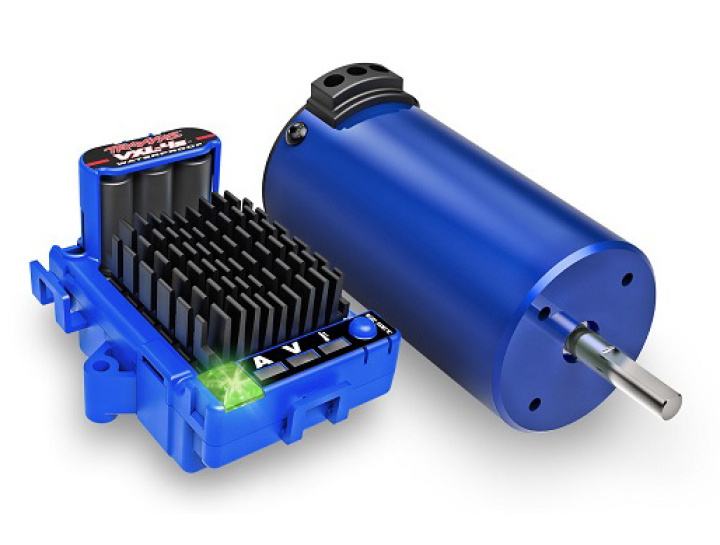

Traxxas 3440 - Velineon VXL-4s Extreme Brushless Power System

The Velineon® 4s brushless power system takes your RC experience to the extreme with the monstrous torque of the Velineon 540XL brushless motor and innovative VXL-4s™ ESC. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra large heat sink allows the ESC to run cooler for extended run times.

VXL-4s Brushless Power System Features:

• VXL-4s Electronic Speed Control
• 2s–4s LiPo compatible
• Real-time telemetry via Traxxas Link™
• Selectable 7.4-volt high-voltage BEC
• High-Resolution Linear Braking
• More precise than conventional systems
• Superior brake modulation on the track
• Large heat sink accepts accessory cooling fan (3340)
• Three programmable drive profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse
• Traxxas EZ-Set® one-button setup
• Integrated protection circuits
• LED status lights

Velineon 540XL Brushless Motor

• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Low-maintenance design

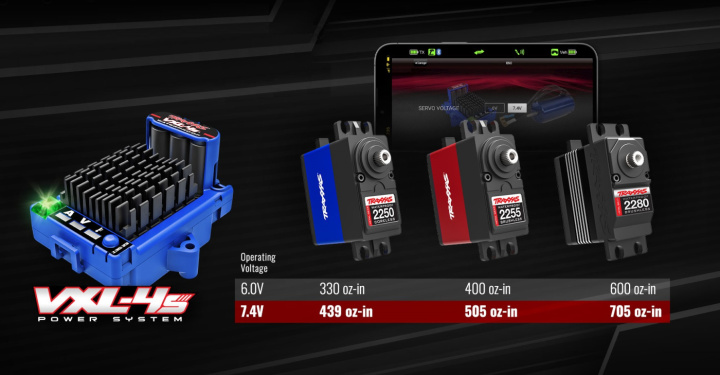

High-Voltage BEC
The Velineon VXL-4s features a high-voltage BEC with a 6.0 volt setting for standard servos and powerful 7.4 volt setting for high-performance servos like the Traxxas 2280, 2255, and 2250. Powerful brushless servos like the High-Torque 600 gain over 20% more torque at 7.4 volts with faster transit times. Selecting a voltage is quick and easy using the Traxxas Link app.

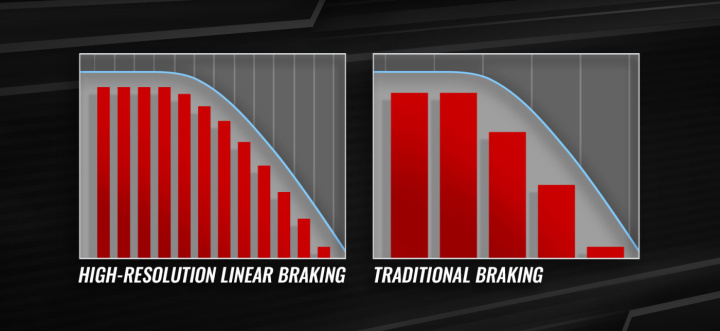

High-Resolution Linear Braking
Velineon VXL-4s High-Resolution Linear Braking is a patent-pending Traxxas innovation that delivers next-level smoothness and precision. The High-Resolution communication loop allows instant response to the driver’s input for powerful and intuitive linear braking feel. From feather touch speed correction to full-power late braking to overtake on the inside line of a corner, the driver stays fully connected and in control for a competitive edge on the track. The optional Traxxas Link app adds easy control over brake force to tune for different needs and conditions.

VXL-4s Compatibility Chart:
­Direct Bolt-In Installation for These Models:

• Raptor R™
• Rustler® 4X4
• Stampede® 4X4 (Only 3445 ESC required)

Requires 9030 receiver box:

• Rally 4X4
• Slash 4X4

Recommended Upgrades:

• Extreme Heavy-Duty Upgrade Kit (9080)
• Center differential (6780 or 6780A)
• Battery expansion kit
• Spring and suspension tuning for additional weight
• New 5 mm pinion and spur gears to compensate for lower motor kV rating
• Recommend 6-7 tooth increase on pinion gear

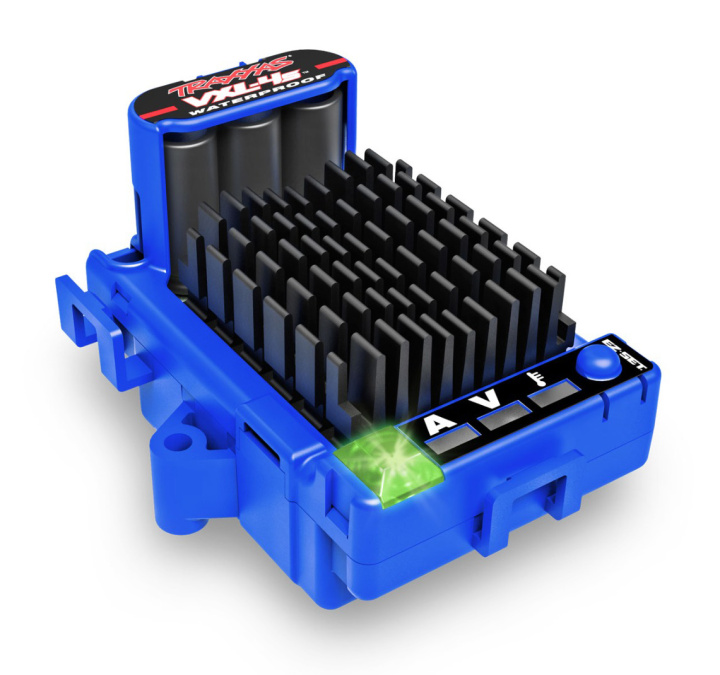

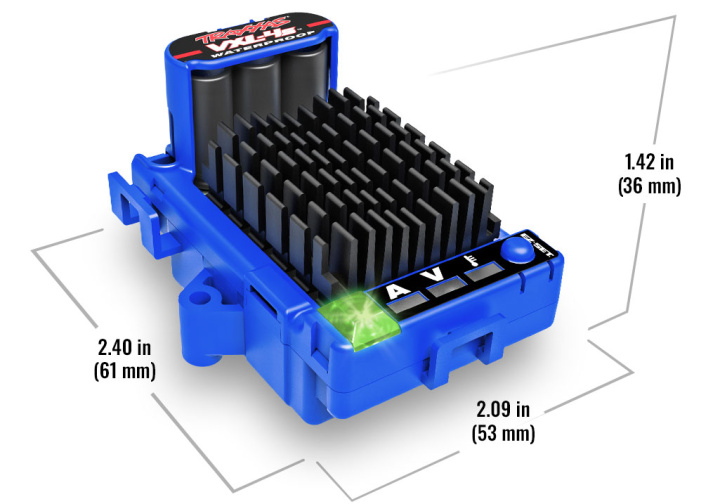

VXL-4s Waterproof ESC (3445) Specifications:

• Input Voltage: 2s-4s LiPo (7.4 V - 16.8 V)
• Case Size: 61 x 53 x 36 mm
• Weight: 119 g
• BEC Voltage: Selectable 6.0 or 7.4 volts
• Motor Connectors: Traxxas 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors
• Thermal Protection: Two-stage thermal shutdown
• Ports: RX input, auxiliary fan connector

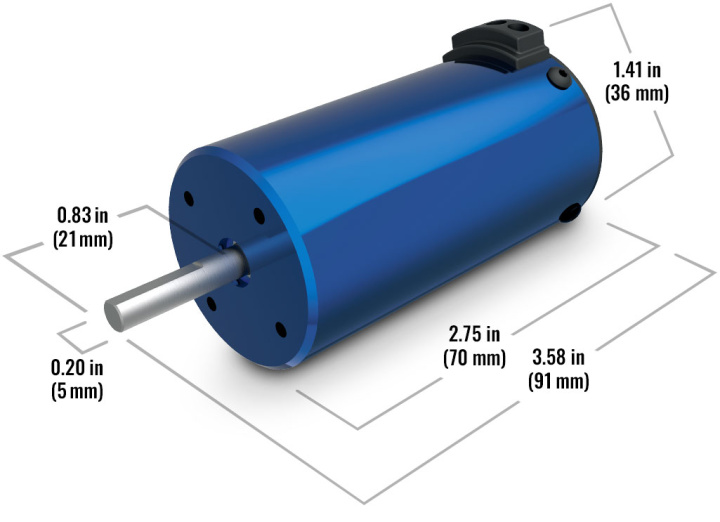

Velineon 540XL (3461) Specifications:

• Motor Type: 2400 Kv sensorless brushless
• Weight: 317 g
• Length: 91 mm
• Diameter: 36 mm
• Connector Type: 6.5 mm bullet connectors
