- Wingspan: 1,400 mm (55.1 in)
- Length: 1,350 mm (53.15 in)
- Flying weight: 3.7 kg (8.14 lbs)
- Wing area: 34dm2
- Wing loading: 107g/dm2
- Wing type: Naca airfoils

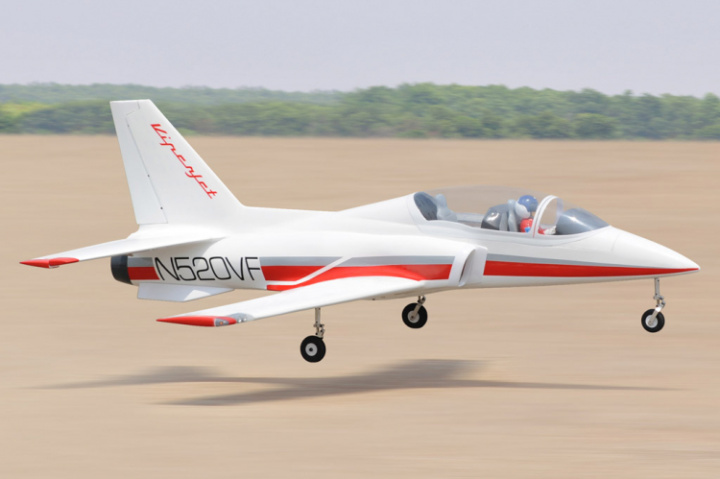

- Gear type: Electric retract gear, size: (73.5 x 44 x 28)mm (not included)
- CNC suspension metal struts (included)
Parts listing required (not included):
- Radio: 08 channels
- Servo: 08 standard high torque servos, size: (29 x 13 x 30)mm
- EDF: 90mm
- Battery: 8S LIPO 29,6V
- Speed control: 100A
Recommended EDF and Battery set up (not included):
- EDF: 90mm, Minimum thrust 3.7kg. Midi-fan evo/ HET 650-68-1500 WeMoTec
- Lipo cell: 8 cells / 5000mAh 55C
- ESC: 100A Phoenix Castle
- Receiver battery: 6V / 1200-2000mAh
NOT INCLUDING ELECTRIC RETRACT GEAR.
ONLY INCLUDING CNC SUSPENSION METAL STRUTS.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
