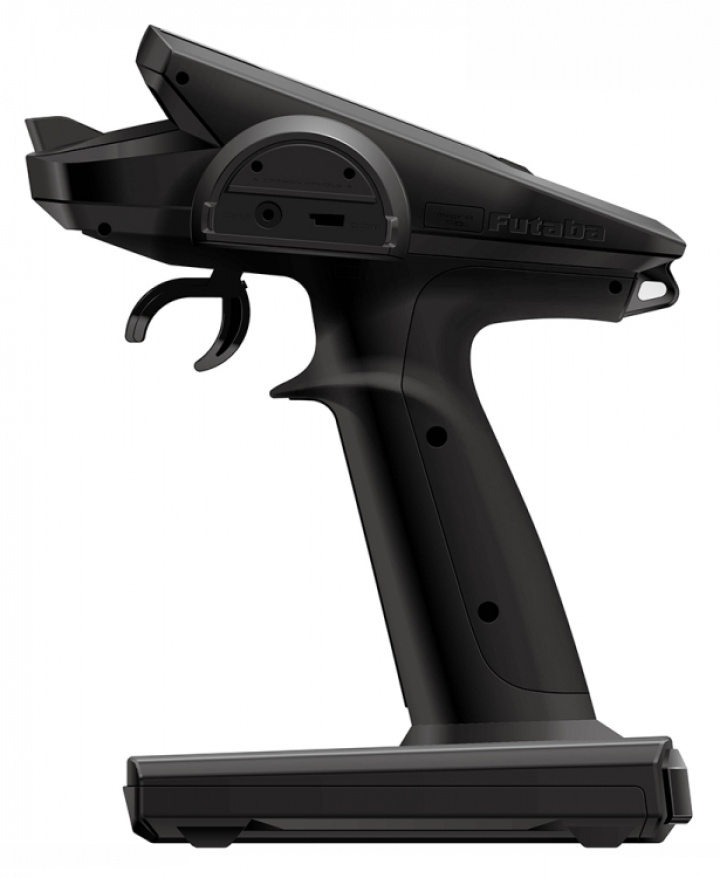

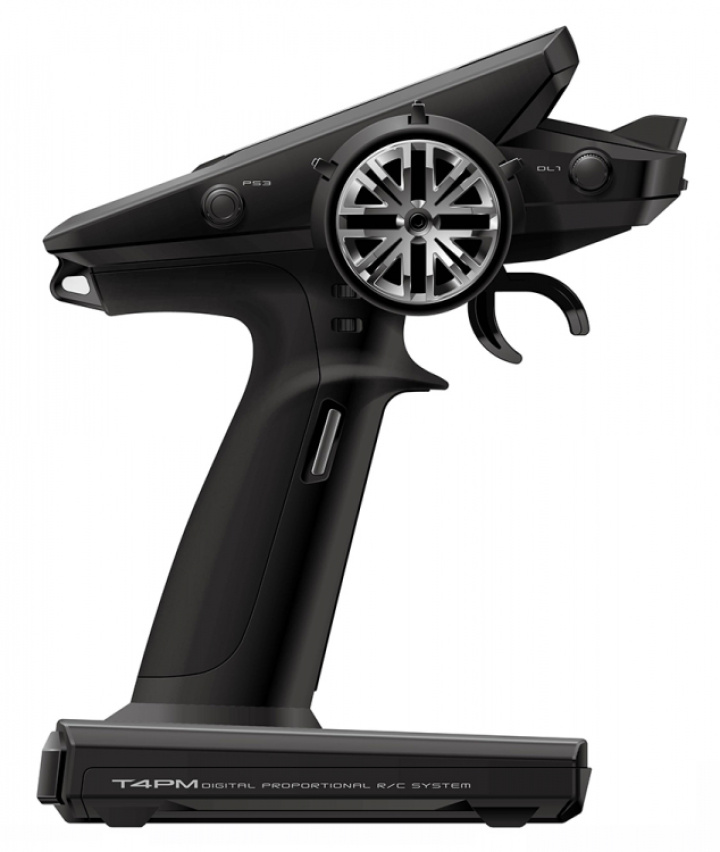

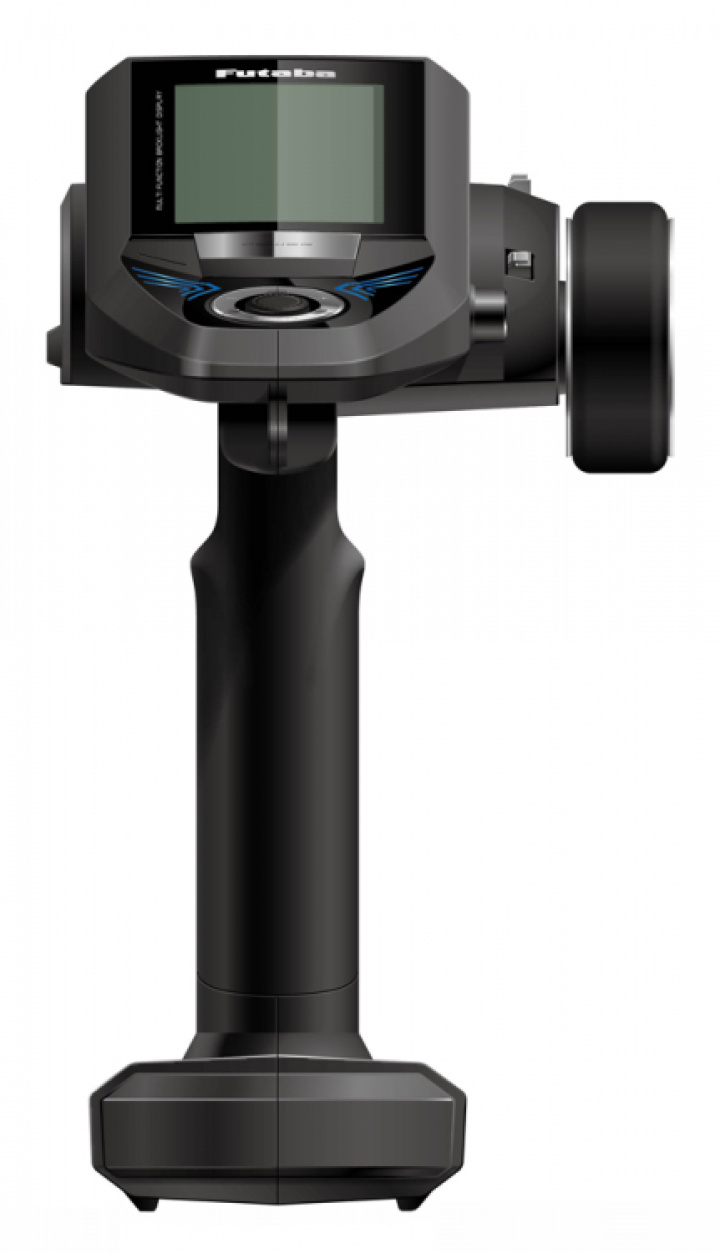

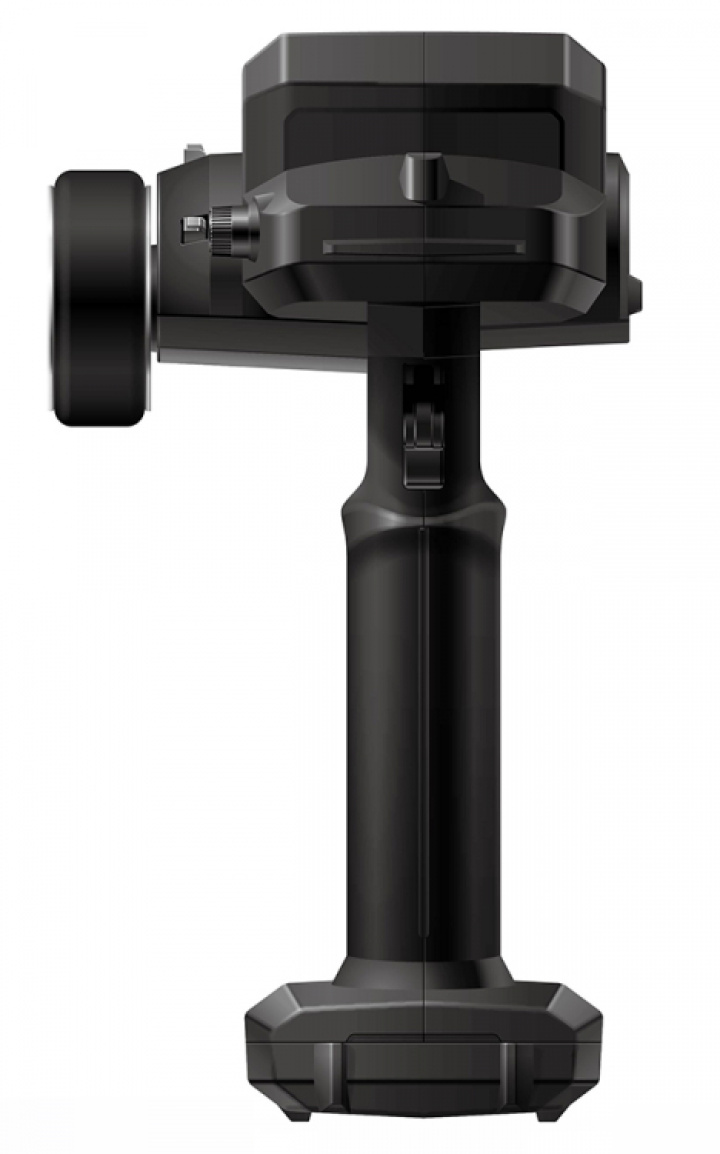

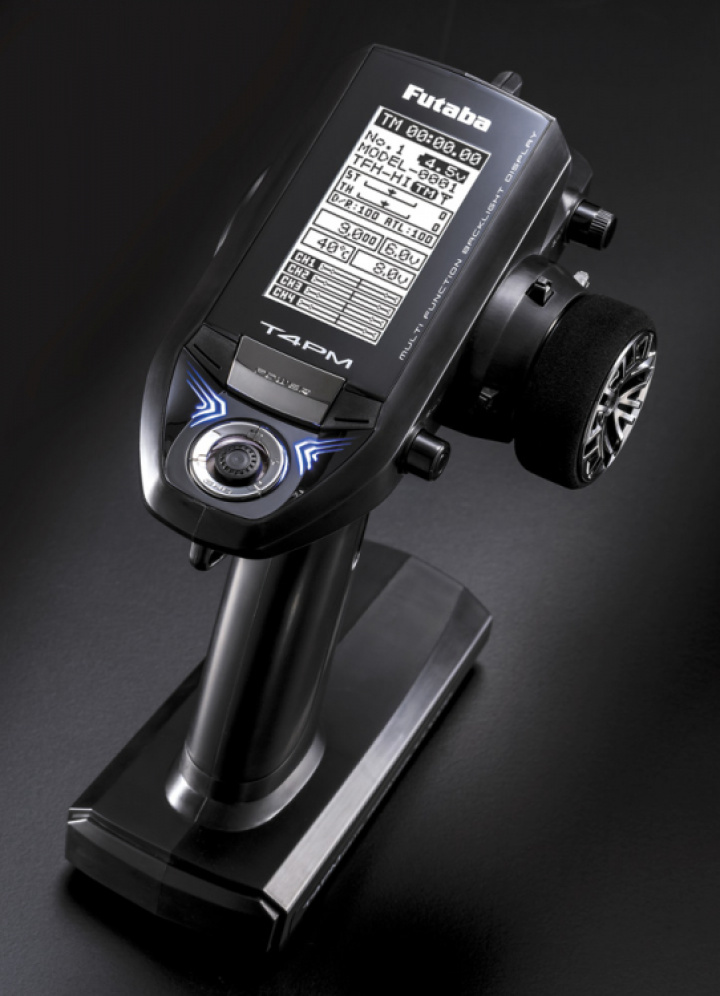

Futaba T4PM T/S-FHSS Radio with R304SB Receiver
This is the new 4-channel wheel/trigger radio from Futaba that replaces the earlier T4PL(S) and T4PV radios.System:
- T-FHSS (Mini-Z mode)
- T-FHSS (SR mode)
- T-FHSS (High speed)
- T-FHSS (Normal mode)
- S-FHSS (High speed)
- S-FHSS (Normal mode)

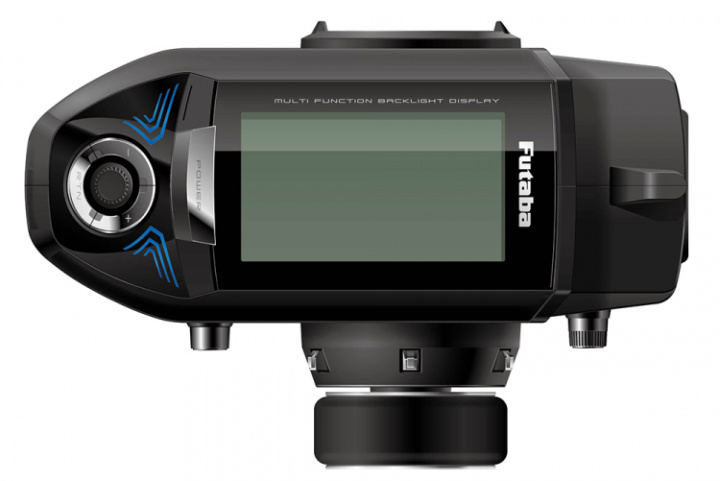

Display:
- 2.7" 128x64 dot matrix with back-light
LED:
- 1x Blue
Alarm Buzzer:
- Tone Adjust
Telemetry:
- RX voltage
- RPM
- Temprature
- External voltage
- Current
Telemetry Log:
- 100 times
Updates:
- Through SD Card Slot (card not included)
Method of connecting external devices:
- MC Link with wire
- MC970 Link with wire
- MC970 Link wireless
- S.BUS Servo Link with wire
- S.BUS Servo Link wireless
Standard Batteries (not included):
- 3x AA Alkaline
Optional LiFe Batteries (not included):
- FPEBA0135
- FPEBA0140
- FPEBA0144
- FPEBA0148
Control Functions:
- 3x Wheel digital trim
- 2x Grip digital trim
- Dial
- Push switch
- Push lock-switch
Display Adjust:
- 1x Jog key
- 3x Tact switch
Other Features:
- Internal antenna (fixed)
- Charging jack
- Connector for inductive charging system
- Wheel／trigger tension adjustment
- Trigger position adjustment
Model Memory:
- 40 Models
Data/Model Transfer:
- T4PM to T4PM (with DSC cable)
Language:
- English or Japanese
Mixing:
- Condition 2 lines (new)
- Steering speed x2 rate
- Throttle speed x2 rate
- AUX Speed x1 rate each
- ABS Brake
- Traction control
- Programable mixers x2
- STR mixing (ackerman)
- Brake mixing
- 4WS
- Gyro mixing
- Dual ESC
- CPS mixing (with Futaba CPS-1)
Specific functions:
- SR mode is included
- SR mode, SX update through SD card (with T4PM update)
- Ｍini-Z mode
- Included Car type select／easy set up
- Drift functions added (throttle speed, over rev)
- Lightest wight in this class
- Current sensor
- SD card slot included (for updates)
Weight:
- Transmitter: 350g (excluding batteries)

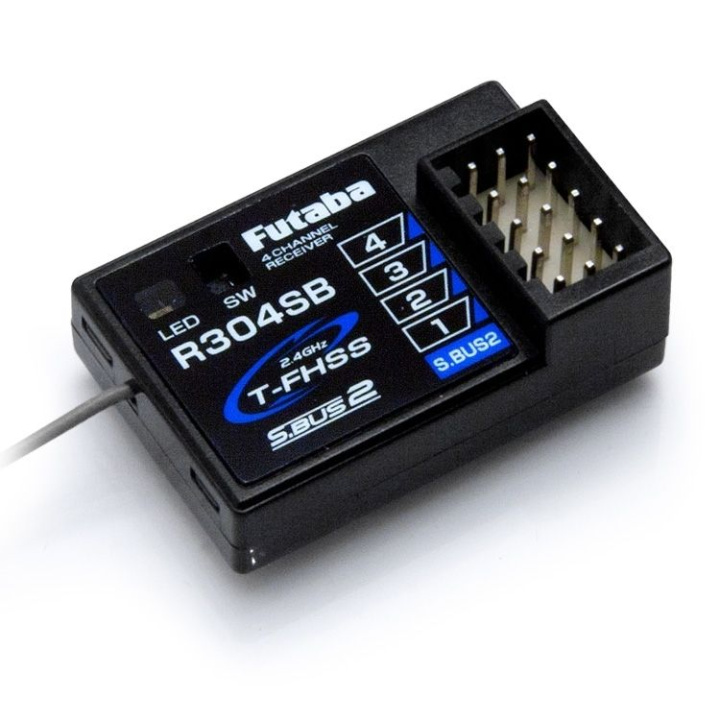

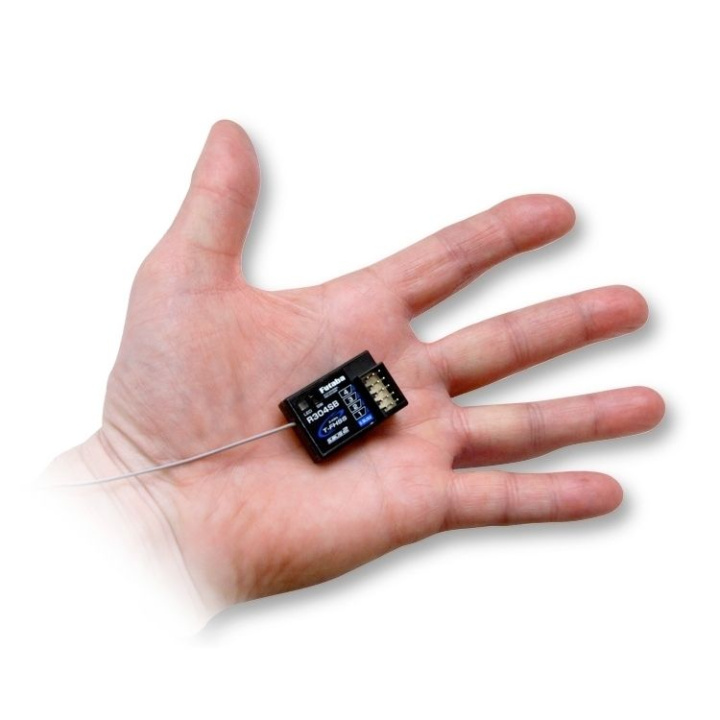

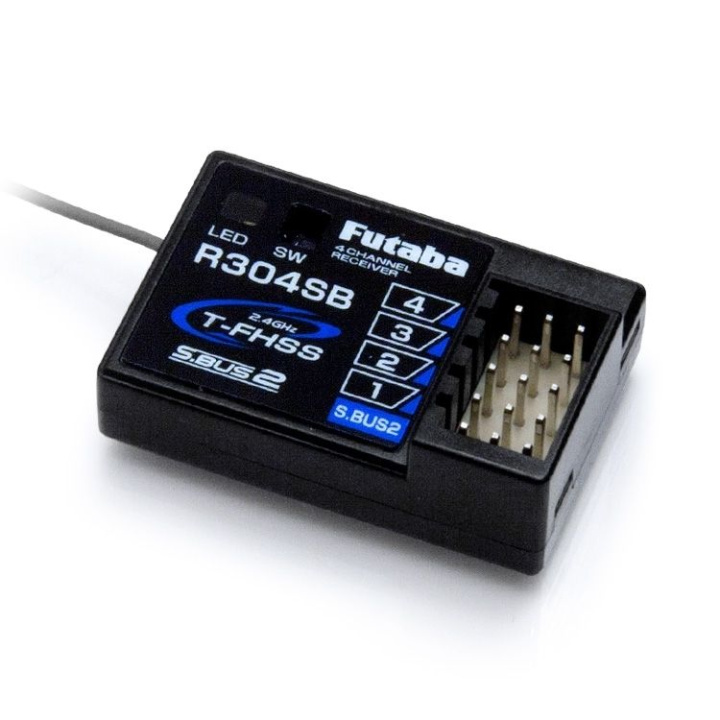

Included Receiver:
- Type: R304SB
- Mode: T-FHSS
- Channels: 4
- Size: 35 x 23.3 x 8.5x12.5 mm
- Weight: 7g
Compatible Receivers:
- R202GF (S-FHSS/FHSS)
- R203GF (S-FHSS/FHSS)
- R2104GF (S-FHSS/FHSS)
- R304SB(E) (T-FHSS)
- R324SBS (T-FHSS)
- R334SBS(E) (T-FHSS & T-FHSS-SR)
Compatible Telemetry Sensors (Only available in T-FHSS mode with a corresponding receiver):
- Receiver Voltage
- SBS-01T - temperature Sensor
- SBS-01TE - Temperature Sensor
- SBS-01RM - RPM Magnetic Sensor
- SBS-01RB - Brushless Motor RPM Sensor
- SBS-01V - Voltage Sensor
- SBS-01C - Current Sensor
Items marked with red will be available with later software updates (through SD card slot)
