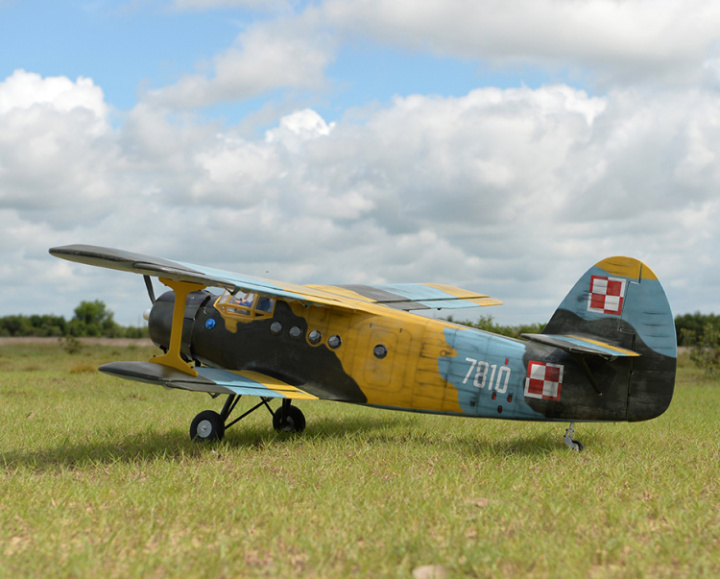

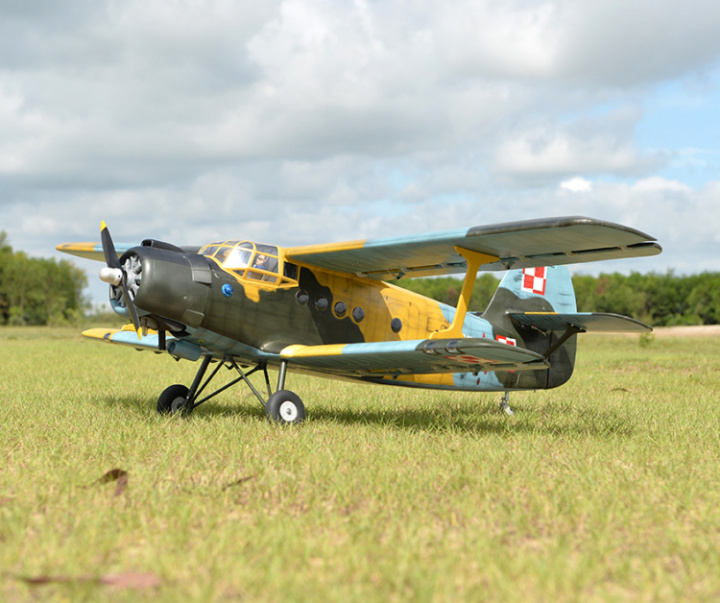

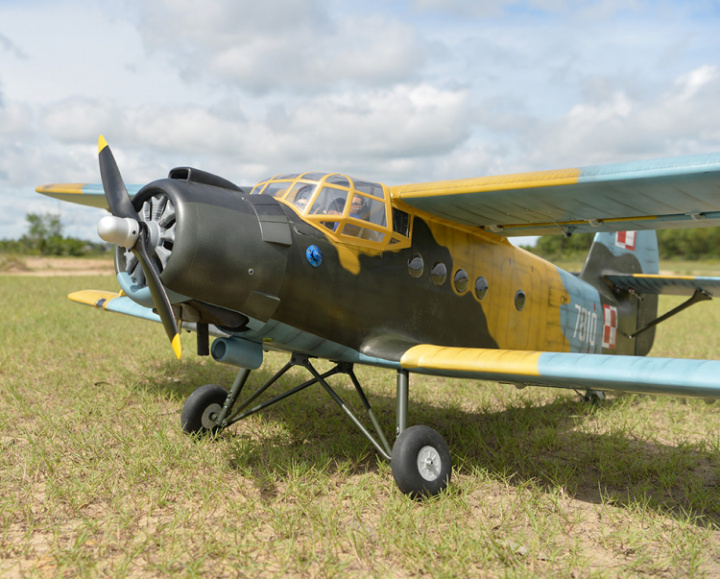

Black Horse BH186 - Antonov An-2 - Glow and EP - 30-35cc Gas
- ONLY INCLUDING OLEO STRUTS
- ALL BALSA & PLYWOOD CONSTRUCTION
- COVERED IN A HEATSHRINK FILM WITH PRINTED GRAPHICS
SPECIFICATIONS:
- Wingspan: 2425mm
- Length: 1710mm
- Weight: 9.6kg
- Wing area: 130.12 dm2
- Wing loading: 73.78 g/dm2
- Servo mounts: 42 x 21mm & 37 x 16mm elevator
- Wing profile: Naca Airfoil
- Spinner: scale type (included)
- Main gear type: Oleo struts, for tail gear (included)
Parts listing required (not included):
- Radio: 8 channels minimum
- Servo: 10 standard high torque servos (size 39.9 x 20.12 x 37.1mm) + 2 standard hight torque elevator servos (size 35 x 15mm)
- Engine: 30–35cc gas
- Motor: Brushless outrunner 2500 - 3200W, 250KV
- Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
- Motor: RIMFIRE 1.60
- LiPo cell: 12 cells 4000 – 5500 mAh
- Receiver battery: 6V/ 1200 – 2000 mAh
- ESC: 80-100A
