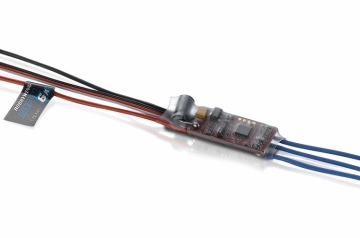

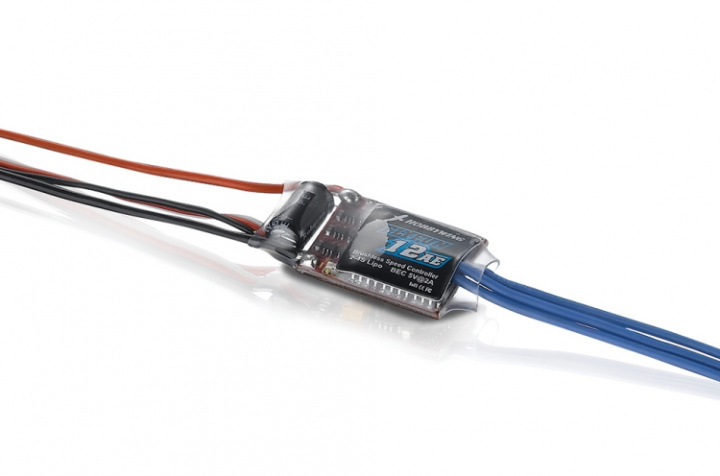

Hobbywing Flyfun 12A-E 2-4S ESC
Great Performance
Imported components and the PCB (printed circuit board) with extremely low impedance adopted by FlyFun ESCs gurantee great current endurance, good performance and high reliability.
Programmale Parameters
With a rich set of programmable parameters (via a LED program card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing, heli, multirotor and etc.)
Multiple Protections
Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.
Specifications
- Brushed/Brushless: BL
- High Voltage/Regular: Regular
- Cont./Peak Current: 12A/15A
- Input: 2-4S LiPo
- BEC Output: Linear mode:5V,2A
Wires & Connectors
- Input Wires: Red-20AWG-100mm*1, Black-20AWG-100mm*1
- Output Wires: Blue-20AWG-100mm*3
- Input Connectors: No
- Output Connectors: No
ESC Programing via
- Transmitter: Supported
- LED Program Card: Supported
- LED Program Box: Not Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- Program Port: Program/Throttle Wire
- Firmware Upgrade: Not Supported
- Size: 38 x18 x7 mm
- Weight: 10 g
