GYC480 Bilgyro UR/SR mode

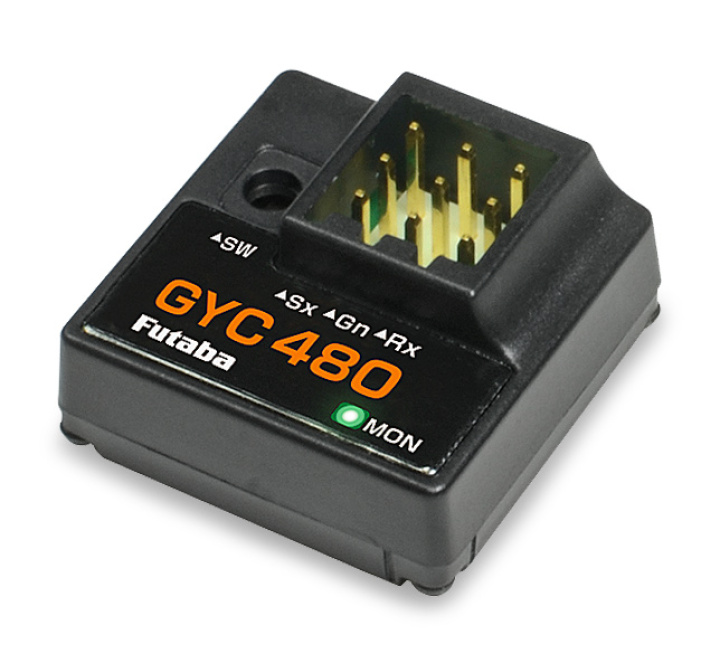

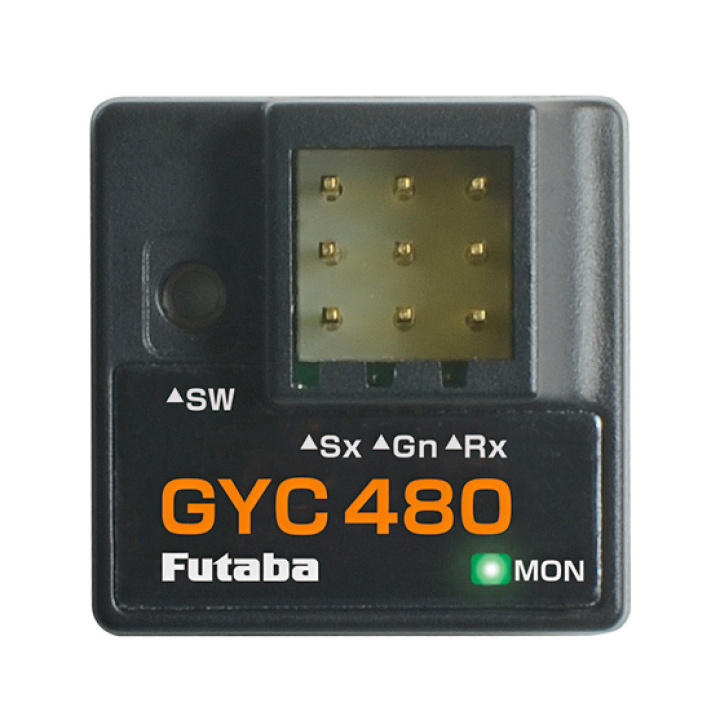

Futaba GYC480 - Car Gyro UR/SR mode

• Supports UR/SR mode servos of the high-speed response system F-4G.
• Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)
• Settings specifically for RC cars: While suppressing the effects of road conditions, the synergistic effect with UR mode response provides comfortable straight-line and cornering performance to help improve lap times.
• Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.
• Compatible with S.BUS systems (can also be used with non-S.BUS systems): Can be connected via S.BUS in combination with an S.BUS receiver.
• Digital servo only: For Futaba HPS/BLS servos and digital servos only. Analog servos cannot be used.
• Normal/AVCS mode
• Fast response mode
• Turn-in adjustment
• Gyro curve adjustment
• Left and right end-point adjustment
• EXP rate adjustment
• Stick Priority Mode Adjustment
• Wireless adjustment function supported

• Sensor integrated rate gyro
• Angular velocity detection method: Vibration gyro sensor
• Operating voltage: DC 4.0 V to 8.4 V
• Current consumption: 30 mA (when servo is not connected)
• Operating temperature: -10°C to +45°C
• External dimensions: 20.7x20.7x11mm (excluding protrusions)
• Weight: 3.7g
• Functions: Monitor LED, S.BUS/S.BUS2 compatible
