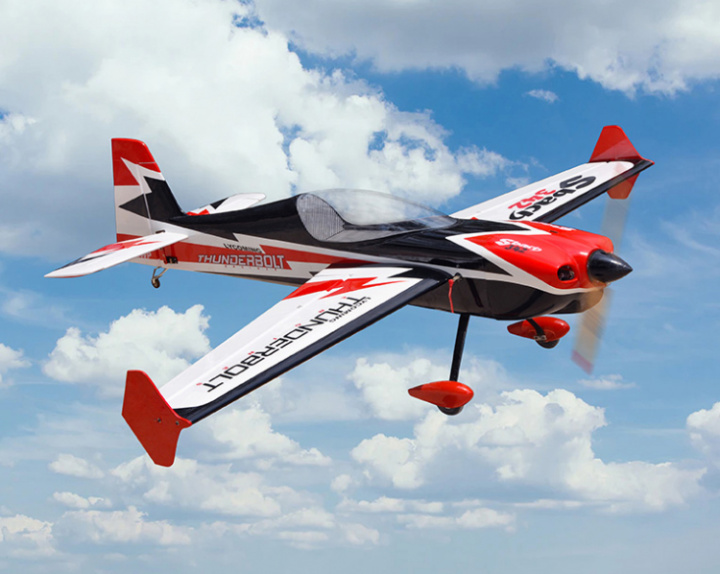

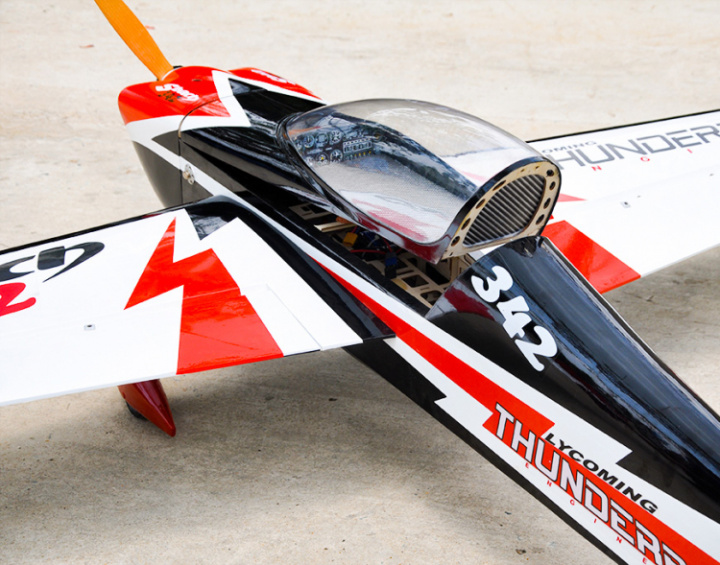

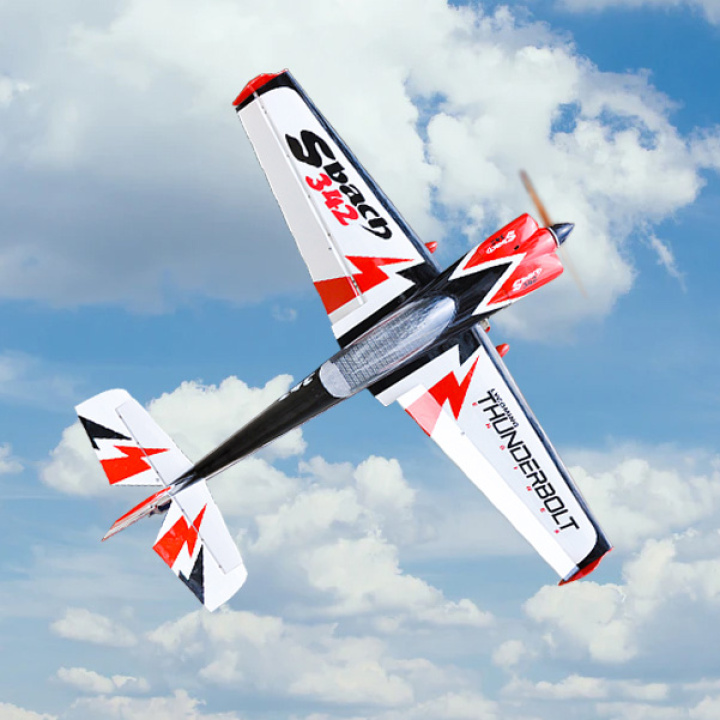

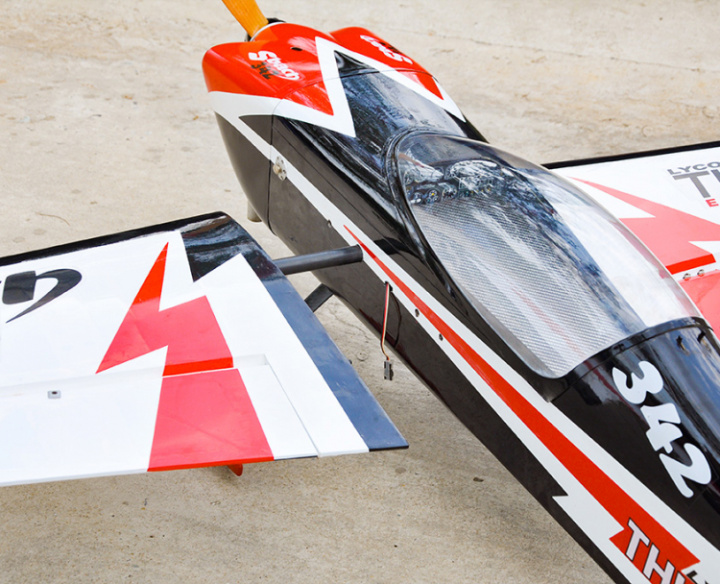

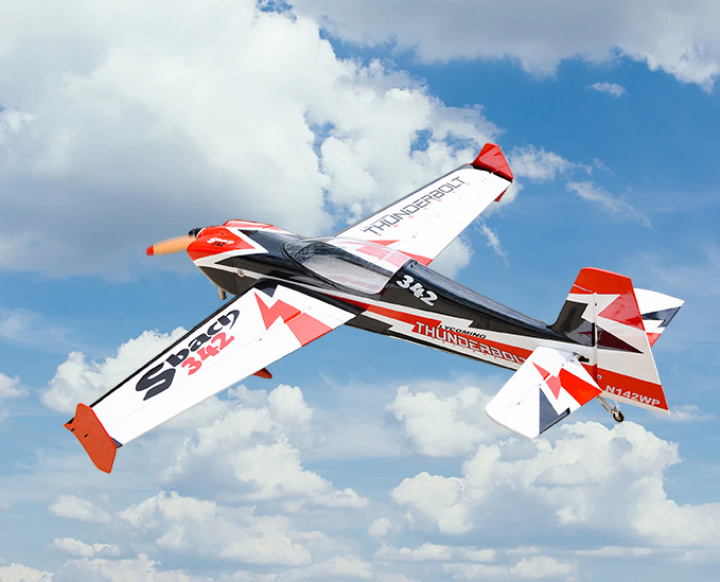

Black Horse BH174 - Sbach 342 V2 - 27% Scale
Glow and EP- ALL BALSA – PLYWOOD CONSTRUCTION
- COVERED WITH ORACOVER
SPECIFICATION:
- Wingspan: 1980 mm
- Length: 1940mm
- Weight: 5.5–5.7kg
- Wing area: 69.7 dm2
- Wing loading: 79g/dm2
- Wing type: Naca Airfoil
- Servo mount: 42x21 mm
- Gear type: Carbon fiber for main gear (included) and aluminium Hi-grade tail gear (included)
Parts listing required (not included):
- Radio: 6 channels
- Servo: 6 servos (HV High torque steel gear servo) - torque: 23–30kg/cm
- Engine: 33–38 cc gas
- Propeller: Suit with your engine
- Motor: Brushless outrunner 2500–3200W, 250KV
- LiPo Battery: 12s 4000-5500 mAh
- Receiver battery: 6-7.4V/ 2200-3200 mAh
- ESC: 80–100A
