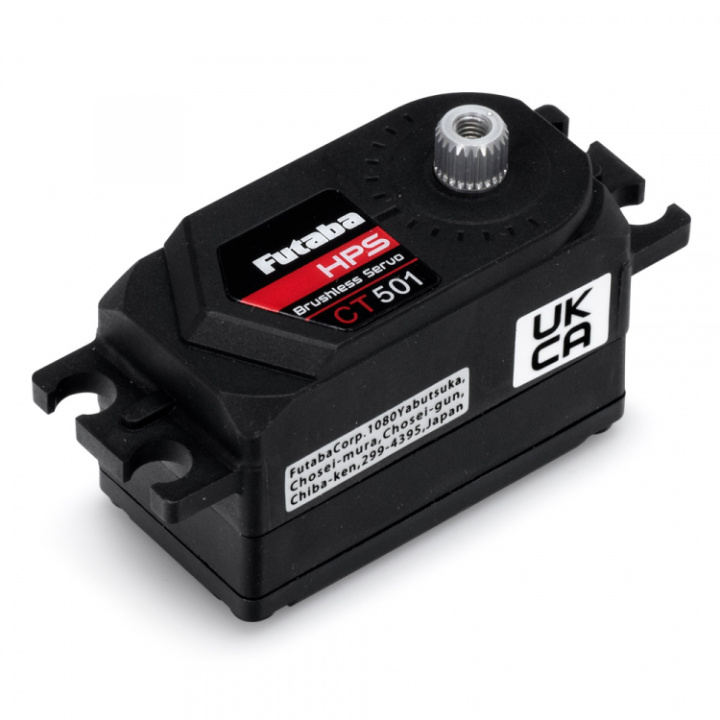

Futaba HPS-CT501 - Low-Profile Servo for 1/10 Scale Cars - UR Mode
The new HPS-CT501 is developed specifically for RC cars that needs a low-profile and high performance servo but don't need the full aluminium case that the CT701/702 has. Futaba's HPS servos includes a new generation brushless HPS motors that has been developed to run more efficient and cooler.UR mode setting: make sure that your SR/UR mode transmitter and receiver are updated with the latest software!
The servo is compatible with the Futaba SR mode ("Super Response") of the T7XC, T7PX and T4PM systems.
HPS-CT501 Features:
- Suitable for RC cars drift and 1/10 scale on/off road & boats
- Resin case
- Gears: 1st, 2nd ,3rd and final metal gears
- HPS brushless motor technology
- UR compatible (Ultra Response)
- SR compatible (Super Response)
- High Voltage
- Ball Bearings
- Potentiometer with low wear
- High Resolution
- S.BUS2 compatible
- Cable color : Black-grey
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
- Programmable/HV Brushless Servo - compatible with S.Bus and S.Bus2 systems
Specifications:
- Rated Voltage: 6.0 - 7.4V
- Operating Voltage: 4.8 - 8.4V
- Speed: 0.07s/60° @ 6V
- Speed: 0.06s/60° @ 7.4V
- Power: 17.1kg/cm @ 6V
- Power: 21kg/cm @ 7.4V
- Size: 40.5 x 21 x 26.9 mm
- Weight: 44 g
