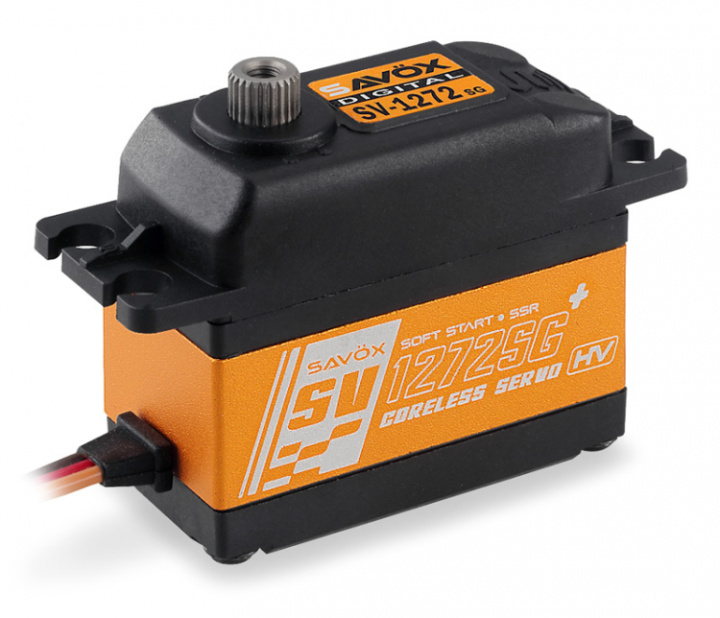

SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo - PLUS/V2
This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.Features:
- NEW! Softstart Function
- NEW! Sanwa SSR compatible
- High Voltage
- Super strong and precision made unique steel gears provide durability and survive heavy use
- Extreme amount of torque in a standard case
- Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks
Specifications:
- Torque @6V: 23kg/cm
- Torque @7.4V: 35kg/cm
- Speed @6V: 0.13 sec/60 deg
- Speed @7.4V: 0.10 sec/60 deg
- Torque @8.4V: 40kg/cm
- Speed @8.4V: 0.09 sec/60 deg

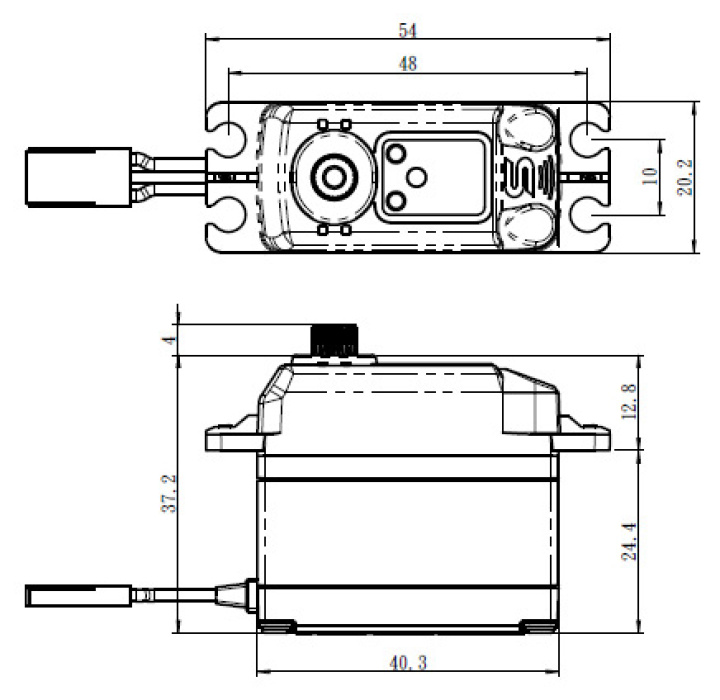

- Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
- Weight: 63g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 120mA @6.0V, 150mA @7.4V
- Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
