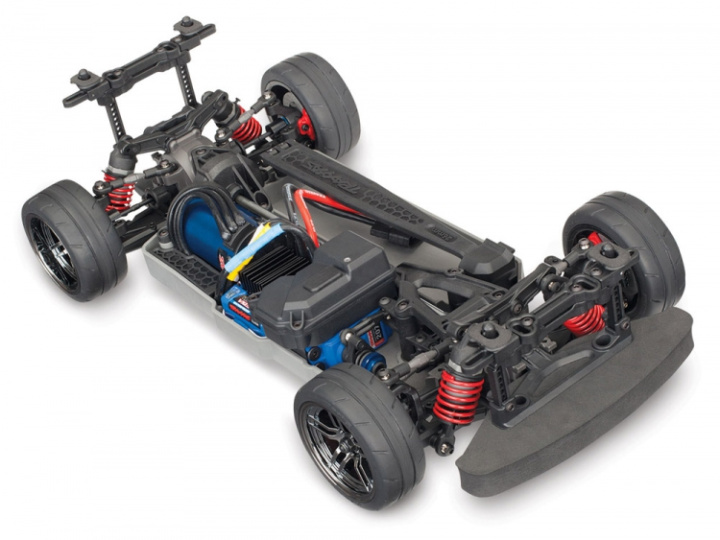

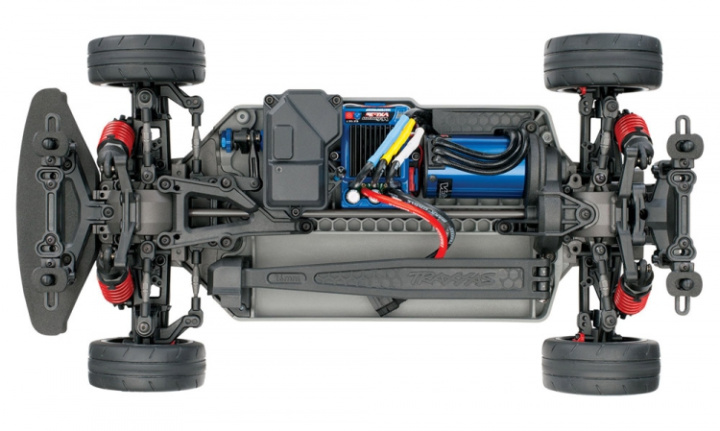

1/10 Scale 4-Tec 2.0 VXL AWD Chassis
The all-new 4-Tec 2.0 VXL chassis provides the ultimate high speed driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. The waterproof VXL-3s electronic speed control channels massive power to the Velineon® brushless motor for four wheel tire-spinning acceleration and incredible 70+mph* top speed. A finely tuned suspension keeps the wheels glued to the pavement and Traxxas Stability Management® (TSM) provides lightning-quick corrections to keep you in control. Grab the transmitter, rip full throttle, and hold on! The Traxxas 4-Tec 2.0 VXL delivers a high speed thrill ride like you’ve never experienced.
Choose your own body, battery, and charger (sold separately) to create your custom ride!
QUICK FEATURES ON 4-Tec 2.0 VXL AWD Chassis (#83076-4)

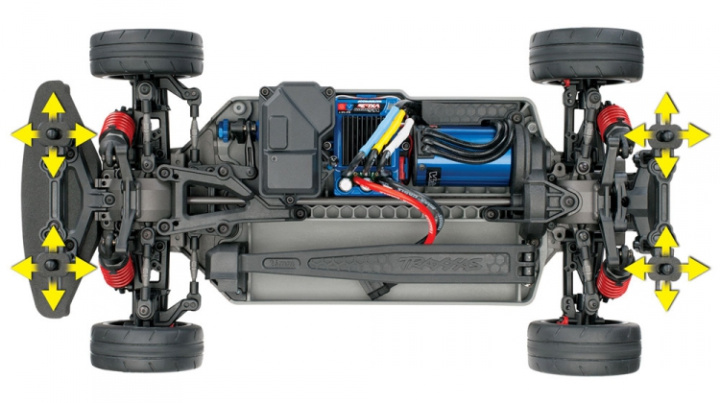

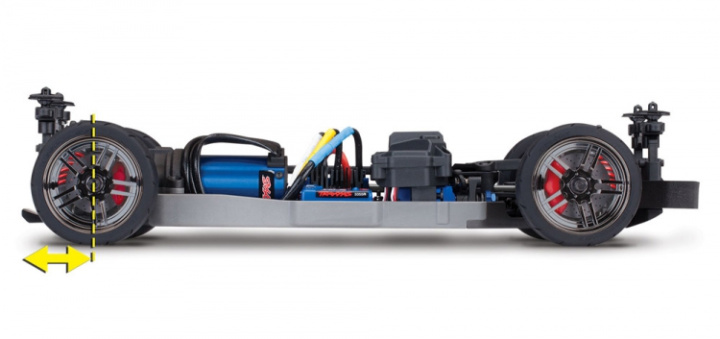

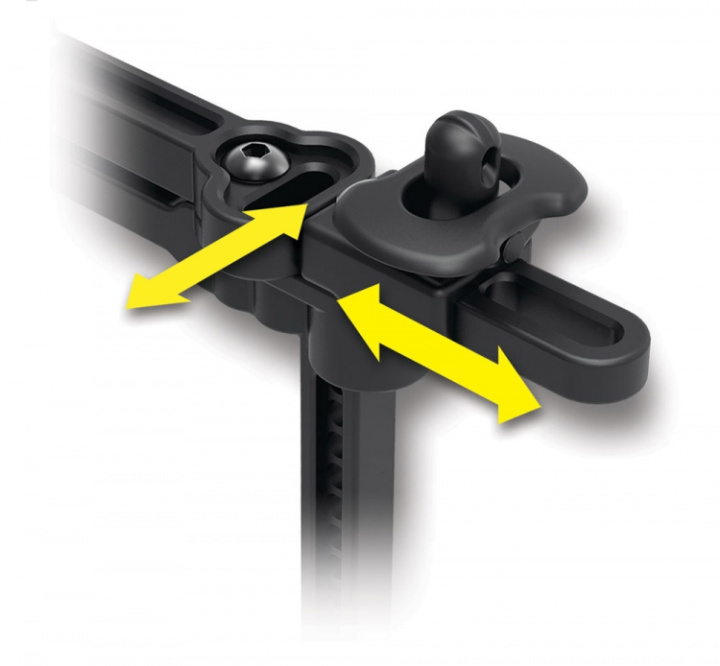

- Adjustable chassis accepts standard 200 mm bodies

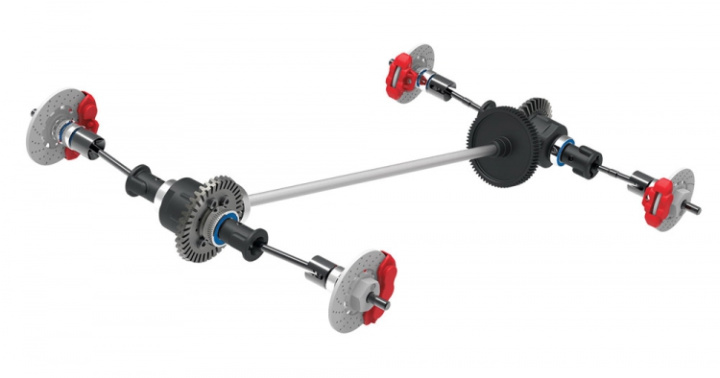

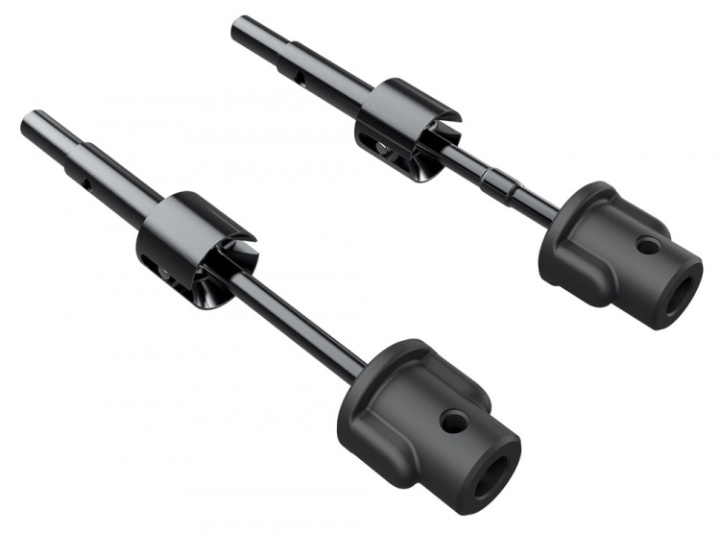

- Shaft-driven full-time all-wheel drive system

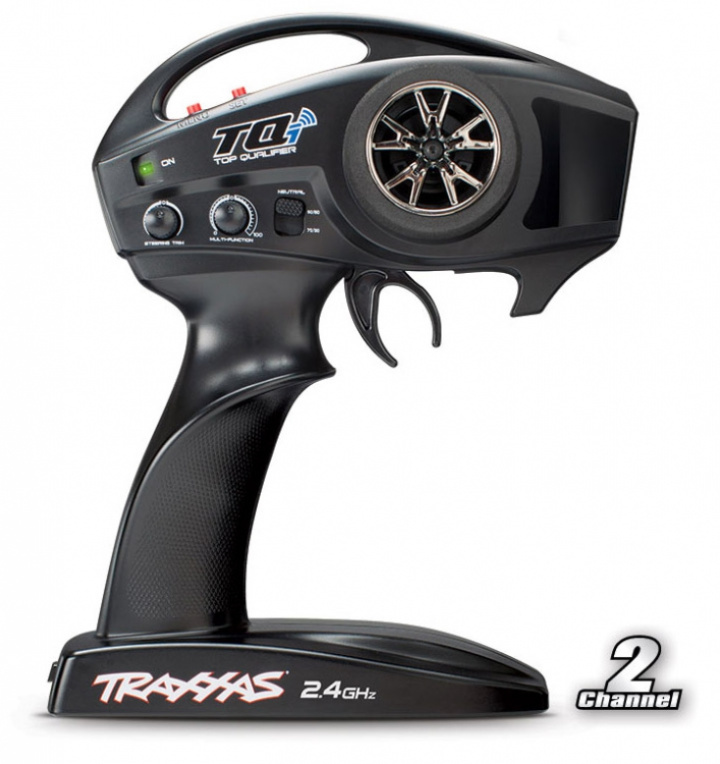

- TQi™ 2.4GHz radio system with Traxxas Stability Management (TSM)
- Waterproof electronics for all-weather, all-season R/C excitement
- Velineon brushless power system

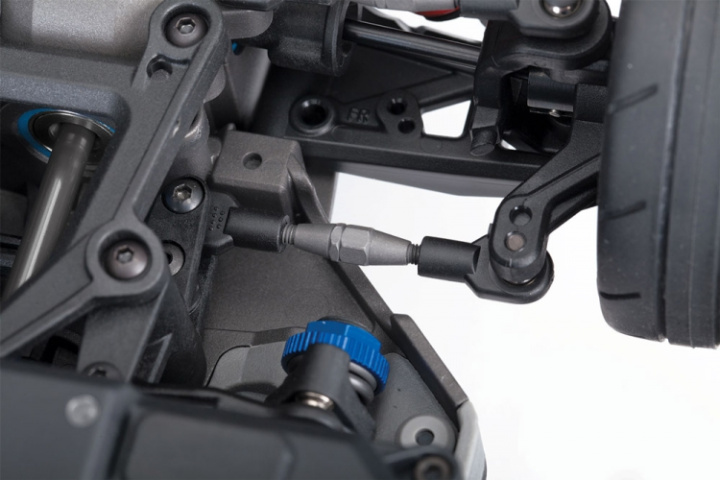

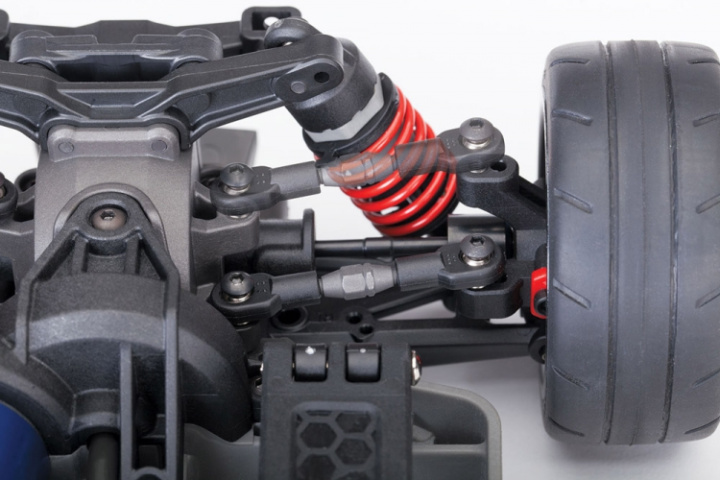

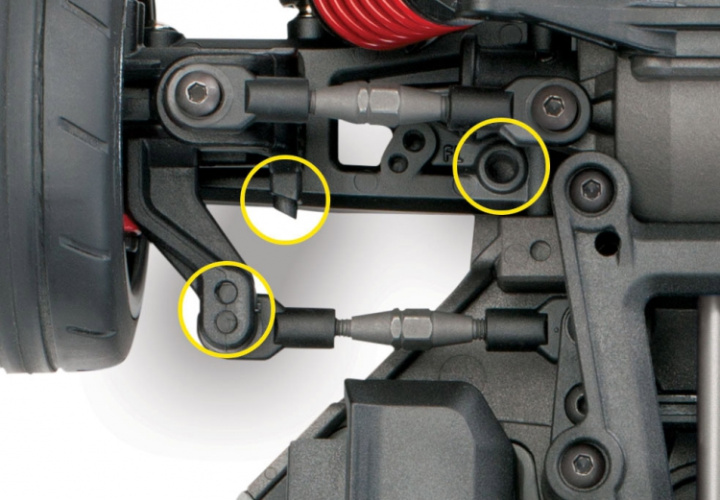

- Adjustable steel turnbuckles and steering links

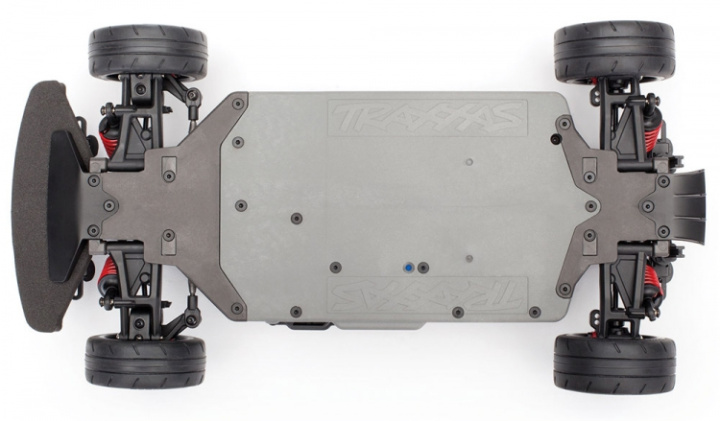

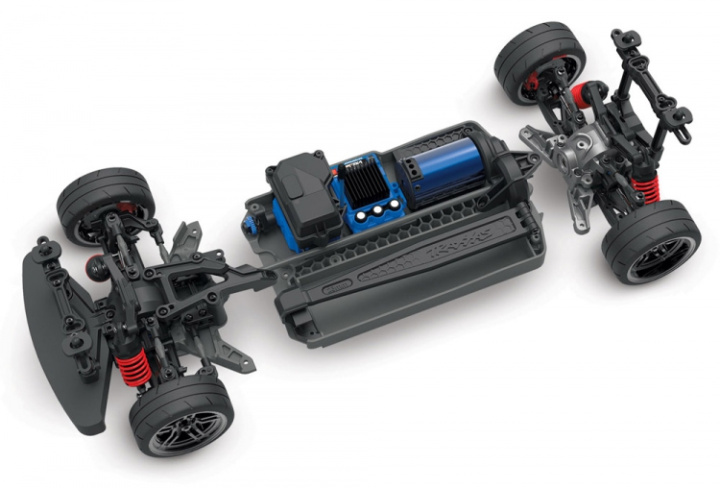

- Low-CG fiber-composite monocoque chassis with high approach angle front bumper

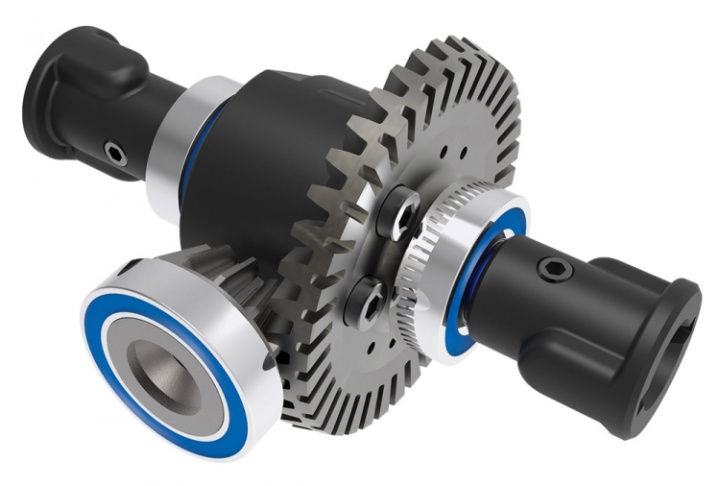

- Race-proven sealed differentials
- VXL-rated high-speed Response tires

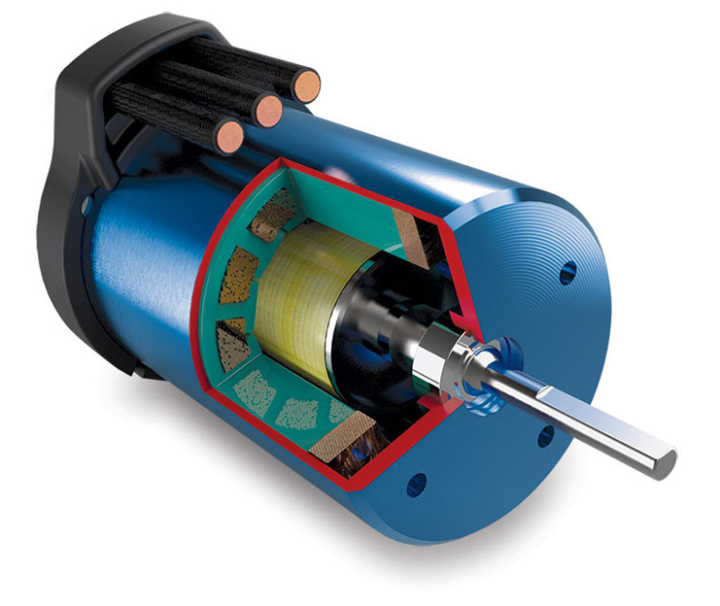

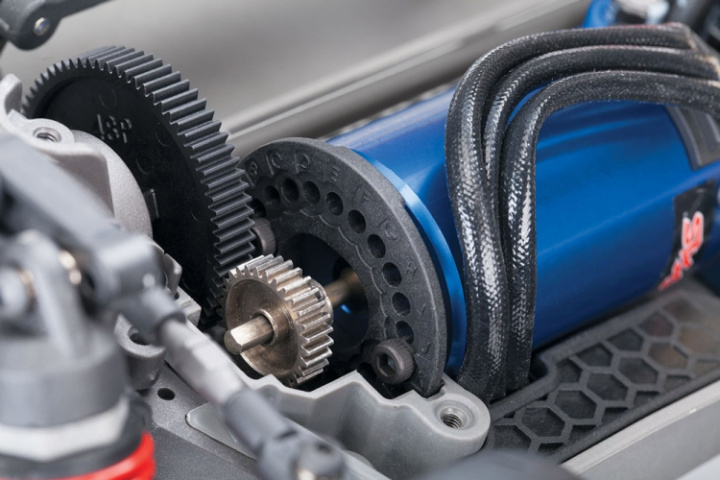

Class-Leading Brushless Power
The 4-Tec 2.0 VXL’s Velineon brushless power system defines a whole new generation of outrageous electric power that doesn't know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the 4-Tec 2.0 VXL chassis’ four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s brushless power system features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It's engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.

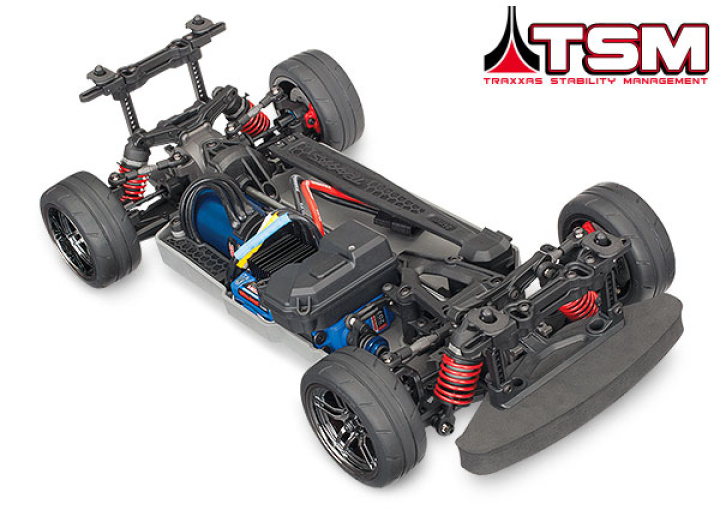

Traxxas Stability ManagementTM (TSM)
Traxxas Stability ManagementTM (TSM) lets you experience your 4-Tec 2.0 VXL's extreme power, speed, and acceleration by making it easier to control on slippery surfaces where traction is not ideal. Go ahead, punch it off the line! TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the 4-Tec VXL's line for faster exit speeds. TSM even improves braking by keeping the car arrow straight until you reach a complete stop. TSM does all this without intruding on driving fun or introducing unexpected side effects. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. Drive faster and have more fun with TSM. You may not even realize how much it is helping until you try to drive without it.
New VXL-Rated Response Tires

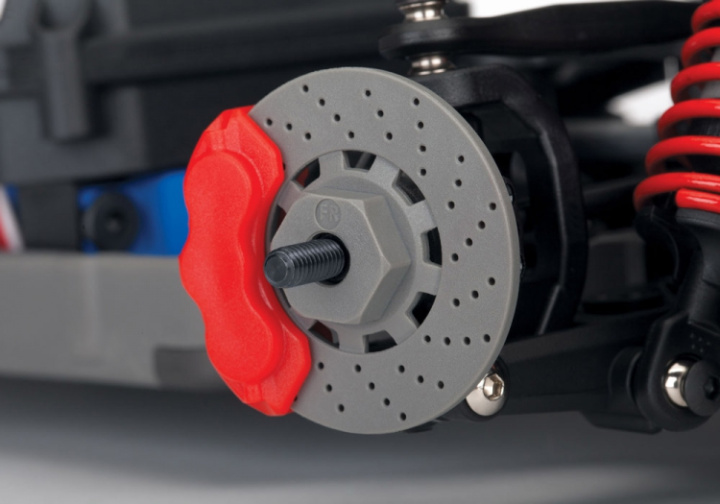

Sticky VXL-rated Response street tires are rated for high speed runs and wrap around gorgeous replica wheels with lug nut details (patents pending). The replica brake discs incorporate standard 12mm wheel hexes and feature red brake calipers. The brake calipers even switch from leading to trailing orientation to give your ride that fully authentic look.
Battery and Charger Sold Separately
Add a Traxxas Battery and Charger for the Ultimate Combo!
100% Fully Assembled
The Traxxas 4-Tec 2.0 VXL rolls out of the box pre-assembled with a factory-adjusted TQi™ 2.4GHz radio with TSM, Velineon brushless power system, and detailed instructions. Choose your own body, battery, and charger (sold separately) to create your custom ride. Traxxas backs the 4-Tec 2.0 VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun--and fast!
4-TEC 2.0 VXL (#83076-4) SPECS
- Length: 379 mm
- Front Track: 196 mm
- Rear Track: 200 mm
- Center Ground Clearance: 9 mm
- Weight: 1.44 kg
- Height (overall): 129 mm
- Wheelbase: 256 mm

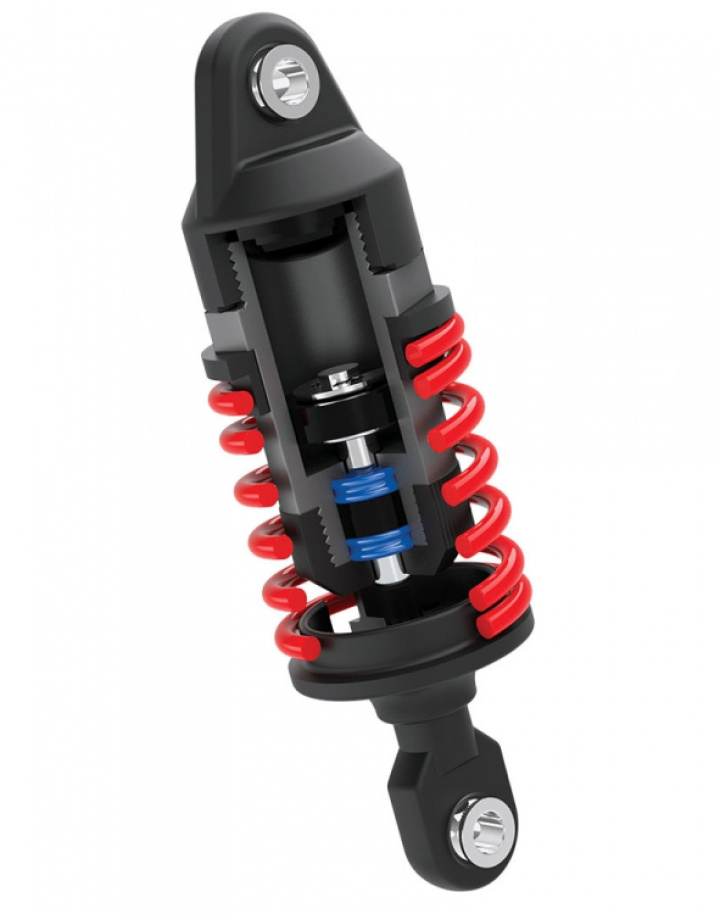

- Shock Length: Short (front and rear)
- Tire Diameter: 66 mm
- Tire Width (front): 26 mm
- Tire Width (rear): 30 mm
- Wheel Diameter: 53 mm (2.1")
- Speed Control Type: VXL-3s™ Electronic Speed Control
- Motor (electric): Velineon® 3500 Brushless
- Overall Drive Ratio: 6.87
- Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
- Gear Pitch: 48
- Chassis Structure/Material: Molded Tub / Nylon Composite
- Drive System: Shaft-Driven, Direct Drive 4WD

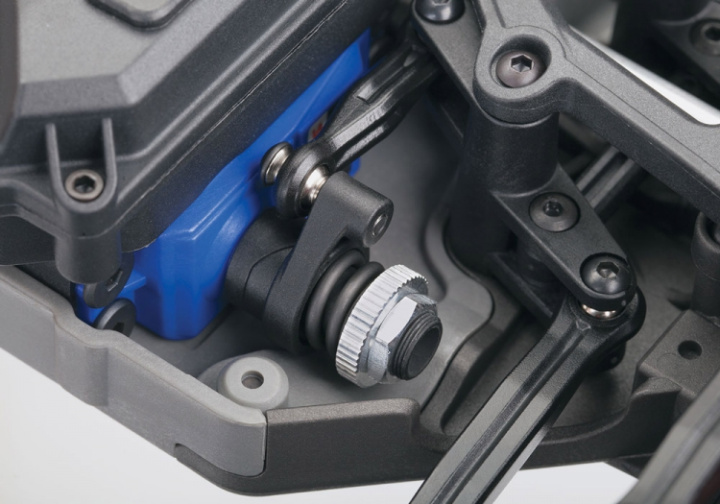

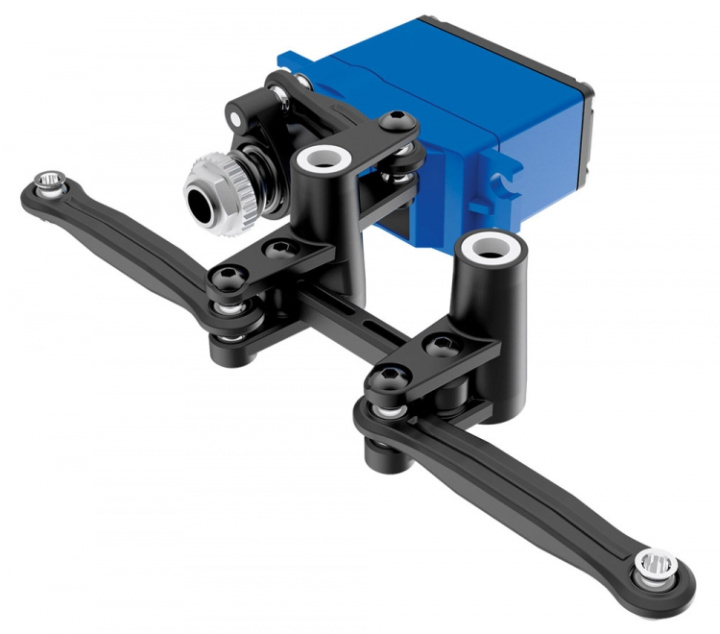

- Steering: Dual-Bellcrank
- Radio System: TQi™ 2.4GHz Radio with TSM® receiver
- Skill Level: 3
- Top Speed: 112+kmh*

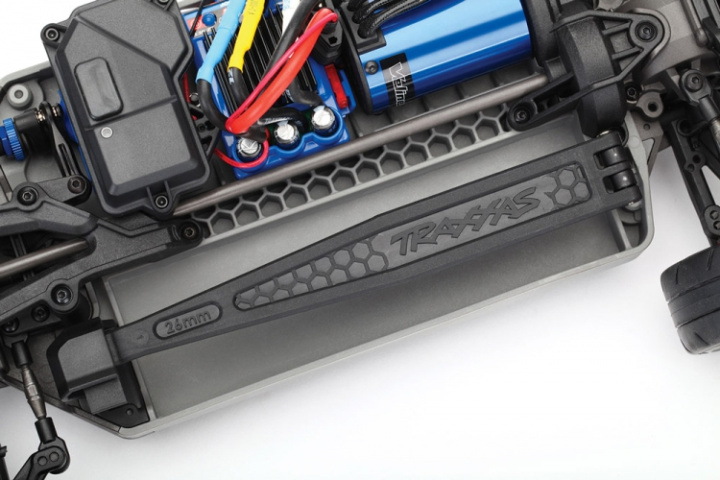

- Battery Tray: L158 x W46 x H23/26 mm
- (Sold Separately): 4 "AA" Batteries (for transmitter), Charger, 6 or 7-Cell NiMH or 2 or 3-Cell LiPo Battery

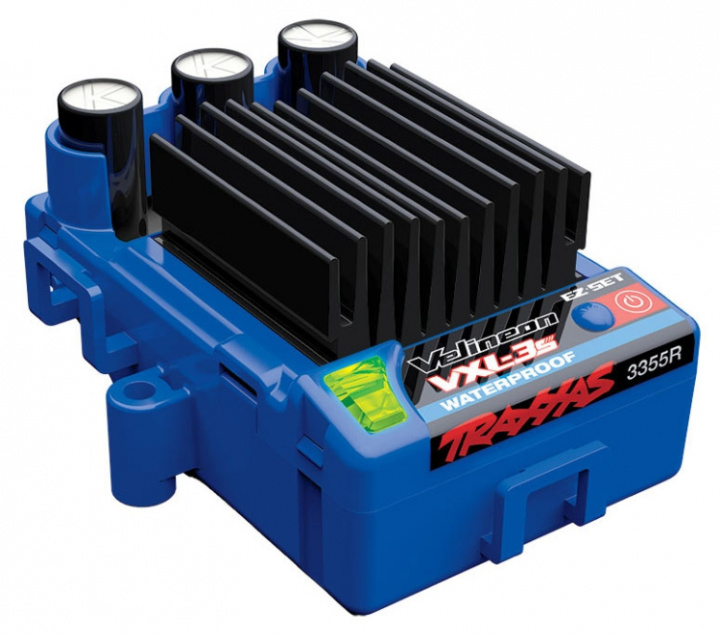

VXL-3s ESC SPECIFICATIONS
- Input Voltage: NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
- LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
- Case Size: W39 x D55 x H33 mm
- Weight: 90 grams
- Motor Limit (Brushless): No motor limit
- On Resistance Forward: 0.00075 Ohms
- On Resistance Reverse: 0.00075 Ohms
- Peak Current - Forward: 320A
- Peak Current - Reverse: 320A
- Braking Current: 320A
- Continuous Current: 200A
- BEC Voltage: 6.0 V
- BEC Current: 2.5A (with 6-cell NiMH)
- Power Wire: 12-Gauge Maxx® Cable
- Input Harness Wire: 26 Gauge / 100mm
- Transistor Type: MOSFET
- Low Voltage Detection: 2-Stage indicators, switchable (on or off)
- Thermal Protection: 2-Stage thermal shutdown
- Single-Button Setup: Yes, Traxxas EZ-Set®

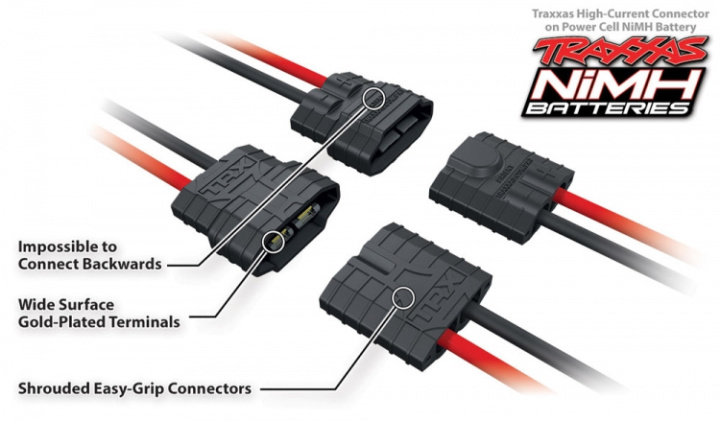

- Battery Input Connector : Traxxas High-Current Connector**
- Motor Type: Brushless
- Ports: RX Input, auxiliary fan
Profile selection:
- Sport Mode: 100% FWD, 100% BRAKES, 100% REV
- Race Mode: 100% FWD, 100% BRAKES, NO REV
- Training Mode:** 50% FWD, 100% BRAKES, 50% REV
**Patented
Battery and Charger Sold Separately
Add a Traxxas Battery and Charger for the Ultimate Combo!
| Speed | 56+kmh | 80+kmh* | 112+kmh* |
|---|---|---|---|
| Battery | 2923X (1) 3000mAh NiMh | 2843X (1) 5800mAh 2S LiPo | 2872X (1) 5000mAh 3S LiPo |
| Pinion/Spur | 29-T / 70-T | 35-T / 55-T | 35-T / 55-T |
| Skill Level | 3 | 3 | 5 |
Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.
*With included optional gearing
*With included optional gearing
Traxxas iD Auto Battery Identification makes charging simple
Choose your charging option with 4-Tec 2.0 VXL!
| EZ-Peak | 2970 EZ-Peak Plus | 2971 EZ-Peak Live | 2972 EZ-Peak Dual |
|---|---|---|---|
| Charging Amperage | 4-amp | 12-amp Bluetooth® | 4-amp (dual) 8-amp (single) |
