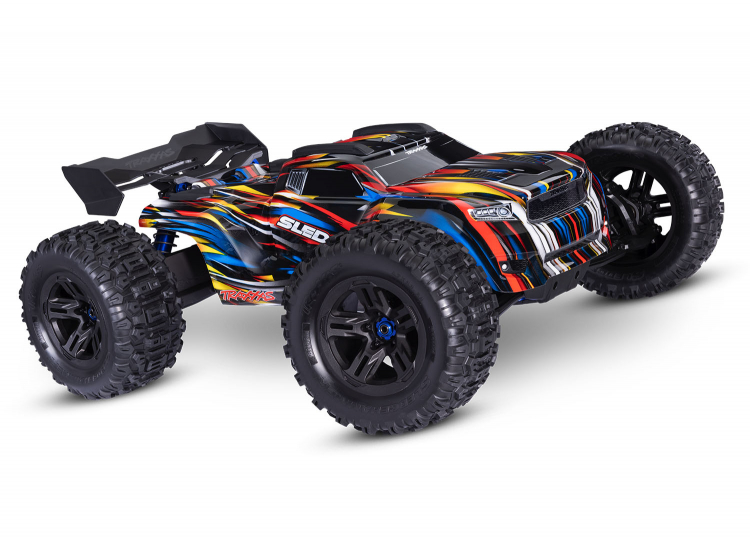

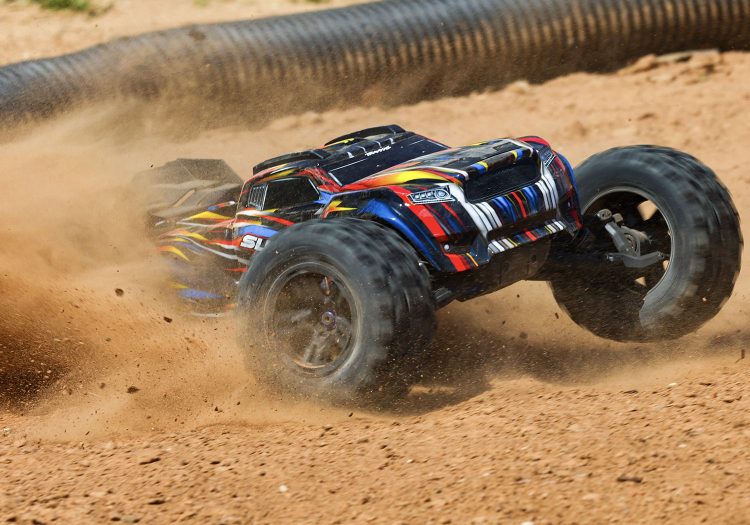

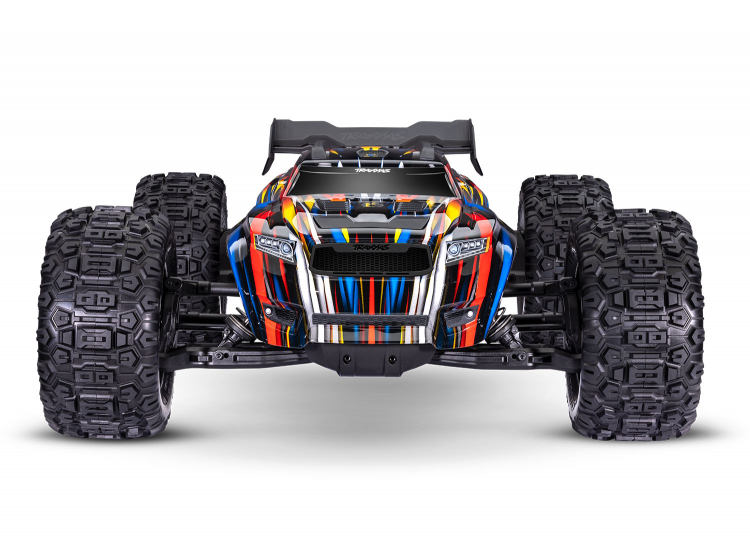

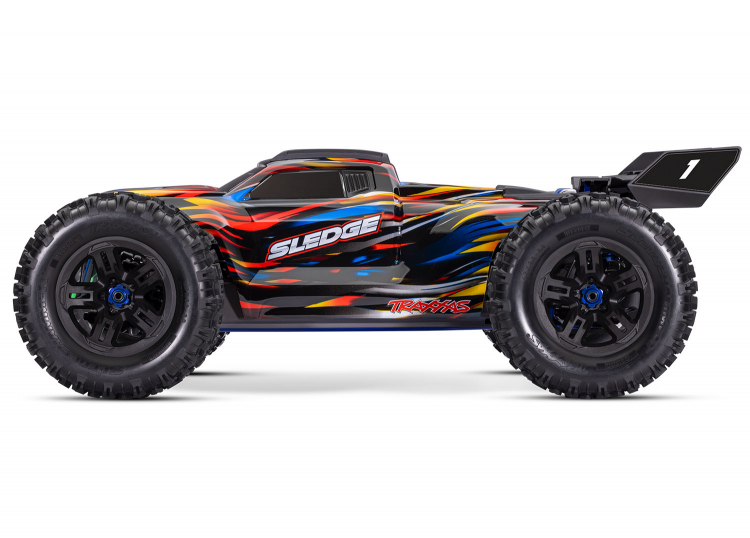

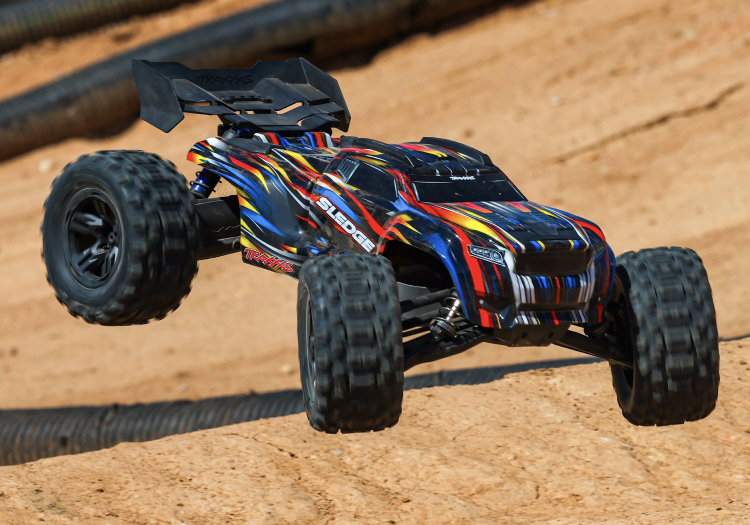

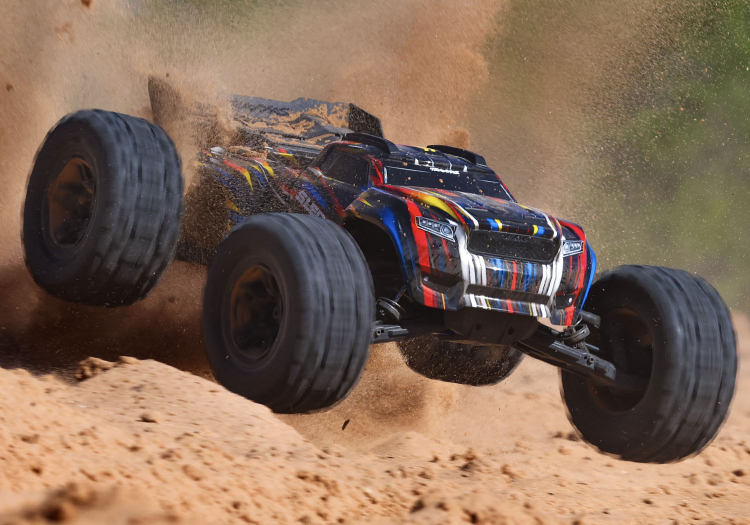

Traxxas 95096-4-BLUE - Sledge 6s Truggy Belted - BLUE
Redefining 1/8 Scale Off-RoadEngineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.
Engineered for 6s Power
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

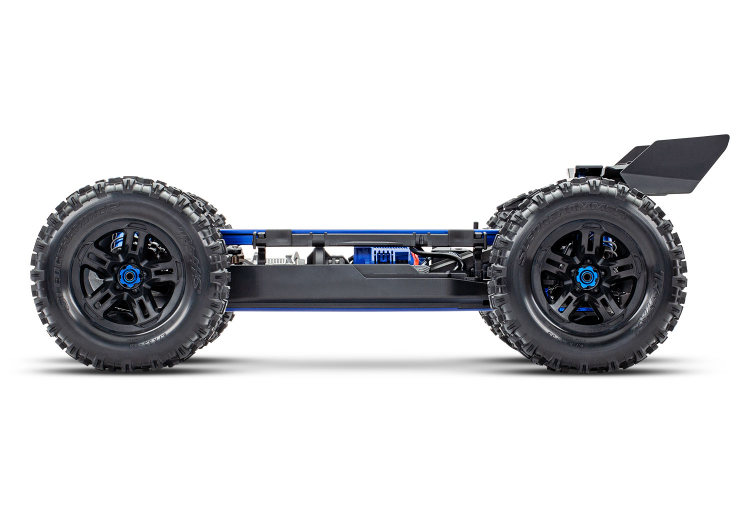

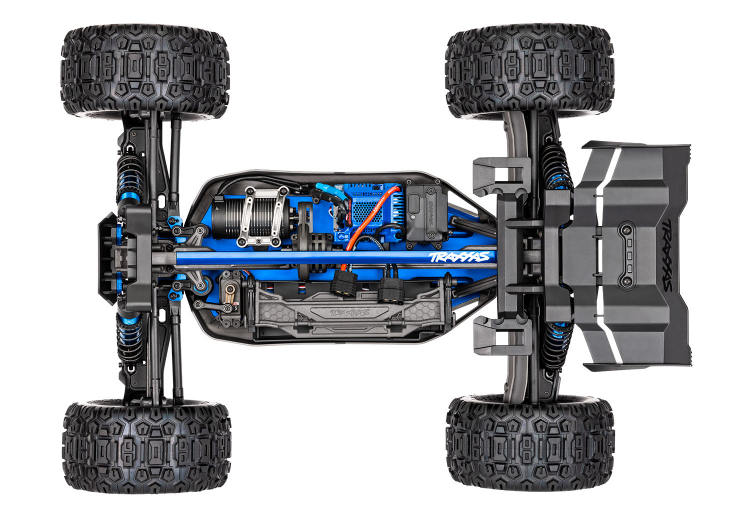

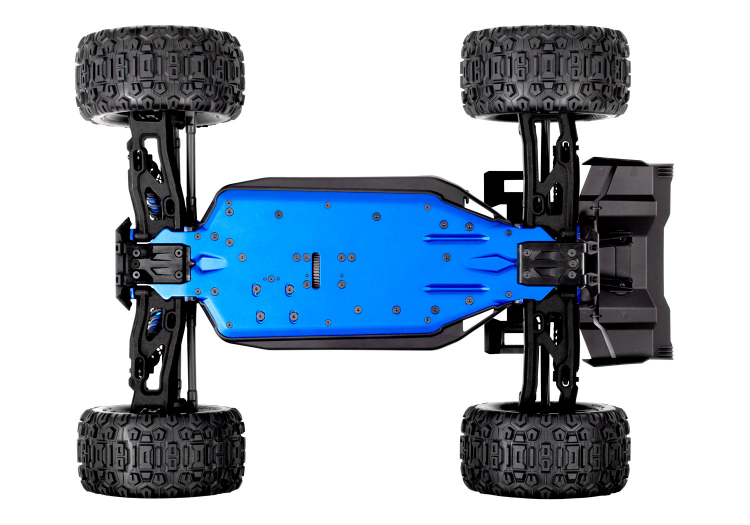

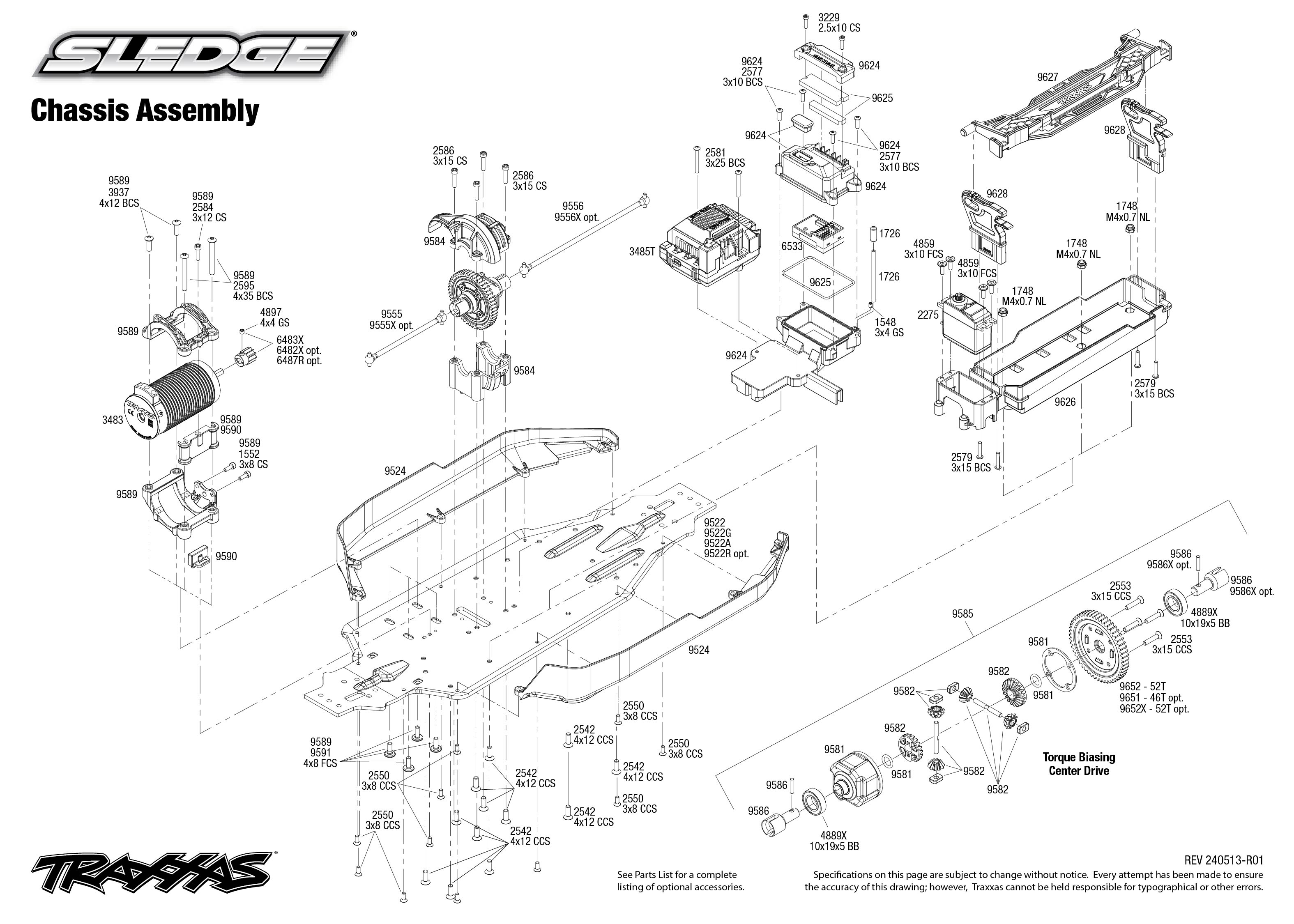

Superior Chassis Strength

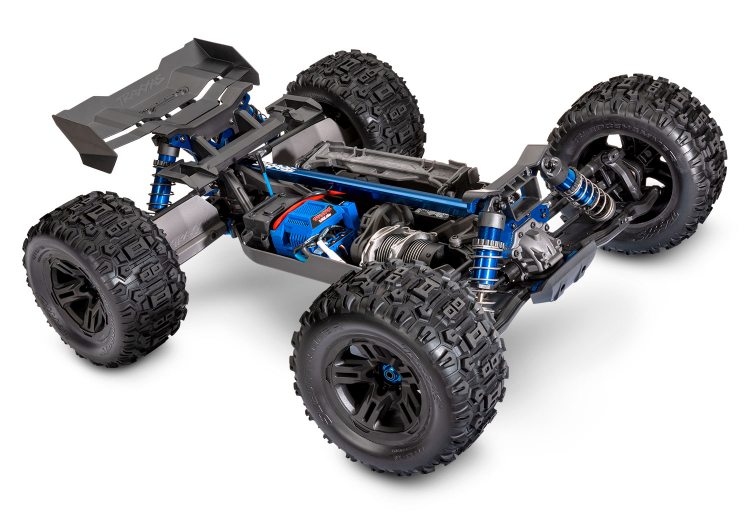

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

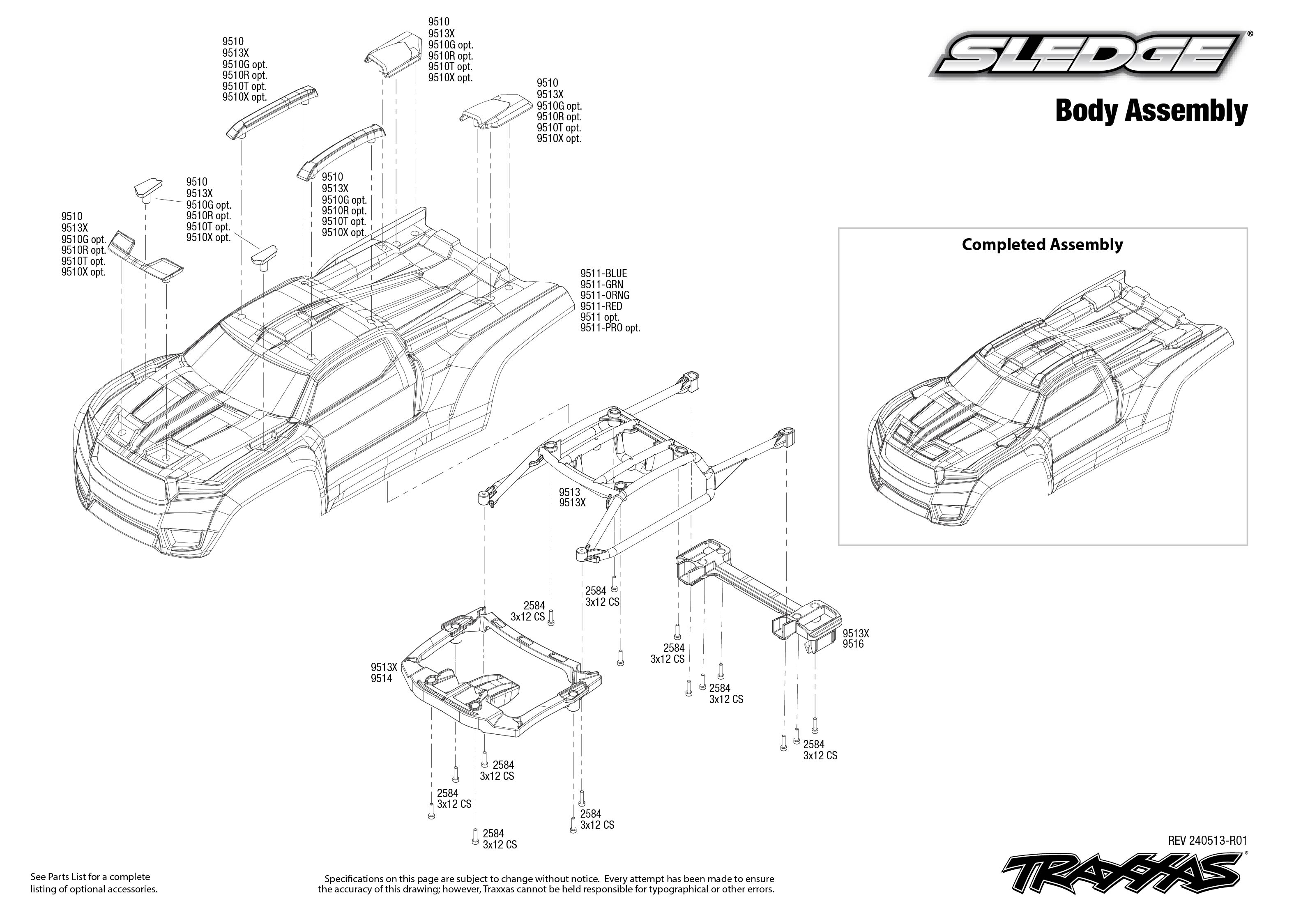

Clipless Body
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.
Monster Servo
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.
VXL-6s Power System
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

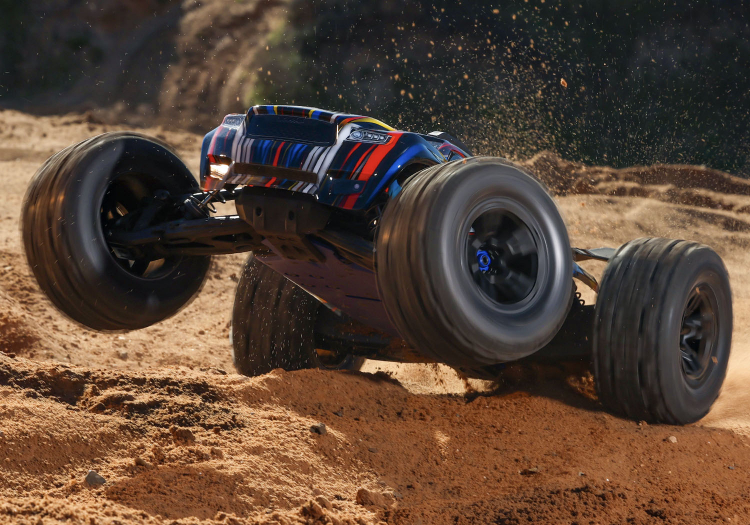

Belted Sledgehammer Tires
Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Specs:
- Length (including wing): 604 mm
- Front Track: 459 mm
- Rear Track: 459 mm
- Ground Clearance: 50 mm
- Weight (no battery): 5.77kg
- Height (overall): 214 mm
- Wheelbase: 384 mm
- Shock Length (front): 128 mm
- Shock Length (rear): 144 mm
- Tire Size: 170 x 84 mm
- Wheel Diameter: 3.8 inches (97 mm)
- Speed Control: Velineon® VXL-6s (3485)
- Motor (electric): Velineon® 2000 kV Brushless
- Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Pitch: Module 1.0
- Chassis Structure/Material: 3.2 mm aluminum plate
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank w/metal servo arm
- Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
- Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
- Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
- Top Speed: 112+ KPH with two 3s LiPo batteries and optional gearing (sold separately)
- Skill Level: 4
- Battery Tray: Narrow configuration (L/W/H): 181 x 50 x 29/37/45 mm* / Wide configuration (L/W/H): 160 x 57 x 29/37/45 mm*
What’s In The Box:
- Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
- VXL-6s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Jumper plug (for 4s battery use)
What You’ll Need:
- LiPo Batteries: Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD™: Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
