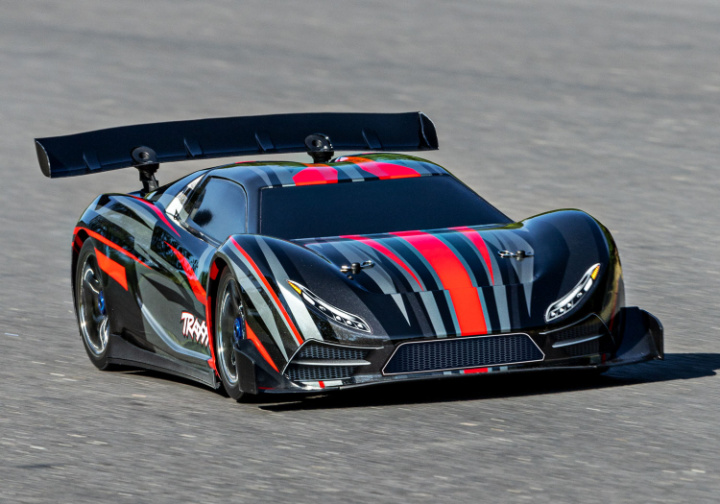

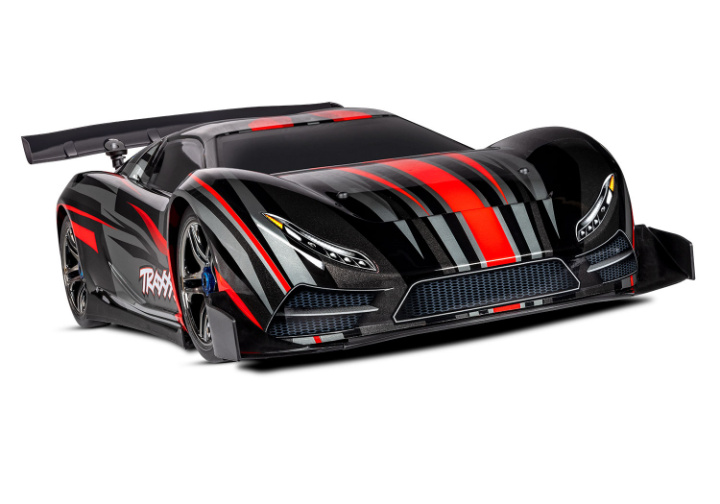

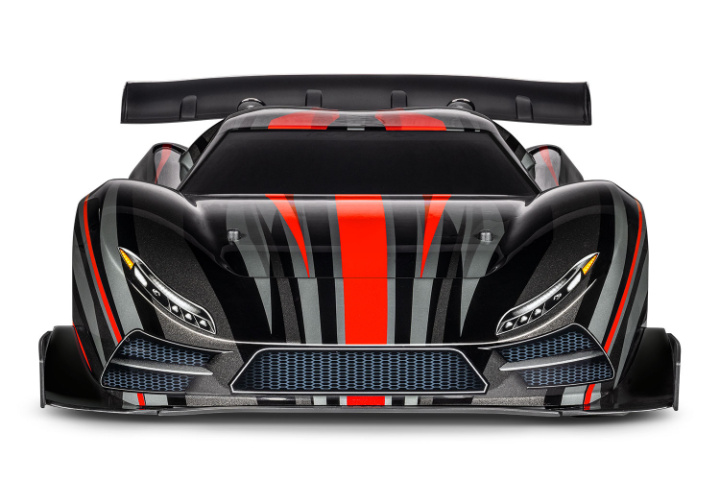

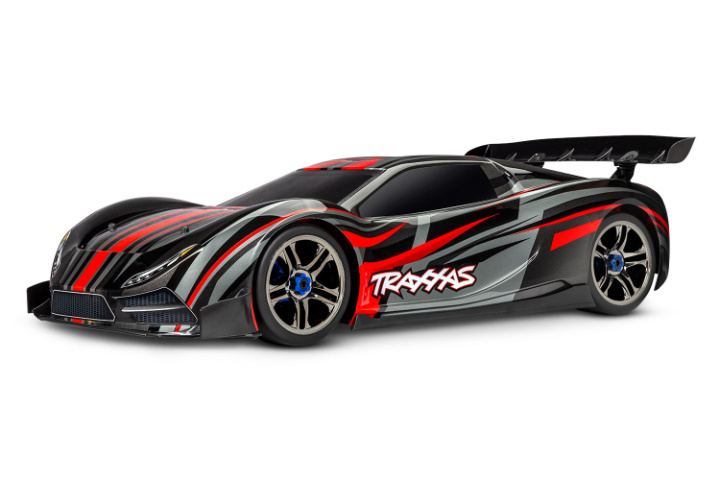

Traxxas XO-1 RED-X - The World’s Fastest Ready-to-Race® RC Supercar is Better Than Ever
XO-1® smashed the world's expectations for RC speed when it was released. Now it's back with a host of updates to make it more accessible than ever. The same 6s Big Block muscle powers it to 100 mph and beyond, while a larger wing and splitter combine with a new rear body vent to keep it planted for total control.New XO-1 Features:
Increased downforce and Traxxas Stability Management® (TSM) make it easier than ever to experience the full power and speed of XO-1.

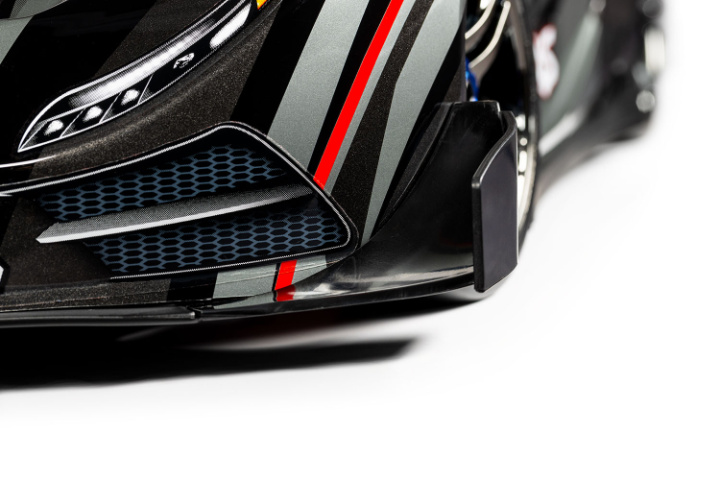

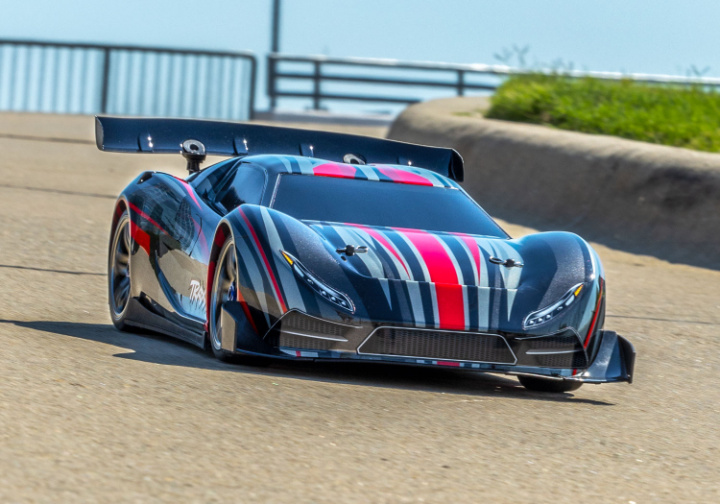

- High-Downforce Canards

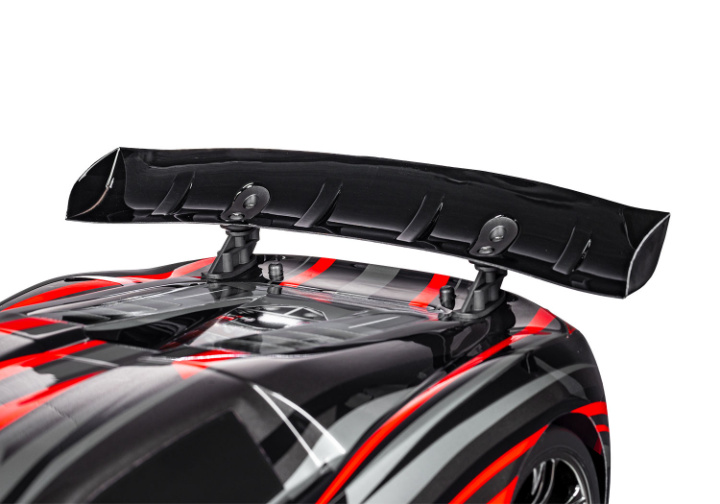

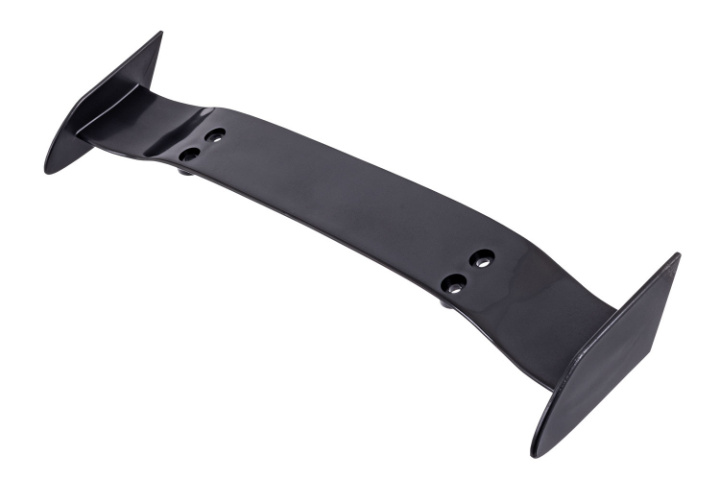

- Updated Rear Wing

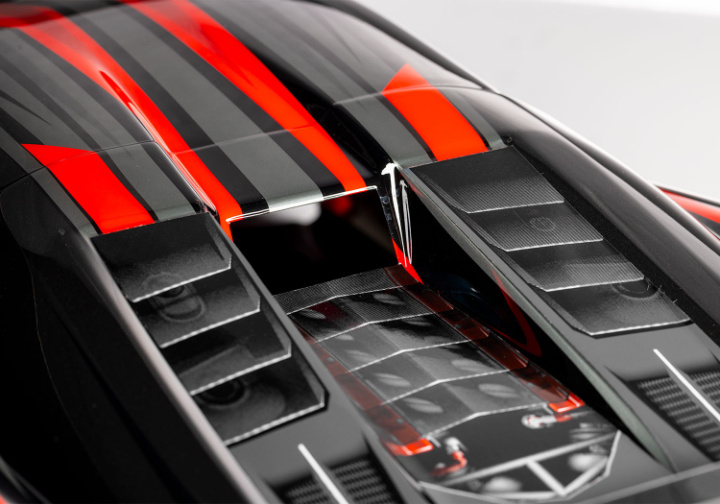

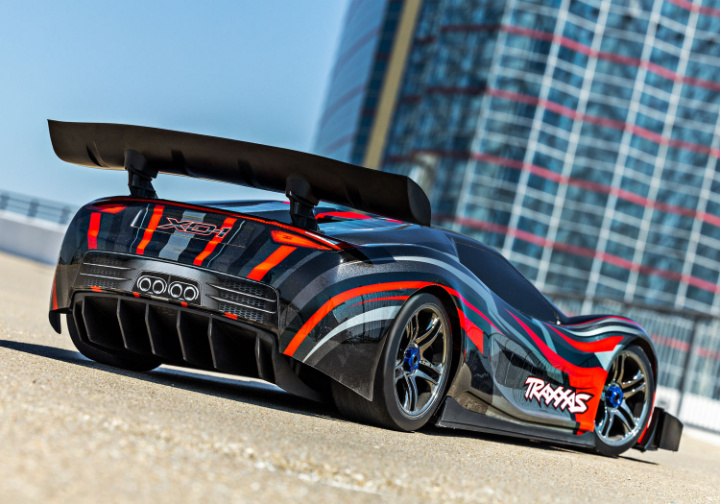

- Rear Body Vent

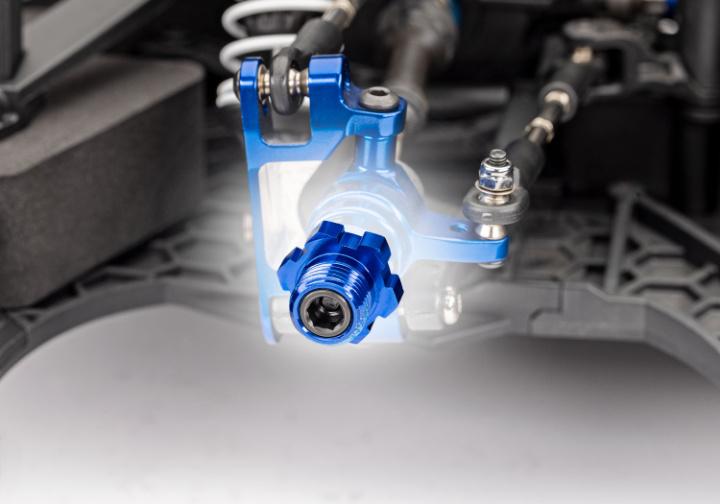

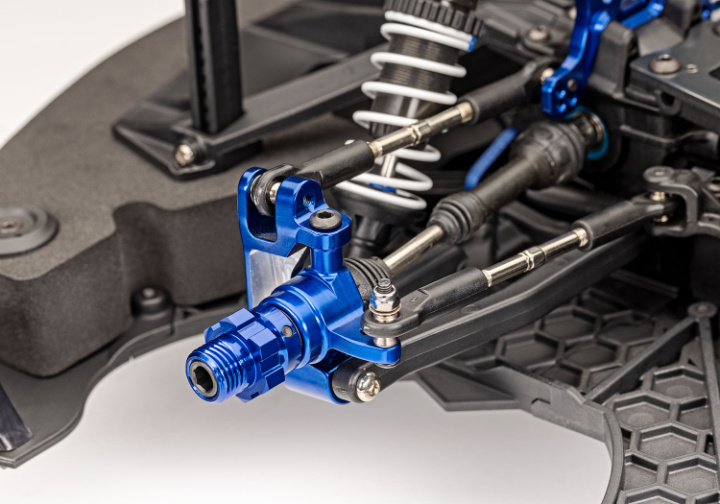

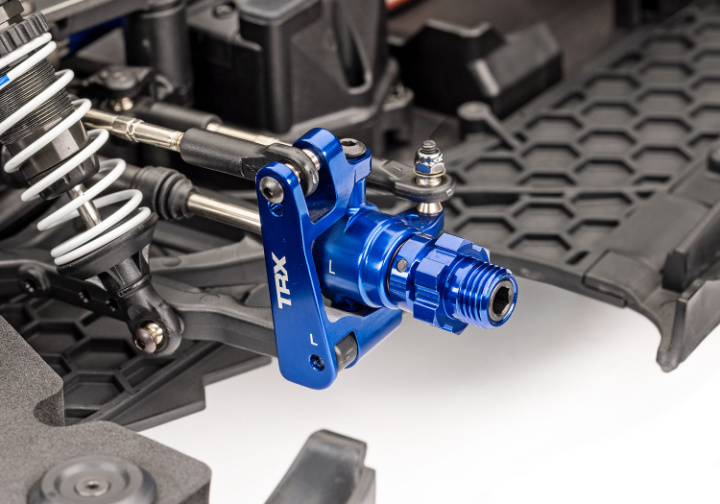

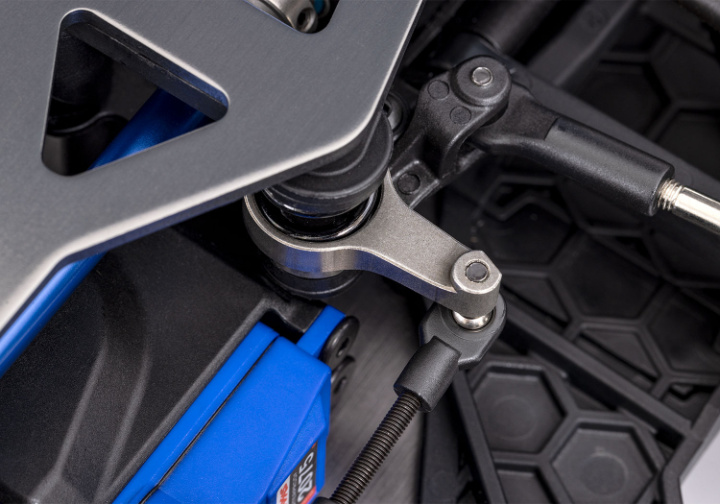

- Steel Steering Arm
- Enhanced Body Control

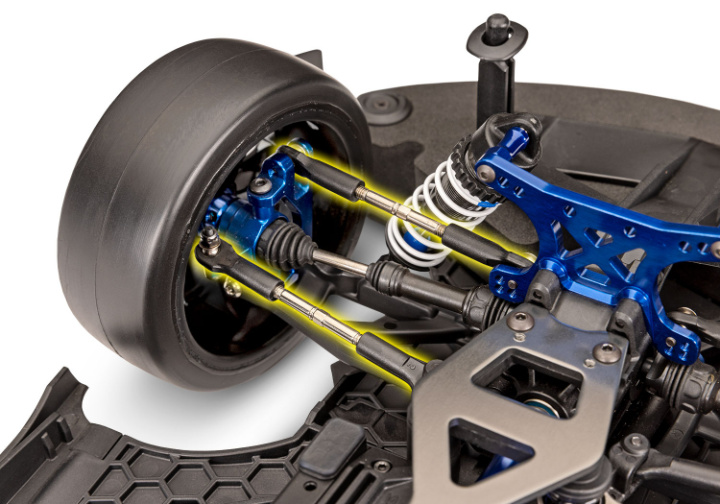

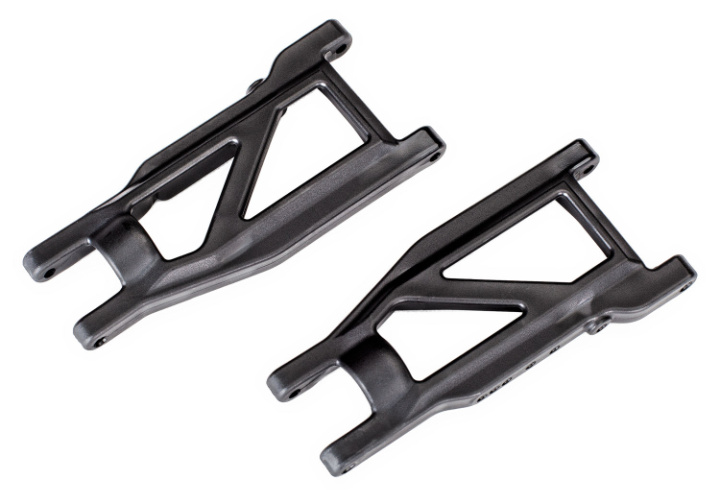

- HD Suspension Arms
From a dead stop, 60mph flashes by in 2.3 seconds. Keep the throttle pegged and you’ll smash the 100mph barrier in 4.92 seconds. Simply put, XO-1 is the fastest and most outrageous Ready-to-Race® RC car ever created. New aero improvements make XO-1 even easier to drive at the limit and more fun than ever before. If you’re looking for the most extreme RC thrill ride ever to hit the pavement, look no further than Traxxas, The Fastest Name in Radio Control®.
XO-1 Vehicle Specs:
- Length: 686mm
- Front Track: 300mm
- Rear Track: 300mm
- Ground Clearance: 15mm
- Weight: 3.9 kg (w/o batteries)
- Width (overall): 329mm
- Height (overall): 127.5mm
- Wheelbase: 404mm
- Shock Length: 83mm front, 86mm rear
- Front Tires (pre-glued): Belted slick 109 x 43mm
- Rear Tires (pre-glued): Belted slick 109 x 51mm
- Wheels (front & rear): 84mm Split-Spoke™ (black-chrome) with 17mm splined hex
- Speed Control: Castle Mamba Monster Extreme forward/reverse/brake
- Motor (electric): Traxxas Big Block Brushless (1650 kV)
- Transmission: Single-speed with Cush Drive™
- Overall Drive Ratio: 9.36 (stock, out-of-box)
- Differential Type: Sealed hardened steel bevel
- Gear Pitch: Module 1.0

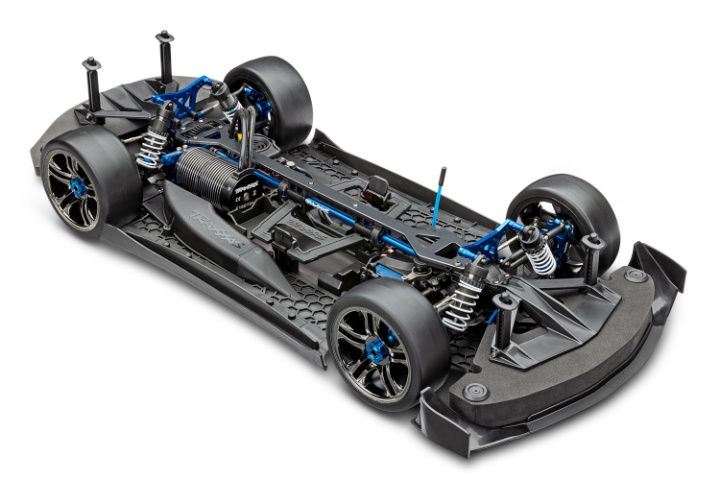

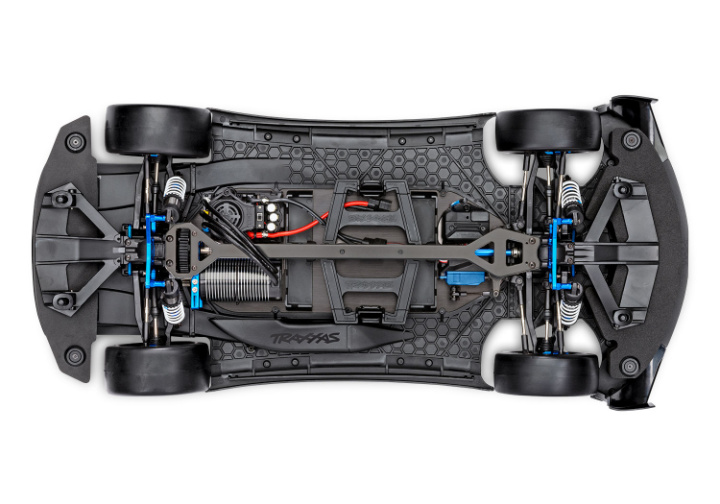

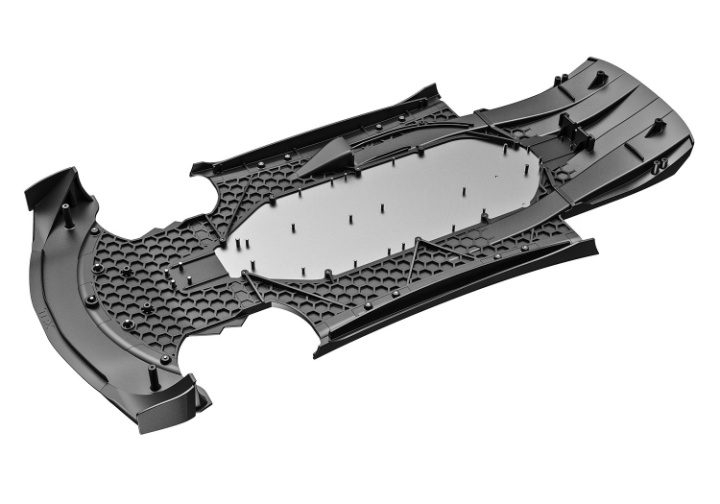

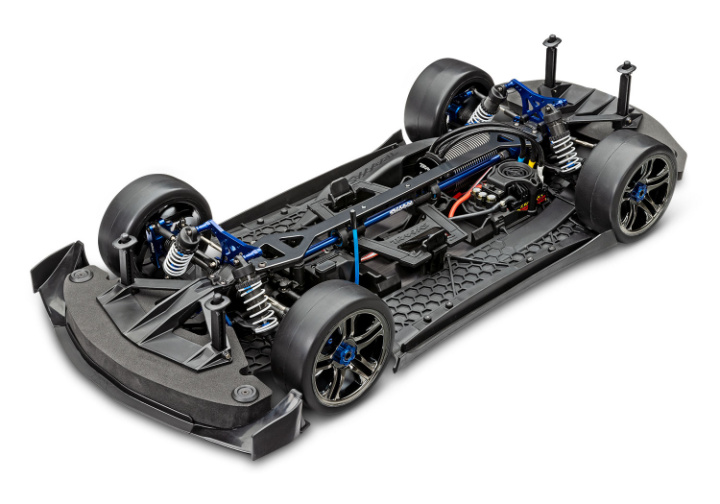

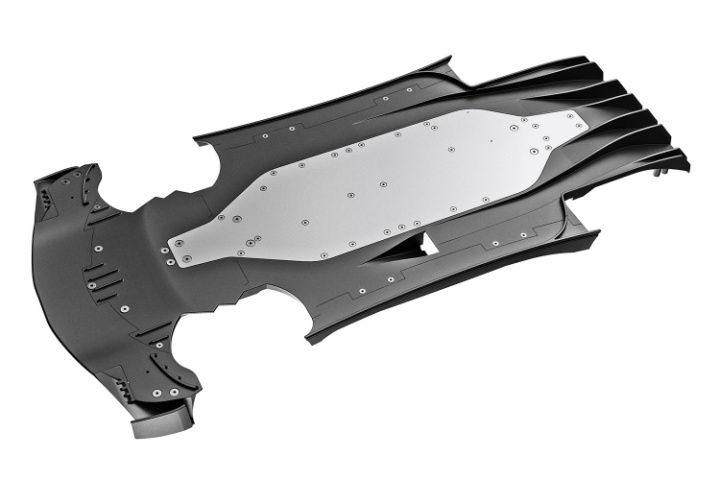

- Chassis Structure/Material: 3mm plate, dual plane, 6061-T6 aluminum
- Brake Type: Electronic
- Drive System: Shaft-Driven 4WD
- Steering: Dual-Bellcrank with steel arm
- Radio System: TQi™ 2.4GHz Radio System with Traxxas Link Wireless Module
- Receiver: TSM® Receiver (#6533)
- Servo: #2075 High Torque Waterproof
- Top Speed: 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
- Skill Level: 10
- Battery Tray Dimensions: 155 x 50 x 29mm (adjustable height and length)
- Required Batteries & Charger: Two Traxxas iD® Power Cell LiPo batteries (LiPo, 3-Cell 5,000 mAh), 4 "AA" (transmitter), Traxxas iD® LiPo Battery Charger
Traxxas Big Block Brushless (1650 kV):
- Type: 1650 kV Sensorless Brushless
- Weight: 665g
- Can Length: 89mm overall length, 85mm can length
- Diameter: 46mm
- Shaft Diameter: 5mm
- Connector Type: Traxxas 6.5mm Bullet
Castle Creations Mamba Monster Extreme ESC:
- Input voltage (cells): 6s LiPo (max: 25.2 volts)
- On-Resistance (@Trans)–FWD/REV: 0.0003 Ohms per phase
- Reverse Delay: Yes, with lockout
- Low Voltage Detection (LVD): Yes, programmable
Specifications subject to change.
What’s In The Box:
- XO-1 Supercar with Mamba Monster Extreme ESC and Traxxas Big Block motor
- TQi™ 2.4GHz radio system with installed Traxxas Link wireless module
- Quick Start Guide
- Optional 34-tooth top speed gear
What You’ll Need:
- Batteries and Charger: XO-1 requires dual 2s or dual 3s LiPo batteries. See full list of compatible batteries. Use the Dual 3s Completer Pack (#2990) for maximum performance and convenience.
- Mobile Device Running Free Traxxas Link App: Get real-time telemetry on your mobile device with the app and unlock top-speed mode for 100+mph performance. See Traxxas Link requirements here.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
